Grayscale Smart Camera, 1280 x 1024 px, 60 fps, 1/1.8 in. CMOS, IMPACT P15

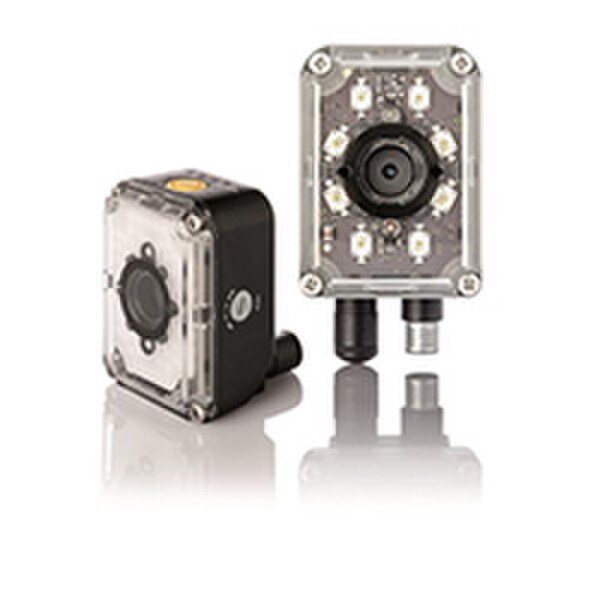

The P-Series is an ultra-compact cost effective smart camera offering advanced machine vision functionalities in a fully embedded stand-alone device. The P-Series is available with gray-scale or color CMOS image sensors with two different resolutions: VGA and 1.3MP. Lenses and illuminators are fully interchangeable and can be mounted and replaced by the user. Five focal lengths and nine lighting options result in 90 different combinations delivering outstanding installation flexibility while offering superior image acquisition capabilities. The P-Series is powered by the IMPACT LITE software package. With more than 25 inspection tools, IMPACT LITE revolutionizes device programming by making the inspection configuration quick and intuitive.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
33 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Grayscale Smart Camera, 1280 x 1024 px, 60 fps, 1/1.8 in. CMOS, IMPACT P15
The P-Series is an ultra-compact cost effective smart camera offering advanced machine vision functionalities in a fully embedded stand-alone device. The P-Series is available with gray-scale or color CMOS image sensors with two different resolutions: VGA and 1.3MP. Lenses and illuminators are fully interchangeable and can be mounted and replaced by the user. Five focal lengths and nine lighting options result in 90 different combinations delivering outstanding installation flexibility while offering superior image acquisition capabilities. The P-Series is powered by the IMPACT LITE software package. With more than 25 inspection tools, IMPACT LITE revolutionizes device programming by making the inspection configuration quick and intuitive.
Features:
- Cost effective compact Smart Camera Series
- Right-angle IP67 rated enclosure with rotating connectors
- VGA (640x480) or 1.3 MP (1280x1024)
- Grey-scale or color CMOS image sensor
- Embedded interchangeable lenses and illuminators
- Built-in digital I/Os, Serial and Ethernet interfaces
| Technical Specifications | |
|---|---|
| RAM | 256 MB |
| Storage | 256 MB |
| Software | P16 Lite |
| Model | 937700001 |
| Frame rate | 120 |
| Material | Aluminium, Plastic protective window cover |
| Type | Smart Camera |
| Manufacturer | Datalogic |
| Operating Temperature Range | 0 to 50 °C (32 to 122 °F) |
| SKU | 937700001 |
| Dimensions | 95 x 54 x 43 mm |
| CPU | 663 MHz DSP |
| Pixel Size | 5.3 um |
| Imager Size | 1/4 in. CMOS |
| Power supply | 10 - 30 VDC |
| Series | P1x |
| Resolution | VGA, 640 x 480 px |
| MPN | 937700001 |
| Features & Benefits | |
| Fully integrated ultra-compact device | |
| Rotating connectors for 0°& 90° form factor | |
| Rugged IP67 rated housing | |
| VGA and 1.3 megapixel resolutions | |
| Fully integrated ultra-compact device,Rotating connectors for 0°& 90° form factor,Rugged IP67 rated housing,VGA and 1.3 megapixel resolutions | |
