959965003 | Grayscale Smart Camera, T49, 2448 x 2048, 15 fps, 2/3 in.
Overview

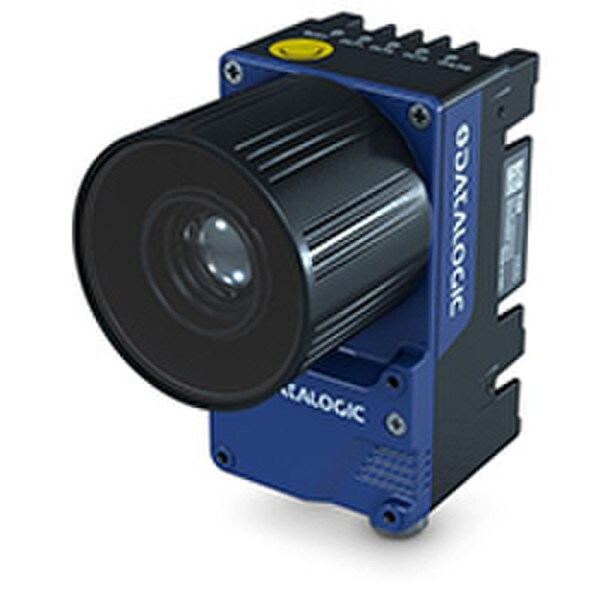

Datalogic 959965003
Camera, IMPACT T49, Grayscale, 2448 x 2050, 15 FPS, 2/3?ö CCD
The new T4x-Series smart camera provides customers with outstanding performance in an industrialized and compact package. Equipped with a powerful 1.1 GHz processor, the T4x-Series performance is exceptional in value and functionality. The T-Series comes in 3 different camera resolutions, VGA, 2 Mega-Pixel and 5 Mega-Pixel all in a sealed, industrially hardened enclosure for maximum protection. Combined with Impact software, the new generation T-series delivers the most rugged and versatile smart camera solution in the market today.
Features:- High performance Smart Camera series
- Right-angle IP67 rated enclosure
- Up to 5Mpix grey-scale imager
- Built-in digital I/Os and Serial interface
- Gbit Ethernet Port
Features & Benefits
- IP67 Rated Enclosure with sealed connectors
- Three High Quality CCD Resolution Sensor Options
- Complete Impact software toolset for ultimate programming flexibility
- Can be run with or without an operator interface
Technical Specifications
SKU: 959965003-datalogic
RAM
512 MB
Storage
256 MB Flash
Software
T49
Model
959965003
Frame rate
15
Type
Smart Camera
Manufacturer
Datalogic
Operating Temperature Range
0 to 50 °C (32 to 122 °F)
Permissible relative humidity (%)
0 to 90%
SKU
959965003
Dimensions
123 x 65 x 101 mm
CPU
1.1 GHz TI Da Vinci
Pixel Size
3.4 um
Imager Size
2/3 in.
Power supply
10 - 30 VDC
Series
T
Resolution
2448 x 2048 CCD
Technical Documents
T4x Series Hardware Guide (PDF)
Impact Machine Vision Documentation (ZIP)- Impact Software GAMP Compliance Guide (PDF)
- Impact Hardware and Software FDA Title 21 CFR Part 11 Compliance Guide (PDF)
- Machine Vision Reference Guide (PDF)
- T4x Series Smart Camera Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
