EOX 6302-1540 CO2 System | EOX CO2 MARKER 30W F200 lens 140mm x 140mm
Extremely reliable, Datalogic EOX family offers high quality permanent marking on a widest range of material. Its configuration offers extreme flexibility for the integration both in production line as well as in stand-alone systems. EOX embedded controller and the advanced features of its marking platform, EOX offers permanent coding and marking opportunity in a variety of applications. The eox is available at 10 W and 30 W
- Free UPS Ground over $999.99
- Factory-authorized service
Details
Product information
Overview

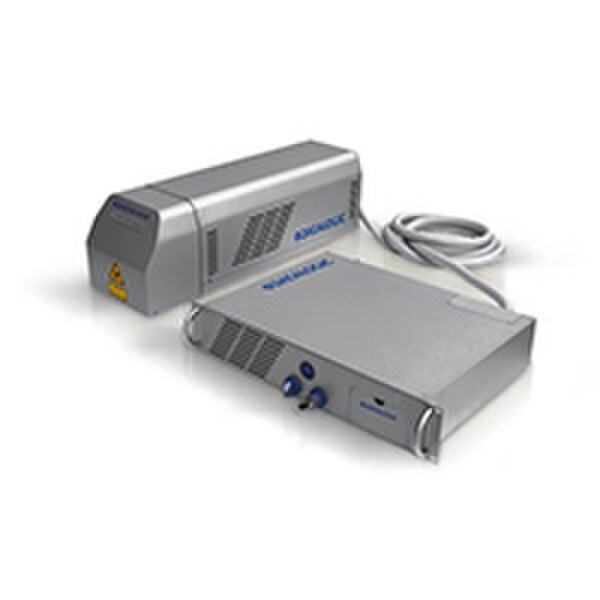

Datalogic 985140012 | EOX 6302-1540 CO2 System
EOX CO2 MARKER 30W F200 lens 140mm x 140mm
Extremely reliable, Datalogic EOX family offers high quality permanent marking on a widest range of material. Its configuration offers extreme flexibility for the integration both in production line as well as in stand-alone systems. EOX embedded controller and the advanced features of its marking platform, EOX offers permanent coding and marking opportunity in a variety of applications. The eox is available at 10 W and 30 W
Features:
- Flexible configuration and application
- Easy to install and integrate
- Advance embedded controller
- State of the art marking platform
Datalogic EOX family marks a wide range of objects and materials: paper, cardboard, textiles, other organic and painted/coated materials
EOX laser sources allow Datalogic Automation to offer unmatched permanent clean marking in new market segments, where it can even compete with the traditional ink jet solution in terms of ROI and performance"
| Technical Specifications | |
|---|---|
| Laser Source | CLASS 4, CO2 sealed laser tube |
| Integration | Up to 4 mechanical axis driving capabilities (stepper motor), Up to 10 digital inputs and 10 digital output fully programmable, 1 dedicated connector for dual line high resolution encoder and 1 dedicated connector for photocell |
| Aiming & Focus Beam | 3mW @ 635 nm |
| Model | EOX 6302-1540 CO2 System |
| Nominal Power | 30W |
| Manufacturer | Datalogic |
| Warranty | 2 Year Warranty |
| Temperature Range | 15°C to 35°C |
| SKU | 985140012 |
| Dimensions | Resonator: 180 x 185 x 634 mm, Rack: 437 x 94 x 333 mm |
| Power supply | 100 - 240 VAC, 50-60 Hz |
| Weight (lbs) | 52.90 |
| Wavelength | 10.6 ?m |
| MPN | EOX 6302-1540 CO2 System |
