986101010 | UNIQ 1150-1340 Fiber IR System | UniQ 15W@1064 with F160S-M39 100mmx100mm
Overview
Datalogic 986101010 | UNIQ 1150-1340 Fiber IR System
UniQ 15W@1064 with F160S-M39 100mmx100mm

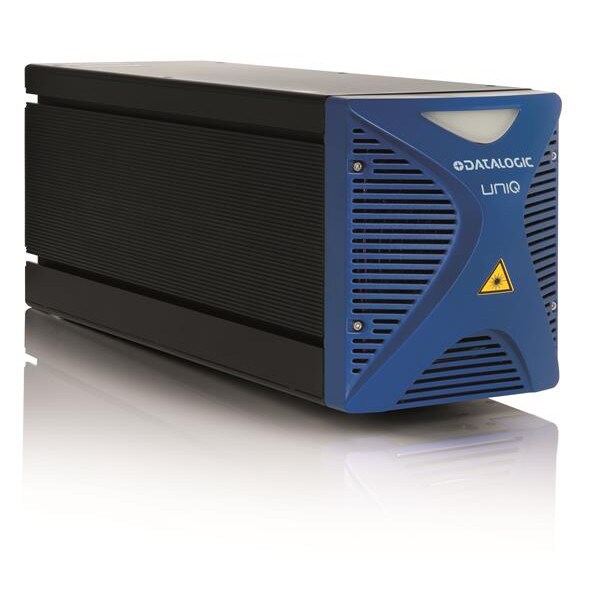

UniQ™ is the first ultra-compact "ALL-IN-ONE" laser marking system based on fiber laser technology. Thanks to compact dimensions, the rugged IP54 grade housing, the complete absence of an external controller and fiber optic delivery cable, UniQ™ laser markers are really unique.
With 15W of optical laser power, the UniQ™ laser marker offers flexibility in marking on a wide spectrum of materials. The ultra-compact design and the high efficiency, low noise, cooling system allows for easy integration even in tight spaces and complex environments. UniQ™ laser markers are powered by the latest version of Ligher, Datalogic?Æs laser marking software suite, and offer maximum customer ease of use and great flexibility in system integration.
Features:- High reliability Full Fiber Laser Technology
- Ultra compact, "ALL-IN-ONE" design: No external controller or power supply needed
- Rugged IP54 rated housing
- Compatible with market standard M39 and M85 f-theta lenses
- DLA?Æs Standard I/O interface
- No fiber delivery constrains, no fiber length or bending radius limitations
Technical Specifications
Technical Documents
Datalogic UNIQ Series User Manual (PDF)- Datalogic UNIQ Series Brochure (PDF)
- Datalogic Laser Marking Reference Guide (PDF)
- Datalogic Lighter Laser Editor (PDF)
