141910/110 | ACC2210 | Inline Electric Screwdriver, 1.8 - 8.9 in lbs, 950 rpm
Overview

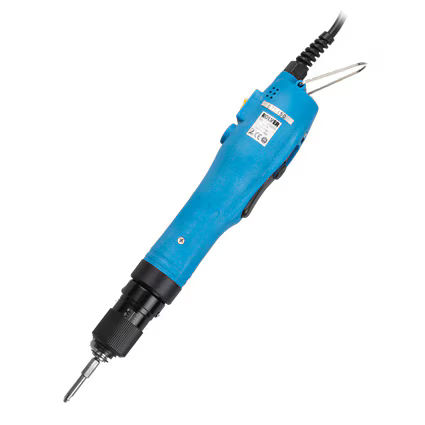

Introducing the Kolver ACC2210 Inline Electric Screwdriver, a compact and versatile tool designed to streamline your assembly processes. This electric screwdriver combines precision, power, and ease of use, making it an indispensable addition to any assembly line.
- Min Torque(In Lb: 1.8)
- Max Torque(In Lb: 8.9)
- Speed(RPM): 950
- Voltage: 230V
- Special Features: Auto Shut Off
- Manufacturer: Kolver
Features & Benefits
- Inline Configuration: The ACC2210 features an inline design, providing improved balance and control during fastening applications. Its sleek profile allows for access to tight spaces and hard-to-reach areas, making it ideal for intricate assembly tasks.
- Selectable Start Modes: The screwdriver offers two start modes - push to start and push and lever start - allowing operators to choose the preferred method based on their comfort and task requirements.
- Portability: The lightweight and compact design of this electric screwdriver makes it highly portable, enabling operators to move it easily between workstations or carry it to remote assembly sites.
- Mechanical Clutch: Equipped with a reliable mechanical clutch, the ACC2210 ensures accurate torque control, preventing overtightening and damage to fasteners.
Technical Specifications
Min Torque - In Lbs
1.8
Max Torque - In Lbs
8.9
Min Torque - Nm
0.2
Max Torque - Nm
1
Start Type
Lever or Push
Clutch Type
Auto Shut Off
Style
Inline
Drive Size
1/4'' hex
Free Speed - rpm
950
Voltage
230V
Type
Electric Screwdriver
Technical Documents
Kolver ACC Series Screwdrivers Brochure (PDF)- Kolver ACC Series Screwdrivers Manual (PDF)
- Kolver Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the ACC2210?
What type of application is the ACC2210 best suited for?
Electric Screwdrivers like the ACC2210, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ACC2210 is an Inline model with a Auto Shut Off clutch.
How do I set the torque on the ACC2210?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the ACC2210 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
