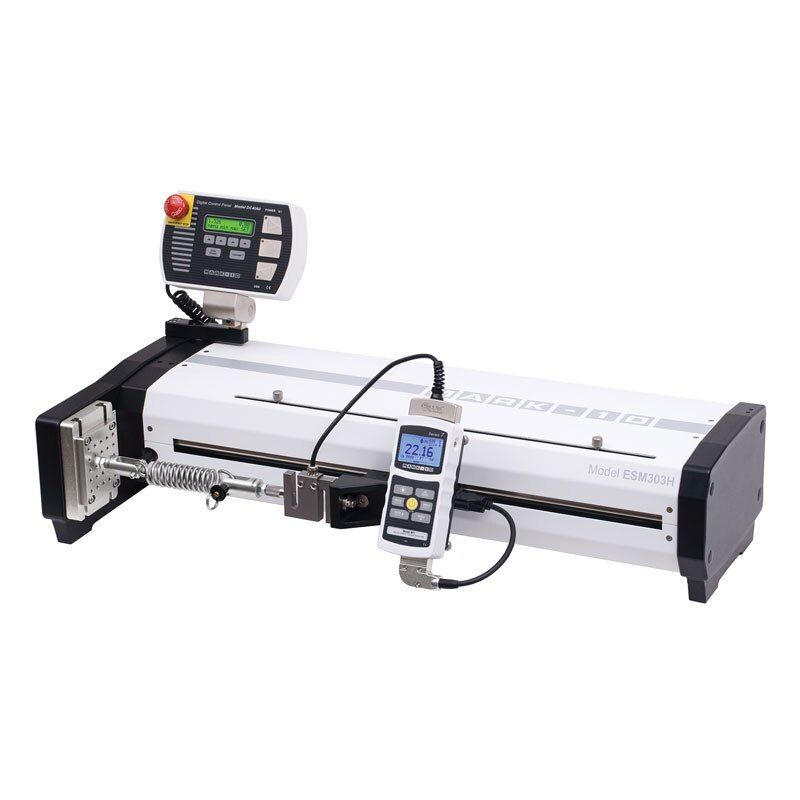

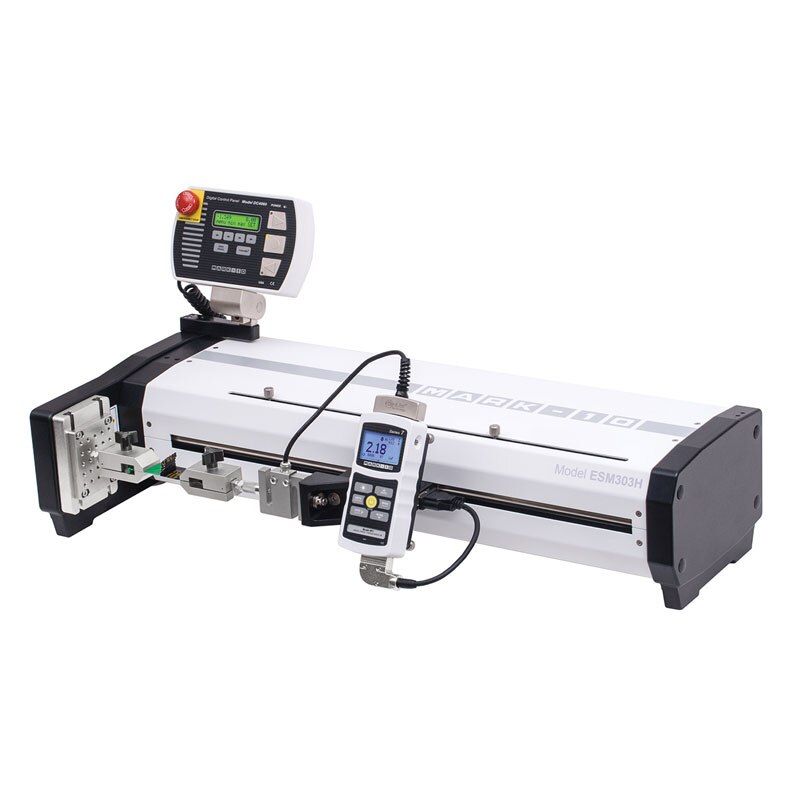

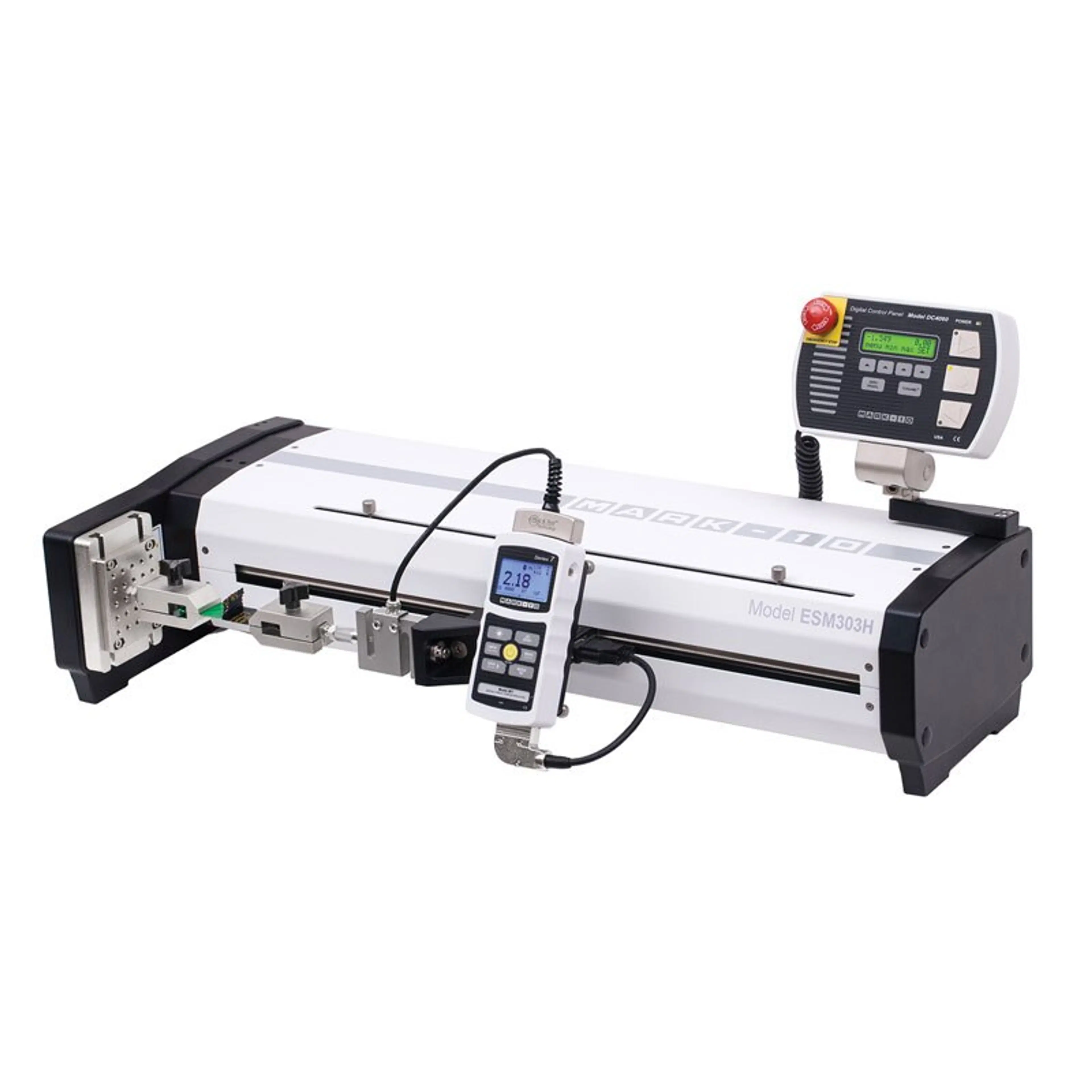

ESM303H Test Stand with all options

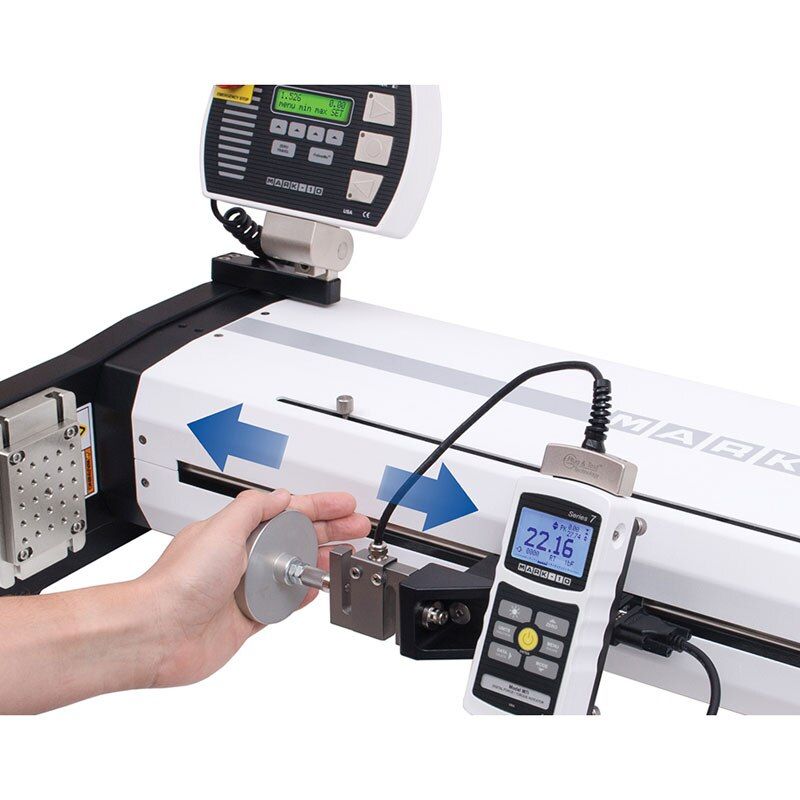

The ESM303H is a highly configurable horizontal force tester for tension and compression measurement applications up to 300 lbF [1.5 kN], with a rugged design suitable for laboratory and production environments. Sample setup and fine positioning are a breeze with available FollowMe™ force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.

With generous travel, clearance, and depth dimensions, a wide range of tests can be performed, including break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more. Satisfy various test methods through an easy-to-use menu, allowing the configuration of test speed, force and distance limits, cycling, preload, and many other functions, all protected by a password. Save up to 50 profiles to accommodate a range of test methods.

When the ESM303HÂ’s clearance is insufficient for the application, its modular mechanical design allows for frame extensions. Modularity extends to the controller functions as well. Individual functions, such as travel measurement, cycling, loadholding, etc., may be purchased either upfront or enabled in the field through an activation code. This a-la-carte platform allows for custom configuration as appropriate for the application and budget.

The ESM303H is designed for use with a load cell and indicator. Force and travel data can be output to a PC for graphing and analysis using MESUR™ gauge software. Or, fully control the stand by a PC through a custom-written program with ASCII communication.

Standard Features:
• Selectable speed setting
• Right and left travel limit switches
• Adjustable, removable control panel may be mounted to the left or right end of the frame
• Password protection of test parameters
• Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
• USB output of force or force vs. travel
• Compact footprint, suitable for crowded workbenches
• Ergonomic design, with smart, clean cable management
• Integrated electronics assembly, easily removed and transported for service
• Adjustable mounting plate with T-slot base

Included Options and Accessories:
• FollowMe™ option
• Travel measurement option
• PC control option
• Travel limits option
• Overload protection option
• Auto return option
• Cycling / dwell time option
• Independent right/left speeds option
• Low speed extension option
• High speed extension option
• Break detection option
• Load holding option
• Preload option
• Profiles option
• 09-1252 interface cable
• 09-1158 USB cable.
*Requires a Model M7i or M5i indicator.
