AIMCO ASB-5C | Tool Balancer

Rating:
(0)No Reviews yet
Call for Price
AIMCO

Details

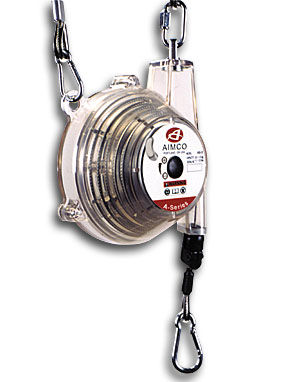

AIMCO URYU ASB-5C

Tool Balancer


  • Extended Cable Length: AT 7.2 ft., the ASB-3C and ASB-5C stainless steel cables allow for extended reach on applications. The ASB-0C has a cable length of 4.26 ft.
  • Built-in Safety Features: The cable, drum and containerized spring are fully visible without opening the unit for easy and convenient safety checks. The sturdier spiral spring is enclosed for greater control and safety.
  • Ergonomic Spring Release: The automatic safety lock provides extra control while adjusting the cable.
  • Durable Cable: Stainless steel wire cable will not shed with wear. Plastic coated cables can shed their coating with wear and, therefore, cannot be used in many electronic applications.
  • Enhanced Gear Mechanism: Allows for more exact adjustment of tension.
  • No Recoil and Low Resistance: Tapered drum style provides gravity-defying tool positioning and low travel.
  • Compact Design Saves Space
  • Adjustable Cable Stops
  • Additional Features: 360-degree upper swivel, tool clip and safety chain provision.

Â

Specifications: Model No: ASB-5C Body Dia - in: 7.3 Body Dia - mm: 184 Body Width - in: 4.7 Body Width - mm: 119 Stroke - in: 86.4 Stroke - m: 2194 Weight - kg: 1.5 Weight - lbs: 3.4 Weight Capacity - kg: 2.5-5.0 Weight Capacity - lbs: 5.5-11.0

Built-in Safety Features mean that the cable, drum, and enclosed spring are fully visible without opening the unit for easy and convenient safety checks. The sturdy spiral spring is enclosed for greater control and safety

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Automatic safety lock provides extra control
  • Stainless steel cables allow for extended reach on applications
  • No Recoil and Low Resistance
  • Enhanced Gear Mechanism allows for more exact adjustment of tension

Technical Information

Technical Specifications

Technical Specifications

SKU: ASB-5C-aimco
Manufacturer AIMCO
Model ASB-5C
Stock CodeC
Capacity (lbs) 5.5 - 11
Lift (ft) 7.2
Max Rated Capacity (Lbs) 11
Series A
Type Spring Balancer
Weight3.4 lbs
