AIMCO AUET/MTM-10-100 | 1.0 - 100.0 In Lb Torque Tester

$3,428.91
AIMCO

Details

Introducing the AIMCO AUET/MTM-10-100 Torque Tester, a versatile and precise tool designed to verify torque settings and repeatability of hand tools, power tools, and pulse tools. With its wide torque range of 1.0 - 100.0 In Lb, this tester offers exceptional flexibility for various applications.

  • Torque Range: 1.0 - 100.0 In Lb
  • Number of Transducers: 2
  • Transducer Range: 100 in-oz to 1600 in-lbs
  • Accuracy: +/-0.5%
  • Power Supply: AC power or NiMh batteries

Elevate your torque testing capabilities with the AIMCO AUET/MTM-10-100 Torque Tester. Its versatility, accuracy, and user-friendly features make it an indispensable tool for verifying the performance of various torque tools. Invest in this reliable torque tester and experience peace of mind knowing that your tools are delivering precise and repeatable torque values.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • Adjustable Auto-Clear Feature: The AUET/MTM-10-100 Torque Tester comes with an adjustable auto-clear feature, allowing users to conveniently reset the tool after each test, streamlining the testing process.
  • Keylock Security: The tester is equipped with a keylock security feature that prevents unauthorized programming changes, ensuring the accuracy and integrity of test results.
  • Multiple Transducer Models: The AUET/MTM-10-100 Torque Tester is available with any combination of two standard transducers from 100 in-oz to 1600 in-lbs, providing users with the flexibility to choose the most suitable transducer for their application.
  • Data Output: The tester provides data output to computers or serial printers via serial communication, enabling users to easily transfer and analyze test data.
  • External Transducer Port: The MTM models of the tester are supplied with an external transducer port, allowing users to connect additional transducers for expanded testing capabilities.

Technical Information

Technical Specifications

Technical Specifications

SKU: AUET/MTM-10-100-aimco
Manufacturer AIMCO
Model AUET/MTM-10-100
Stock CodeC
Series AUET/MTM
Torque Range (Ft Lbs) - 8
Torque Range (In Lbs) 1.0 - 100
Torque Range (Nm) 1.3 - 11.3
Type Electronic Torque Tester
Weight5 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Videos & Media

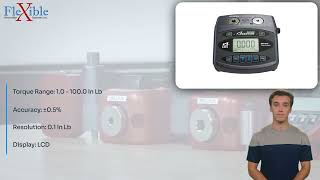

introducing the aimco auet/mtm-10-100 torque tester, a versatile and precise tool designed to verify torque settings and repeatability of hand tools, power tools, and pulse tools. with its wide torque range of 1.0 - 100.0 in lb, this tester is ideal for various applications in assembly and manufacturing industries. the auet/mtm-10-100 torque tester comes with an adjustable auto-clear function, allowing users to conveniently reset the tool after each test, streamlining the testing process. to prevent unauthorized programming changes, the tester is equipped with a keylock security feature, ensuring the integrity and accuracy of test results. the tester provides data output to computers or serial printers via serial communication, enabling users to easily transfer and analyze test data. the auet/mtm-10-100 torque tester is available with various transducer models, allowing users to select the most suitable transducer for their specific testing needs. the mtm models of the tester are equipped with an external transducer port, providing added flexibility for connecting additional transducers. with a torque range of 1.0 - 100.0 in lb, accuracy of 0.5%, resolution of 0.1 in lb, and an lcd display, this tester offers precise and reliable measurements. the aimco auet/mtm-10-100 torque tester is powered by ac power or nimh batteries and operates within a temperature range of 50°f to 104°f (10°c to 40°c). it measures 11.3" x 8" x 1.3" (287mm x 203mm x 33mm) and weighs 2.2 lbs (1 kg). invest in the auet/mtm-10-100 torque tester and experience precise and efficient torque testing.

Frequently Asked Questions

Learn more about our products

01What is the torque range for the AUET/MTM-10-100?

The AUET/MTM-10-100 has a torque range from 1 to 100 in lbs (1.3 - 11.3 Nm).

02What type of application is the AUET/MTM-10-100 best suited for?

03What is the accuracy or repeatability of the AUET/MTM-10-100 Torque Tester?

04What Modes does the AUET/MTM-10-100 have?

05How often does the AUET/MTM-10-100 need to be calibrated?
