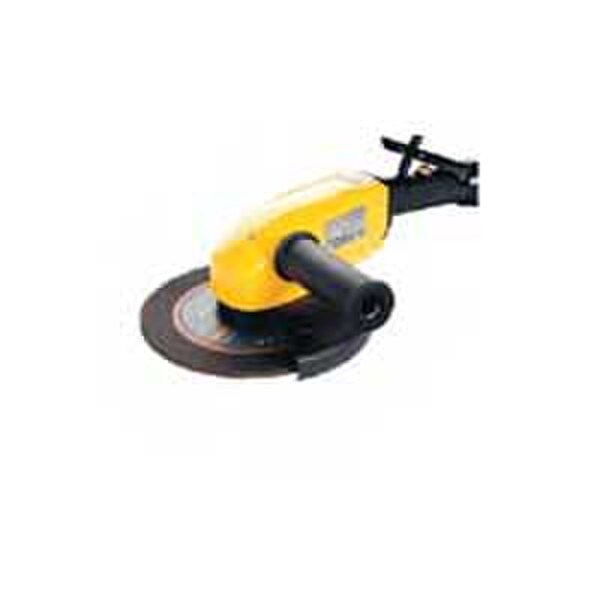

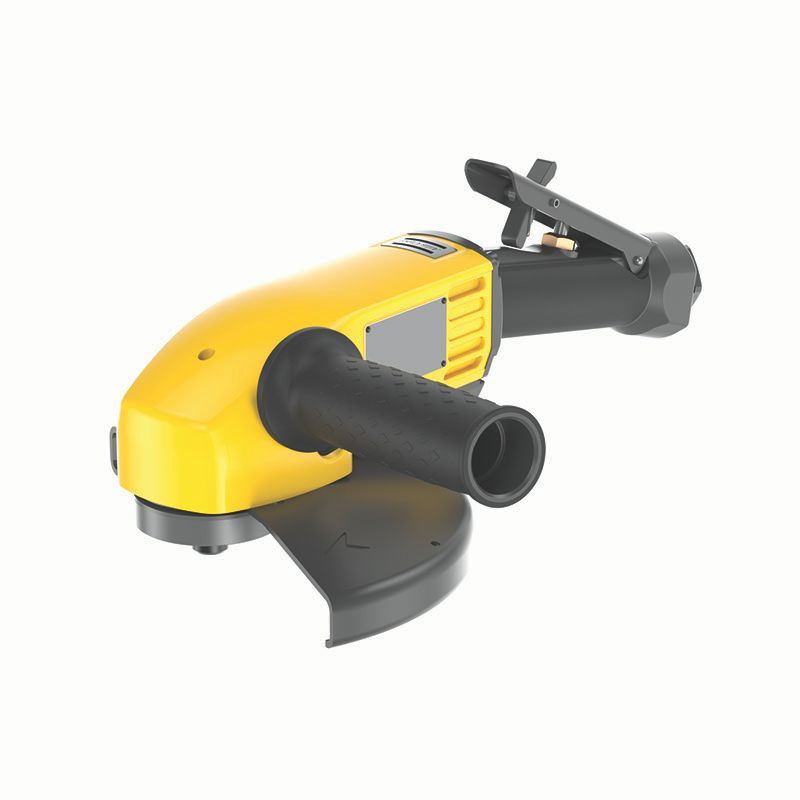

8423 0132 06 | Atlas Copco Angle grinder, 2.5 hp, 8500 rpm

(0)No Reviews yet

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Atlas Copco 8423 0132 06

Atlas Copco Angle Grinder, 2.5 Hp, 8500 Rpm

Max Ouput (hp): 2.5
Free Speed (RPM): 8500
Weight (lbs): 5.9
Max Air Consumption (cfm): 76
Air Inlet (NPT): 1/2
Application: For use in factory processing atmospheres.
Back

Technical Specifications

SKU: 8423 0132 06
airinletthreadbsp
1/2 in
height
91 mm
heightoverspindle
75 mm
length
316 mm
maxwheeldia
180 mm
rechosesize
16 mm
spindlelength
13 mm
spindlethread
M14
weight
5.9 lb
supporthandleincluded
Yes
autobalancer
Yes
modeltype
Angle
motortype
Vane
maxfreespeed
8500 r/min
airconsumptionatfreespeed
17 l/s
airconsumptionatmaxoutput
36 l/s
maxworkingpressure
100 psig
soundpower
100 dB(A)
soundpressure
89 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-1
vibrationuncertainty
0.9 m/s²
vibrationvalue
3.9 m/s²
eaccertified
Yes
eulegislation
2006/42/EC
eustandard
ISO11148-7
ukregulations
S.I. 2008/1597
ukstandard
ISO11148-7
lubricationfree
Yes
maxoutput
1.9 kW
