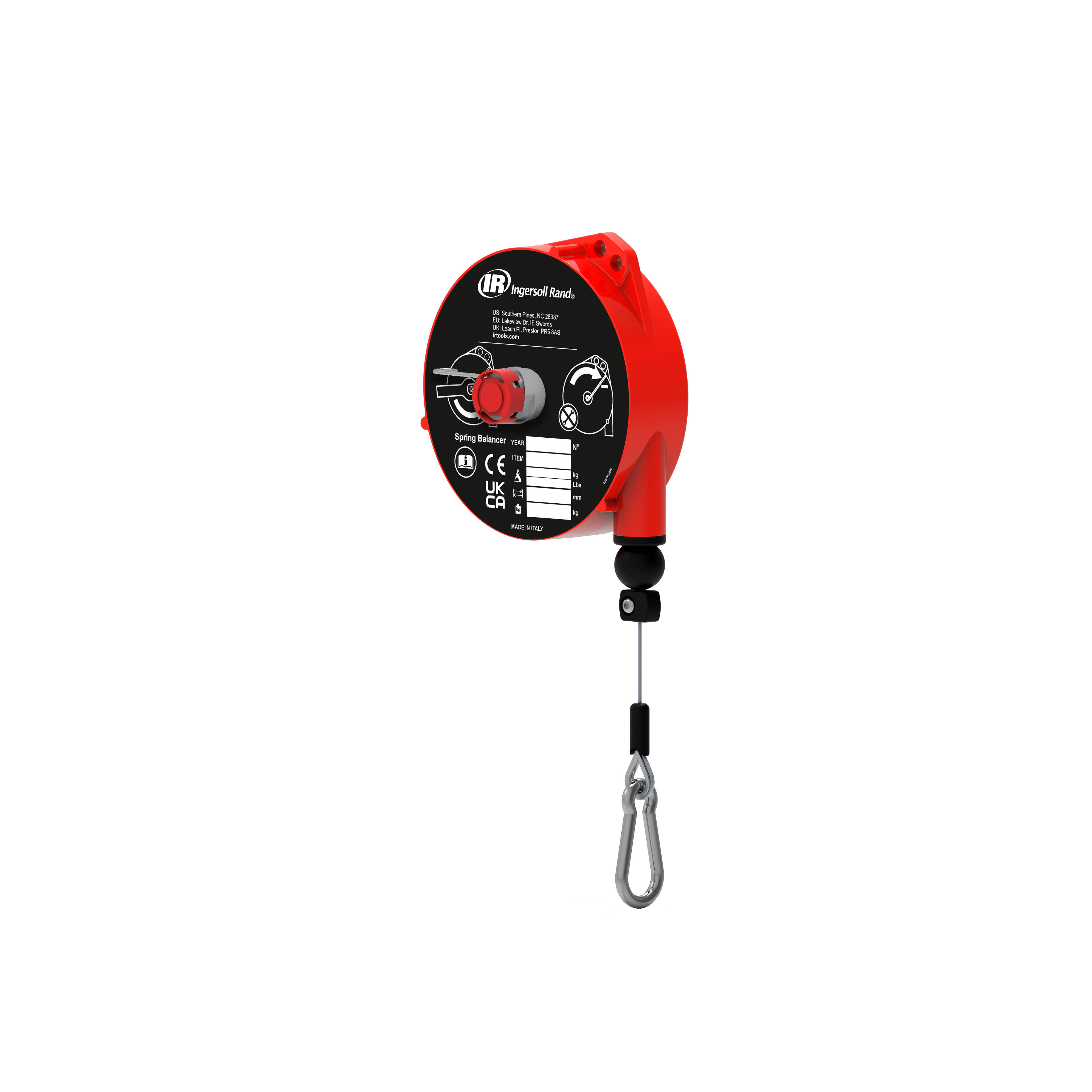

BMDLN-8 | Spring Cable Balancer, 13.2-17.6 lb Capacity, 8.2 ft. Lift
Overview
B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort.
Features & Benefits
- Rugged construction, cast aluminum body
- Stainless steel cable and anti-friction cable guide
- Adjustable stroke limiting device
- Adjustable capacity
- Upper suspension shackle included on balancer for ease of installation
- Axial Mounting Circlip to ensure greater durability
- Anti-reverse spanner adjustable bushing to protect the balancer from potential damages caused by an incorrect spring unloading
- Safety Cap added to the front of the balancer for greater durability by absorbing impact while in motion
- Safety device against load dropping due to the spring breakage
Technical Specifications
Model
BMDLN-8
MAX RATED CAPACITY (LBS)
17.6
Type
Medium-Duty Long Cable Balancer
Manufacturer
Ingersoll Rand
SKU
BMDLN-8
Stock Code
3
Travel (Ft)
8.2
UPC
00663023084671
Weight (lbs)
7.7
Series
BMDL
Capacity (lbs)
17.6
Lift (ft)
8.2
