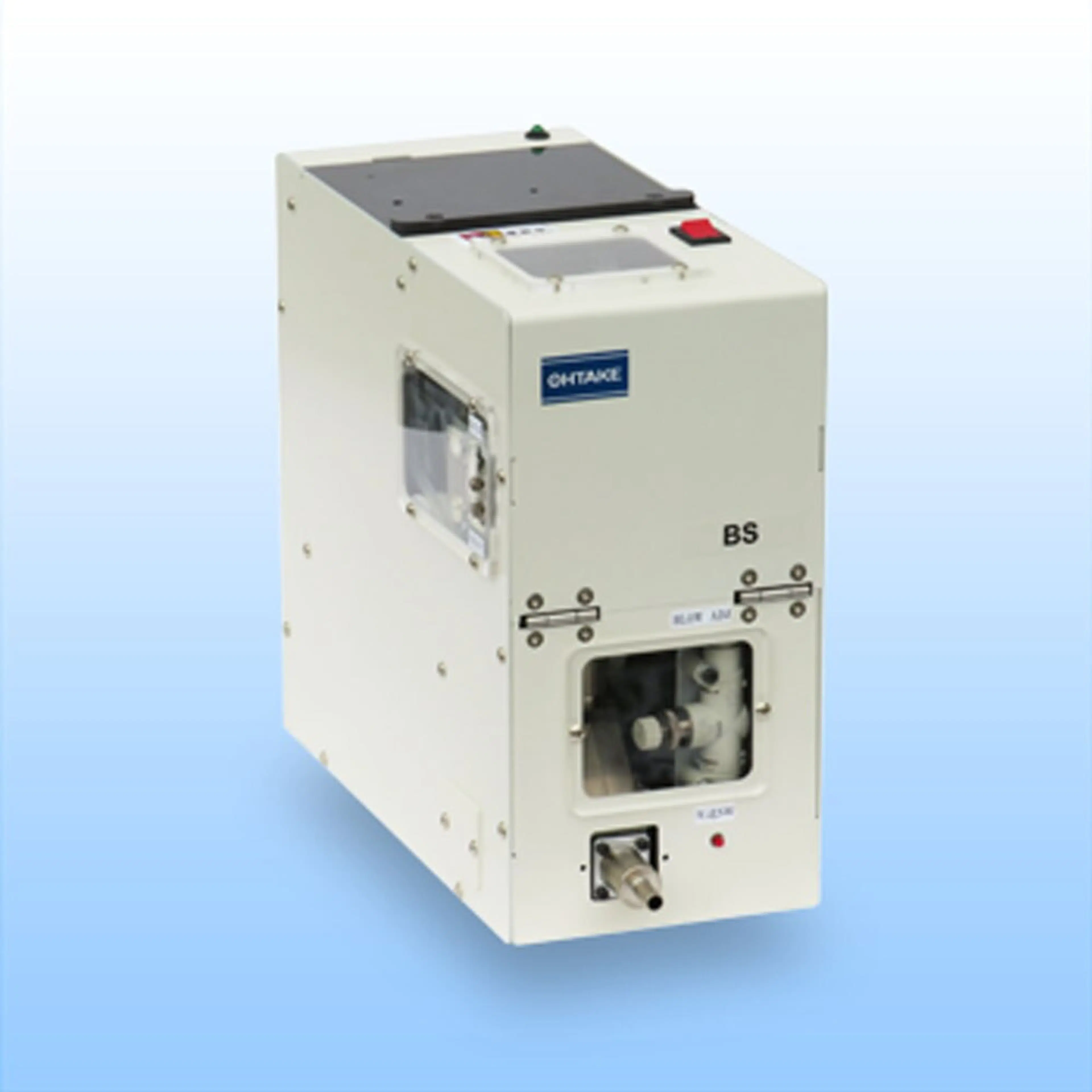

BS-CL26 | Automatic Pneumatic Screw Feeder for M2 - M6x2.6mm screws, 1300cc
Overview
Introducing the Ohtake BS-CL26 Automatic Pneumatic Screw Feeder, a revolutionary solution for efficient screw feeding in assembly lines. This advanced screw feeder is designed to provide precise screw counting and efficient pneumatic operation, enhancing productivity and reducing manual labor.
- Screw Size Range: M2 - M6x2.6mm
- Hopper Capacity: 1300cc
- Manufacturer: Ohtake
Features & Benefits
- Precise Screw Counting: The BS-CL26 screw feeder ensures accurate screw counting for manual applications, eliminating the risk of incorrect screw counts and ensuring consistent assembly quality.
- Easily Accessible Counter Panel: The conveniently positioned counter panel allows for easy monitoring and adjustment of screw counts, providing greater control over the assembly process.
- Applicable for Steel Screws: The BS-CL26 screw feeder is specifically designed for steel screws, making it ideal for a wide range of assembly applications.
- Pneumatic Mechanism for Efficient Feeding: Equipped with a powerful pneumatic mechanism, this screw feeder delivers fast and reliable screw feeding, significantly improving cycle times and optimizing production efficiency.
Technical Specifications
Type
Automatic Pneumatic Screw Feeder
Screw Diameter - mm
2.6
Screw Size - mm
M2 - M6
Max Screw Length - mm
25
Capacity - cc
1300
Dimensions - mm
169 x 436 x 270
Power Supply
AC100 - 240V DC15V
Weight - kg
10
Technical Documents
Ohtake Screw Presenters Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
