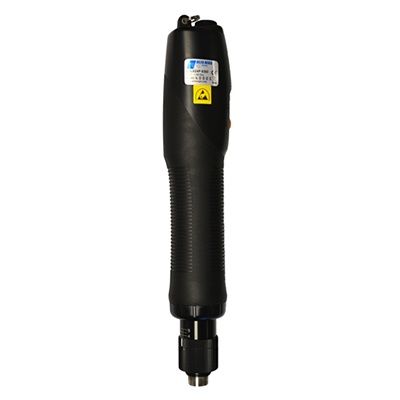

CESL827BP-ESD | Inline Brushless Electric Screwdriver, 8.7 - 26 in lbs, 1/4'' hex, 1200 rpm, ESD, Push-to-Start
Overview
Introducing the Delta Regis CESL827BP-ESD Inline Brushless Electric Screwdriver, a premium assembly tool designed to redefine precision, performance, and environmental cleanliness. This state-of-the-art screwdriver combines ergonomic excellence with advanced features, making it an indispensable asset for various fastening applications.
- Min Torque(In Lb): 8.7
- Max Torque(In Lb): 26
- Weight(Lbs): 0.98
- Length(In): 2.94
- Drive Size: 1/4'' hex
- Free Speed(RPM): 1200
Requires external power controller BECT820N sold separately.
Features & Benefits
- Precise Torque Control: Experience unparalleled accuracy with the screwdriver's precise torque control. It ensures consistent and reliable fastening results, meeting the demands of even the most stringent assembly requirements.
- Quiet and Clean Operation: The brushless DC motor eliminates carbon dust generation, ensuring a cleaner work environment. Its low power consumption keeps the tool cool, even during demanding applications.
- CE/RoHS Compliant: Rest assured that the screwdriver complies with CE and RoHS standards, guaranteeing safety, quality, and environmental responsibility.
- Compact and Maneuverable: The screwdriver's compact body design offers exceptional maneuverability, reducing operator fatigue and enhancing productivity. It allows access to tight spaces, making it ideal for intricate assembly tasks.
Technical Specifications
SKU: CESL827BP-ESD
Model
CESL827BP-ESD
Type
Electric Screwdriver
Drive size
1/4'' hex
Manufacturer
Delta Regis
Controller
BECT820N
Motor Type
Brushless
Length (mm)
278
Length (In)
10.9
Free Speed (RPM)
1200
SKU
CESL827BP-ESD
Start Type
Push-to-Start
Power Source
BECT820N
Style
Inline
Clutch Type
Auto Shut Off
Min Torque (In Lb)
8.7
Max Torque (In Lb)
26
Min Torque (Nm)
0.98
Max Torque (Nm)
2.94
ESD Compliant
Yes
Power supply
BECT820N
Max Free Speed (rpm)
1200
Weight (lbs)
1.8
Series
CESL8
Drive Type
1/4'' hex
Voltage
32V
Diameter - in
1.6
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the CESL827BP-ESD?
What type of application is the CESL827BP-ESD best suited for?
Electric Screwdrivers like the CESL827BP-ESD, are most commonly used for medium to heavy assembly applications where precise torque control is required. The CESL827BP-ESD is an Inline model with a Auto Shut Off clutch.
How do I set the torque on the CESL827BP-ESD?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the CESL827BP-ESD have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
