6151590560 | CP6738-P05R | 1/2 in. 350 ft lb Air Impact Wrench, Pistol, 11500 rpm

(0)No Reviews yet

New Range, Premium Composite!

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

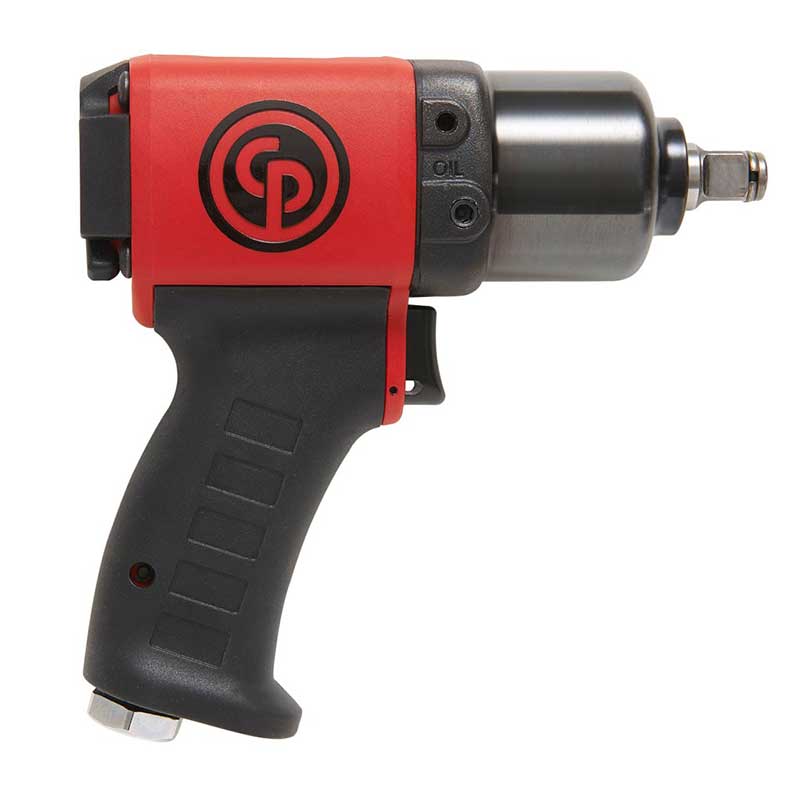

Chicago Pneumatic 1/2 in. 350 ft lb Air Impact Wrench, Pistol, 11500 rpm

CP6738-P05R

CP6738-P05R, 1/2 in. 350 ft lb Air Impact Wrench, Pistol, 11500 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/2 in. 350 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!

Benefits
  • Superior durability - designed for intensive use
  • High torque - up to 350 ft.lb (475 Nm)
  • Comfortable and light weight
Features
  • 1/2" Compact Industrial Impact wrench
  • Twin hammer in oil bath and steel clutch housing for long life
  • Extremely durable steel motor
  • Robust steel clutch housing
  • Ergonomic reverse and power setting
Back

Features & Benefits

  • Superior Durability
  • High torque output
  • Comfortable and lightweight
Back

Technical Specifications

SKU: 6151590560-CP
Max working torque fwd
350 Nm
Max torque reverse
475 Nm
Min working torque fwd
110 Nm
Torque limited
No
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Sound Power
100 dB(A)
Sound Pressure
89 dB(A)
Uncertainty vibration-K
1.9 m/s²
Vibration (m/s²)
5.2
Free Speed
11500 rpm
Air consumption at free speed
16 l/s
ItemType
product
ItemCountryOfOrigin
TW
Length (L)
175 mm
Side to Center
31 mm
Weight
1.7 kg
Body
Composite
Clutch housing
Aluminium
Clutch lubrication type
Oil bath
Handle type
Pistol
Impact mecanism
Twin hammer
Main Material type
Composite
Output drive size (in)
1/2
Output drive type
Sq
Output retainer type
Friction ring
Starting system
Trigger
Suspension option
Included
