Overview

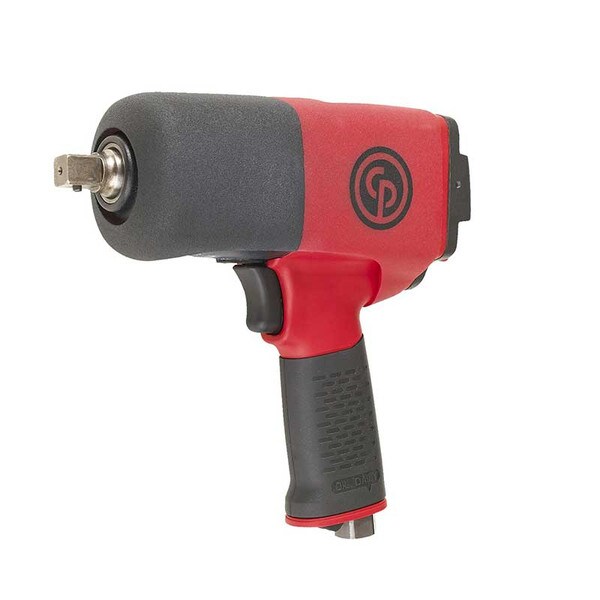

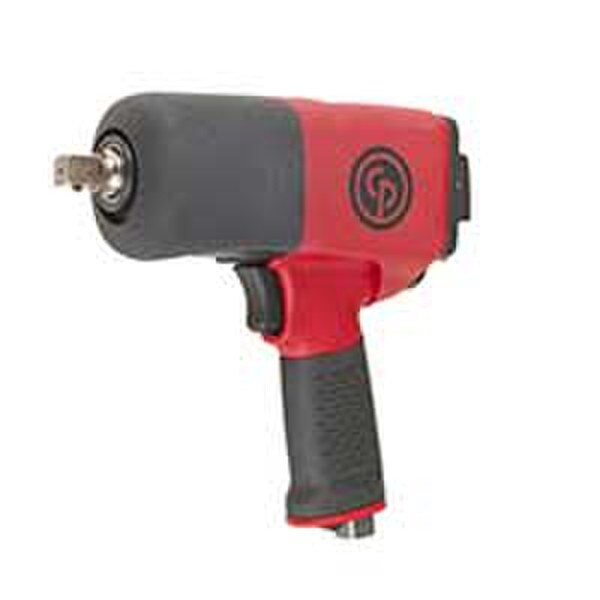

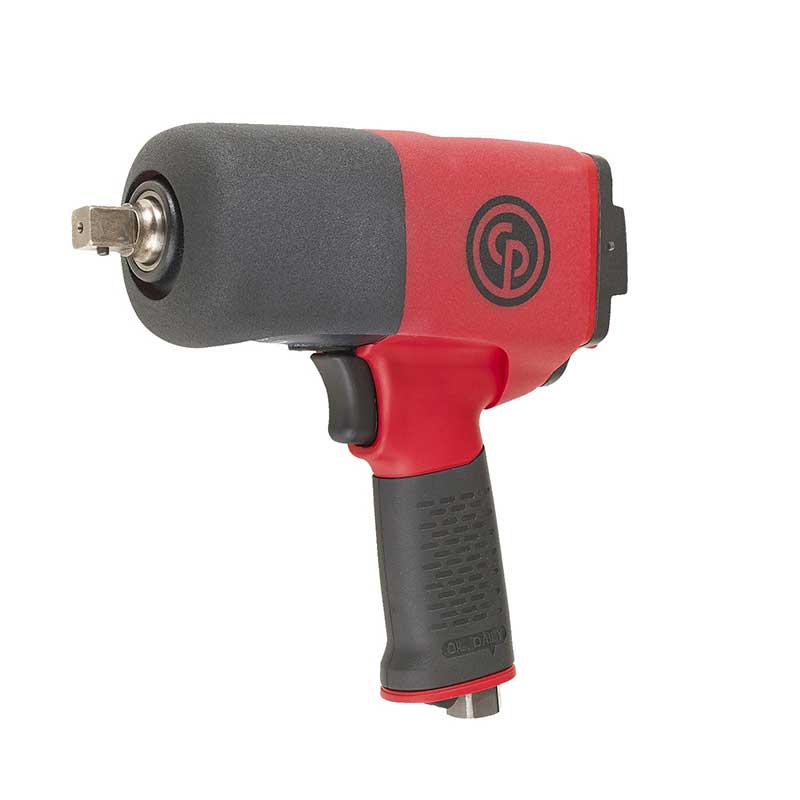

Chicago Pneumatic 1/2 in. 700 ft lb Air Impact Wrench, Pistol, 9000 rpm

CP8252-P

CP8252-P, 1/2 in. 700 ft lb Air Impact Wrench, Pistol, 9000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/2 in. 700 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!

Benefits
  • Very low noise level, limited vibration and lightweight for operator comfort
  • Powerful and easy to control for precise assembly jobs
  • Durable and reliable impact for Industrial Maintenance and Production applications
  • Multi-purpose tool for a large variety of applications
Features
  • 1/2" impact with pin retainer
  • Powerful & durable twin hammer clutch
  • Composite body and aluminum clutch housing
  • 3 power settings in forward & full power in reverse
  • Protective cover & suspension bail
  • Progressive trigger & Rubber grip
Back

Features & Benefits

  • Very low noise and limited vibrations
  • Ideal for industrial maintenance applications
  • Socket retainer
Back

Technical Specifications

SKU: 6151590210-CP
Max working torque fwd
750 Nm
Max torque reverse
950 Nm
Min working torque fwd
150 Nm
Torque limited
No
Air consumption at load (Normo)
25.4 1/sNl
Air consumption at load
12 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Sound Power
105 dB(A)
Sound Pressure
94 dB(A)
Uncertainty vibration-K
3.6 m/s²
Vibration (m/s²)
8.8
Free Speed
9000 rpm
ItemType
product
ItemCountryOfOrigin
TW
Length (L)
200 mm
Power weight ratio
470 Nm/kg
Side to Center
35 mm
Weight
2 kg
Blow per minute
1400
Body
Composite
Clutch housing
Aluminium
Clutch lubrication type
Grease
Handle type
Pistol
Impact mecanism
Twin hammer
Main Material type
Composite
Output drive size (in)
1/2
Output drive type
Sq
Output retainer type
Pin retainer
Starting system
Trigger
Suspension option
Included
