6151590170 | CP0611-D28L | #5 spline 2800 ft lb Air Impact Wrench, D-Handle, 3500 rpm
Overview

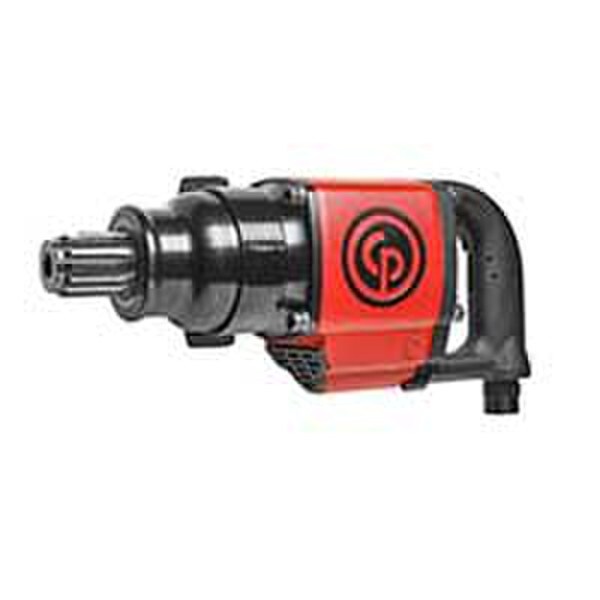

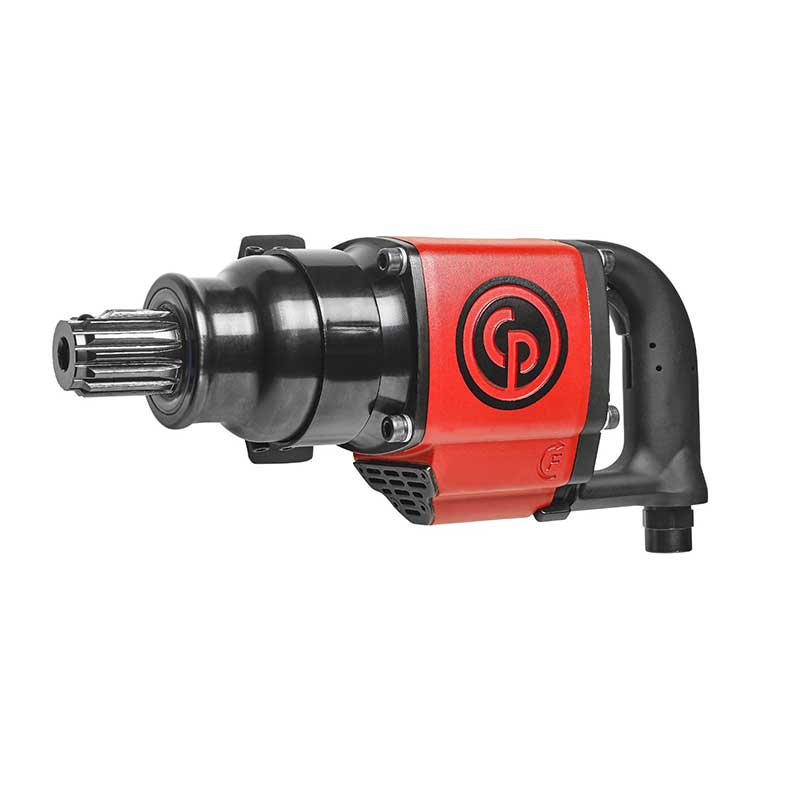

Chicago Pneumatic #5 spline 2800 ft lb Air Impact Wrench, D-Handle, 3500 rpm
CP0611-D28L
CP0611-D28L, #5 spline 2800 ft lb Air Impact Wrench, D-Handle, 3500 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this #5 spline 2800 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits:
- Best impact to loosen big bolts on very demanding industries thanks to Spline #5
- Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil
- Operator comfort and control thanks to perfect ergonomic design even at VERY high torque
- Progressive torque thanks to the 2-Jaw clutch
- Unmatched durability with reliable mechanism & durable housing
- Ideal for Heavy Industrial Maintenance and Production applications
Features:
- Super Industrial impact with spline #5
- Reliable 2-jaw clutch with the highest Blows per Minutes
- Full Teasing (inside) trigger with durable reverse
- Durable aluminum body & indestructible steel clutch housing
- Compact 3-part construction & easy maintenance
- Hole type socket retainer with O-ring
- 360° adjustable D-type side handle
- Steel internal trigger
Technical Specifications
Model
CP0611-D28L
Recommended Torque Range (Ft Lb)
900 - 1800
Type
Air Impact Wrench
Drive size
#5 Spline
Manufacturer
Chicago Pneumatic
Length (mm)
360
Free Speed (RPM)
3500
SKU
6151590170
Stock Code
2
Style
D-Handle
Clutch Type
2-jaw clutch
Max Torque (Ft Lb)
2800
Max Torque (Nm)
3790
Square Drive
no. 5 spline
Weight (lbs)
22.9
Side to Center (in)
1.81
Handle Type
D-Handle
Blows Per Minute (bpm)
1020
Actuation
Trigger
Series
CP0611
Retainer Type
Hole
Air Inlet NPT (in)
1/2
Air Consp. @ Free Speed (L/s)
32
Technical Documents
- Chicago Pneumatic CP0611-D28L #5 spline 2800 ft lb Air Impact Wrench Parts Breakdown (PDF)
- Chicago Pneumatic CP0611-D28L #5 spline 2800 ft lb Air Impact Wrench Operator's Manual (PDF)
- Chicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
