6151705000 | CP3850-60AB | 9 in. Angle Sander, 2.8 hp, 6000 rpm
Overview

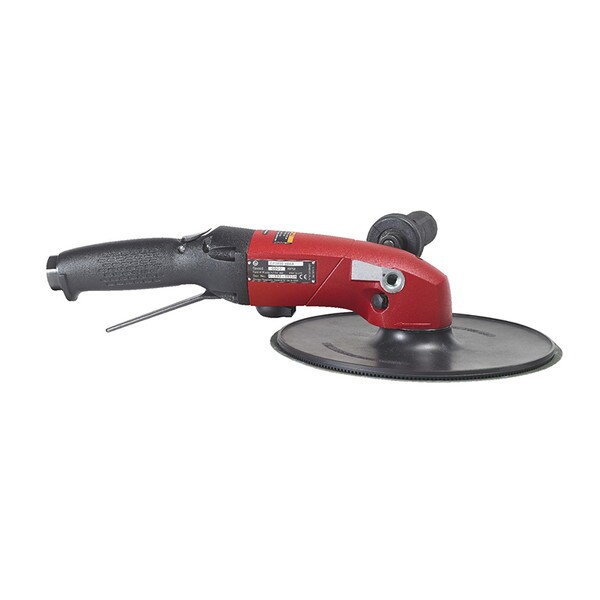

Chicago Pneumatic 9 in. Angle Sander, 2.8 hp, 6000 rpm
CP3850-60AB
CP3850-60AB, 9 in. Angle Sander, 2.8 hp, 6000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Angle Sander at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Industrial angle sander
- Highest durability in demanding applications with up to 2,000 hours maintenance intervals
- Superior torque for maximal productivity
- Superior ergonomics
Features
- Low profile angle head
- Superior durability bevel gear
- Double action safety lever
- Curved handle housing
- 9" (230 mm) pad capacity
- 2.8 hp (2,100 W) high performance governed motor
- 6,000 rpm free speed
- Integrated silencer
- Orientable exhaust
- Spindle lock button
- Auto balancer
- Vibration damping multi-position side handle
- ANSI certification / Not for CE Markets
Technical Specifications
Model
CP3850-60AB
Type
Angle Sander
Manufacturer
Chicago Pneumatic
Length (mm)
340
Free Speed (RPM)
6000
SKU
6151705000
Diameter - mm
9''
Stock Code
2
Air Inlet
1/2 in.
Style
Angle Head
Output
5/8'' - 11
Min Hose Size (in)
5/8
Weight (lbs)
5.1
Spindle Thread (in)
5/8-11
Series
CP3850
Air Cons. @ Free Speed (cfm)
38
Pad Diameter (in)
9
Rated Power (hp)
2.8
Technical Documents
- Chicago Pneumatic CP3850-60AB Angle Sander Parts Breakdown (PDF)
- Chicago Pneumatic CP3850-60AB Angle Sander Operator Manual (PDF)
- Chicago Pneumatic CP3850-60AB Angle Sander CE Certificate (PDF)
- Chicago Pneumatic Sanders and Polishers Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
