Overview

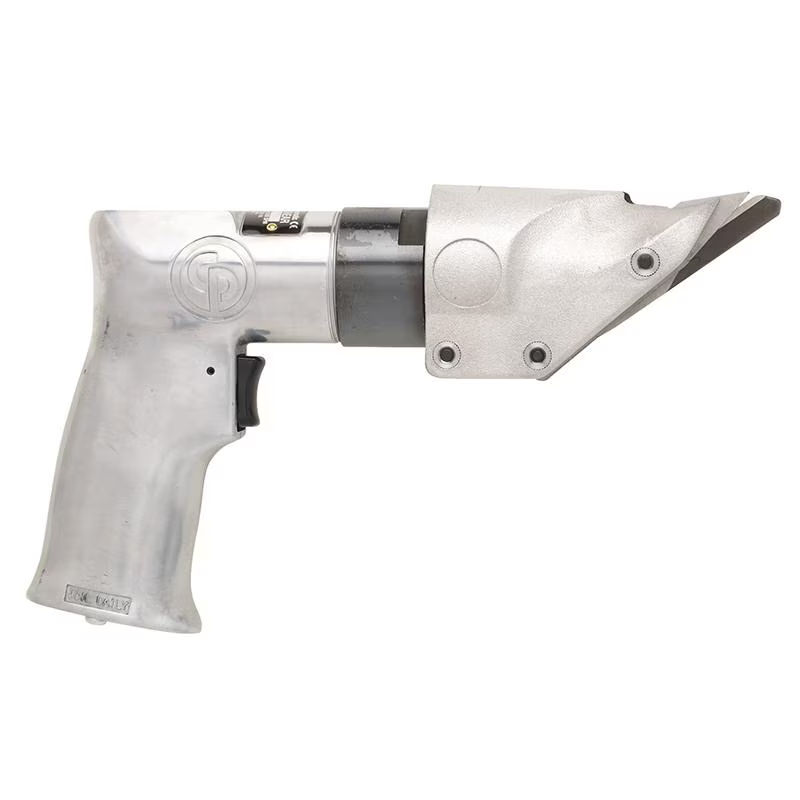

Chicago Pneumatic 2400 spm Heavy-Duty Pistol Shear

CP785S

CP785S, 2400 spm Heavy-Duty Pistol Shear by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Heavy-Duty Pistol Shear at a lower price? Call or email Customer Service and we'll match the price!

Benefits
  • Smooth operation and extended life
  • Operator comfort
  • Reliable cutting performance
  • Excellent tool for cutting square and angles in all types of aluminum, tin and steel
Features
  • Heavy-duty pistol shear
  • Powerful efficient 0.5 hp (370 W) motor to cut up to 18-gauge steel (1.1 mm - 0.04")
  • Triple idler planetary gearing
  • Ergonomic handle design
Back

Features & Benefits

  • Smooth operation and extended life
  • Powerful efficient 0.5 hp motor to cut up to 18-gauge steel
  • Triple idler planetary gearing
Back

Technical Specifications

SKU: T023200-CP
Application
Metallic
Main Material type
Aluminium
Stroke per minute
2400
ItemType
product
ItemCountryOfOrigin
JP
Blade lenght
22 mm
Cutting capacity aluminum
2 mm
Cutting capacity steel
1.3 mm
Length (L)
229 mm
Stroke
2.2 mm
Weight
0.86 kg
Max power
258 W
Sound Power
84 dB(A)
Sound Pressure
95 dB(A)
Uncertainty vibration-K
3 m/s²
Vibration
3.2 m/s²
Air consumption at load
7.3 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
