Overview

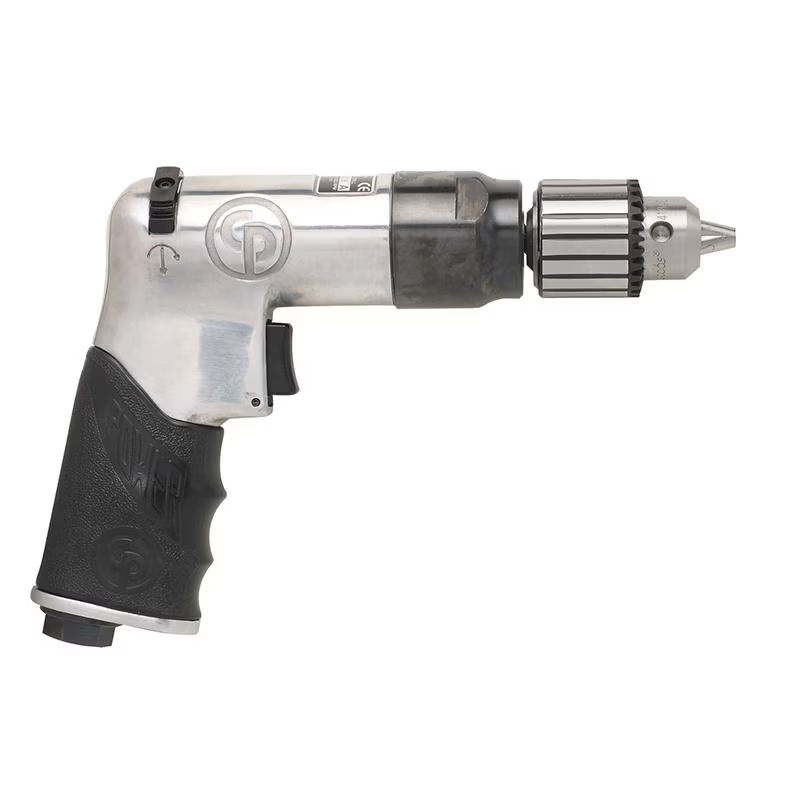

Chicago Pneumatic 3/8 in 3.1 ft lb Reversible Pistol Drill, Jacobs chuck, 2600 rpm, 0.4 hp

CP789R-26

CP789R-26, 3/8 in 3.1 ft lb Reversible Pistol Drill, Jacobs chuck, 2600 rpm, 0.4 hp by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Reversible Pistol Drill at a lower price? Call or email Customer Service and we'll match the price!

Benefits
  • Industrial maintenance duty and designed for operators' productivity, durability, and comfort
  • Great tool for honing and heavy drilling
Features
  • 3/8" (10 mm) reversible pistol drill
  • Powerful 0.4 hp (320 W) motor
  • Teasing throttle
  • Industrial quality Jacobs chuck
  • Durable gearbox
  • Ergonomic grip
Back

Features & Benefits

  • High comfort with its compositie housing
  • Thermoplastic rubber handle grip
  • Handle exhaust allowing the air to flow away from the operator
Back

Technical Specifications

SKU: T025180-CP
Chuck max capacity (in)
3/8
Chuck max capacity (mm)
10
Chuck type
Keyed
Handle type
Pistol
Main Material type
Aluminum
Reversible
Yes
Starting system
Trigger
Trigger type
Progressive
Sound Power
106 dB(A)
Sound Pressure
95 dB(A)
Vibration (m/s²)
<2.5
Air consumption at load
14 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Max power
320 W
Stall torque
4.2 Nm
Free Speed
2600 rpm
Air consumption at free speed
14 l/s
ItemType
product
ItemCountryOfOrigin
JP
Length (L)
178 mm
Weight
1.13 kg
