T022550 | CP835 | 2750 spm Heavy-duty Nibbler
Overview

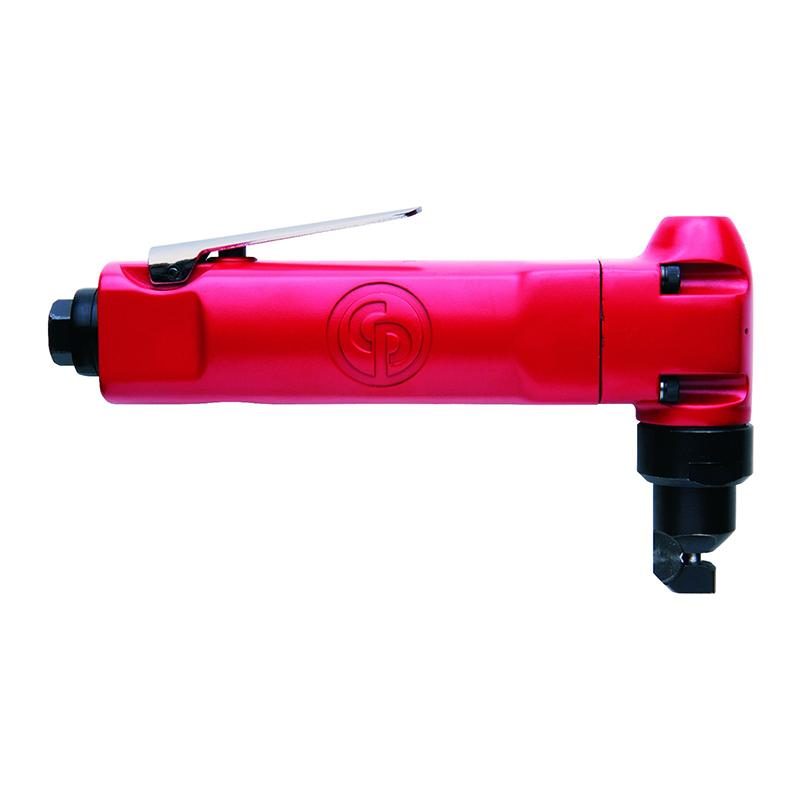

Chicago Pneumatic 2750 spm Heavy-duty Nibbler
CP835
CP835, 2750 spm Heavy-duty Nibbler by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Heavy-duty Nibbler at a lower price? Call or email Customer Service and we'll match the price!
Benefits:
- Easy to operate and control
- Perfect for accurate cutting and best for tight corners and circles
- Used for nibbling plastic, tin, aluminum and others metals
Features:
- Heavy-duty nibbler
- Rugged head and 0.177" diameter punch cuts steel up to .060" (16 gauge) and aluminum up to .102" (10 gauge)
- Easy access to punch and die for quick replacement
- Lock-off lever for low-speed starting
- 4 optional cutting positions
Features & Benefits
- Perfect for accurate cutting and best for tight corners and circles
- Easy to operate and control
- Rugged head and 0.177" diameter punch cuts 16 gauge steel and 10 gauge aluminum
- Easy access to punch and die for quick replacement
Technical Specifications
SKU: T022550-CP
Cutting form
Round
Stroke per minute
2750
Cutting capacity aluminum
2.5 mm
Cutting capacity steel
1.6 mm
Length (L)
216 mm
Punch diameter
4.5 mm
Stroke
5 mm
Weight
0.59 kg
Max power
316 W
ItemType
product
ItemCountryOfOrigin
JP
Sound Power
97 dB(A)
Sound Pressure
86 dB(A)
Uncertainty vibration-K
3 m/s²
Vibration
5.4 m/s²
Air consumption at load
8 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (5 m hose length)
10 mm
Technical Documents
Chicago Pneumatic CP835 Heavy-duty Nibbler Operator Manual (PDF)- Chicago Pneumatic CP835 Heavy-duty Nibbler Operator Manual (PDF)
- Chicago Pneumatic Handheld Pneumatic Nibbler and Shear Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
