T019704 | CP860 | 1/4 in. Straight Die Grinder, 24000 rpm

(0)No Reviews yet

This CP8 Die Grinder has a 0.54 hp motor with speeds up to 24,000 rpm. For General Maitenance Applications

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

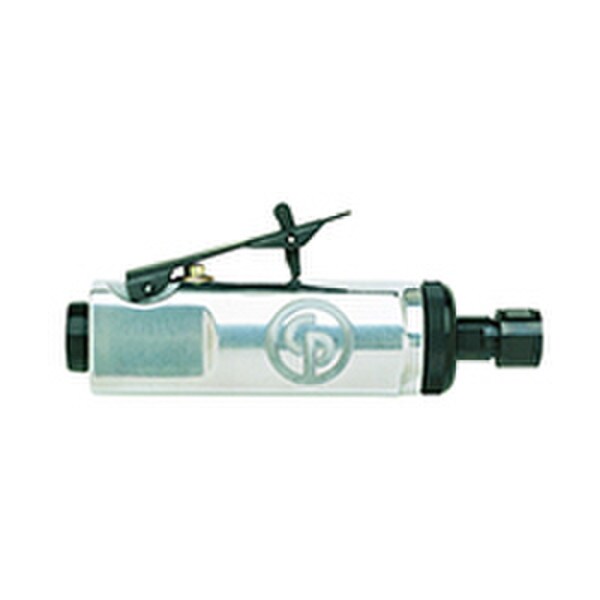

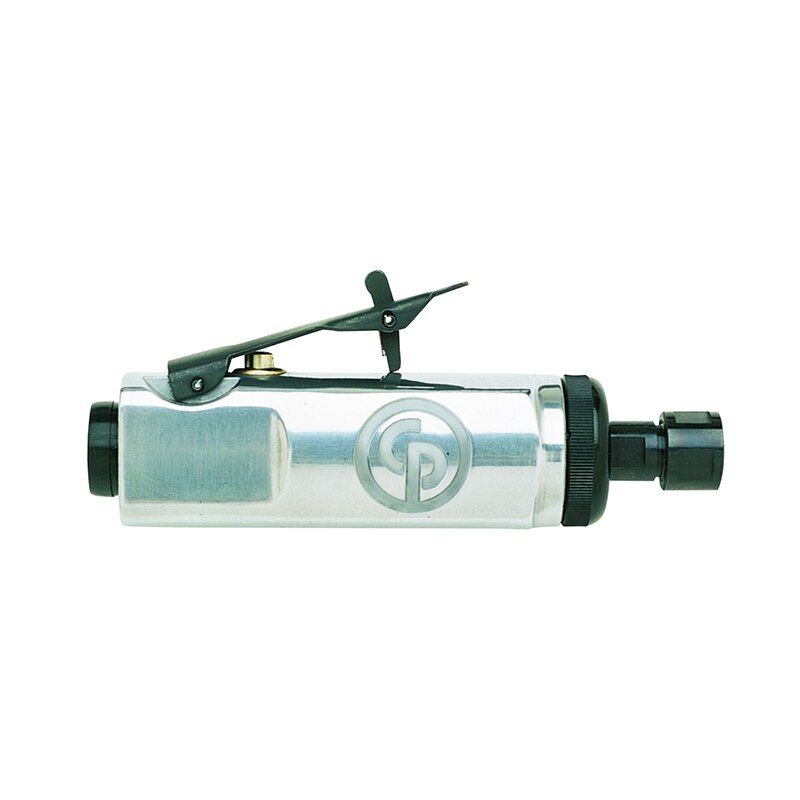

Chicago Pneumatic 1/4 in. Straight Die Grinder, 24000 rpm

CP860

CP860, 1/4 in. Straight Die Grinder, 24000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Straight Die Grinder at a lower price? Call or email Customer Service and we'll match the price!

Benfits
  • General maintenance application die grinder
  • Productivity and control
  • Excellent for cleaning tires, moldings, porting, relieving engines, and general high-speed polishing and grinding
Features
  • 1/4" collet
  • Rugged and energy efficient 0.54 hp (400 W) motor
  • Adjustable speed regulator
  • Lock-off throttle
  • Square handle design for greater comfort
360° Product Viewer
Back

Features & Benefits

  • For General Maitenance Applications
  • Ideal for limited spaces
Back

Technical Specifications

SKU: T019704-CP
Length (L)
146 mm
Weight
0.57 kg
Free Speed
24000 rpm
Air consumption at free speed
9.9 l/s
Air consumption at load
9.9 l/s
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Sound Power
103.5 dB(A)
Sound Pressure
92.5 dB(A)
Uncertainty vibration-K
1.6 m/s²
Angle Type
Straight
Max power
400 W
ItemType
product
ItemCountryOfOrigin
JP
Collet max capacity
1/4 (6.4mm)
Exhaust
Rear
Governor type
NA
Main Material type
Aluminium, Composite over-sleeve
Rotative inlet
No
Spindle lock
No
Starting system
Safety lever
