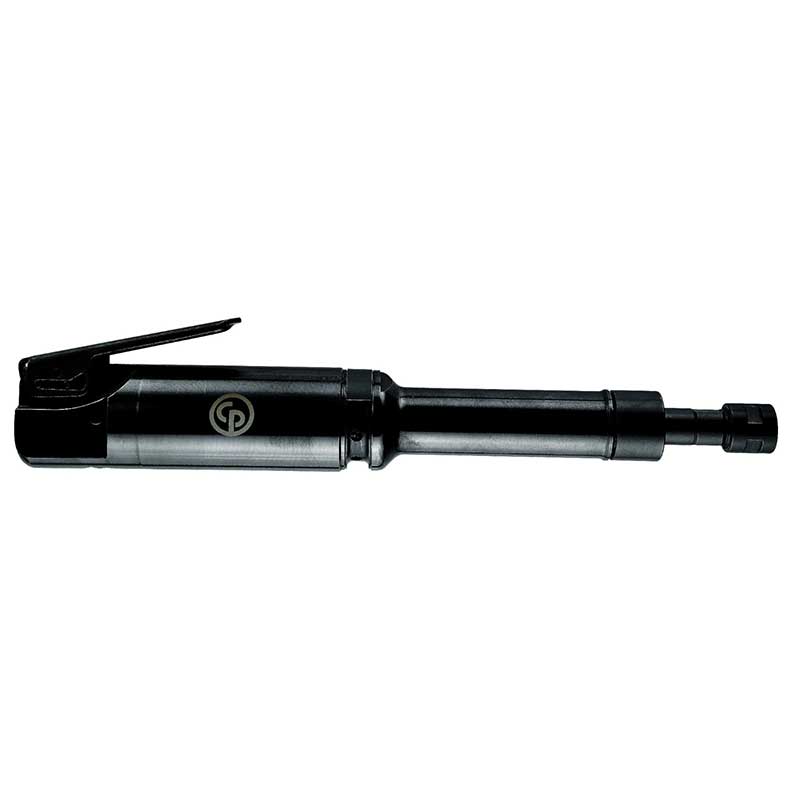

6151602070 | CP9113GES | 1/4 in. Extended Die Grinder, 25000 rpm, 1 hp, Side exhaust

(0)No Reviews yet

This CP91 Die Grinder has a 1 hp motor with speeds up to 25,000 rpm. lightweight, low-vibrations

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Chicago Pneumatic 1/4 in. Extended Die Grinder, 25000 rpm, 1 hp, Side exhaust

CP9113GES

CP9113GES, 1/4 in. Extended Die Grinder, 25000 rpm, 1 hp, Side exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Extended Die Grinder at a lower price? Call or email and we'll match the price!

Benefits
  • Industrial die grinder
  • High body durability
  • Designed for rough use
  • Withstands extreme temperatures
Features
  • Robust machined steel housing
  • Robust safety lever
  • Side exhaust
  • 1/4" (6.35 mm) collet holder
  • Extended body
  • 1 hp (750 W) motor
  • 25,000 rpm free speed
Back

Features & Benefits

  • Robust housing
  • Designed for rough use
Back

Technical Specifications

SKU: 6151602070-CP
Length (L)
320 mm
Weight
1.62 kg
Free Speed
25000 rpm
Air consumption at free speed
17 l/s
Air consumption at load
15 l/s
Air inlet thread size (in)
3/8
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
13 mm
Sound Power
93.5 dB(A)
Sound Pressure
82.5 dB(A)
Uncertainty vibration-K
1.1 m/s²
Angle Type
Straight
Max power
750 W
ItemType
product
ItemCountryOfOrigin
TW
Collet max capacity
1/4 (6.4mm)
Collet/Collet holder/Collet nut type
Erickson serie 200 type
Governor type
NA
Main Material type
Steel
Rotative inlet
No
Spindle lock
No
Starting system
Safety lever
