6151590650 | CP6773-D18D | 1 in. 1300 ft lb Air Impact Wrench, D-Handle Inside Trigger, 6600 rpm
Overview

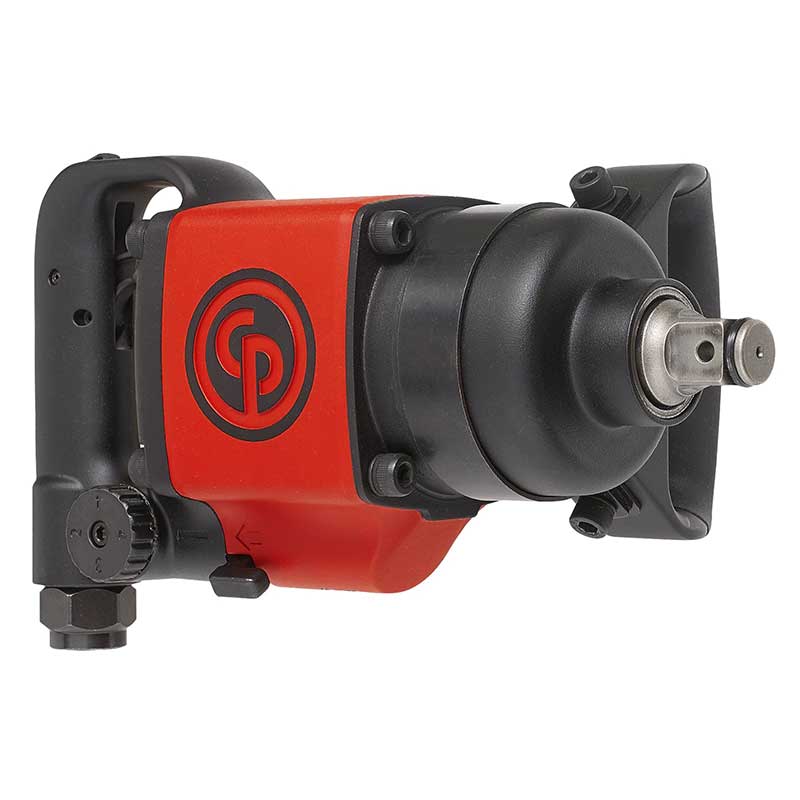

Chicago Pneumatic 1 in. 1300 ft lb Air Impact Wrench, D-Handle Inside Trigger, 6600 rpm
CP6773-D18D
CP6773-D18D, 1 in. 1300 ft lb Air Impact Wrench, D-Handle Inside Trigger, 6600 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1 in. 1300 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Suited for many industrial MRO
- Good ergonomics giving less operator's fatigue
- Hole and ring retaining system
Features
- Only 6.7 kg
- Robust with steel clutch housing and aluminum motor housing
- Powerful, untightening torque 1300 ft.lb (1760 Nm)
Technical Specifications
Model
CP6773-D18D
Recommended Torque Range (Ft Lb)
250 - 1070
Type
Air Impact Wrench
Drive size
1'' square
Manufacturer
Chicago Pneumatic
Length (mm)
290
Free Speed (RPM)
6600
SKU
6151590650
Stock Code
2
Style
D-Handle
Clutch Type
Twin hammer
Max Torque (Ft Lb)
1300
Max Torque (Nm)
1760
Square Drive
1 in.
Weight (lbs)
14.7
Side to Center (in)
1.6
Handle Type
D-Handle, Inside Trigger
Blows Per Minute (bpm)
730
Actuation
Trigger
Series
CP67X3
Retainer Type
Dual, hole and friction
Air Inlet NPT (in)
1/2
Technical Documents
Chicago Pneumatic CP6773-D18D 1 in. 1300 ft lb Air Impact Wrench Parts Breakdown (PDF)- Chicago Pneumatic CP6773-D18D 1 in. 1300 ft lb Air Impact Wrench Operator's Manual (PDF)
- Chicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
