T025097 | CP782 | 1/4 in. 4.97 Nm Impact Straight Screwdriver, 1800 rpm

(0)No Reviews yet

Chicago Pneumatic Cushion Clutch Screwdrivers are rigorously engineered to meet your demands for productivity, accuracy, and durability for the more demanding applications.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

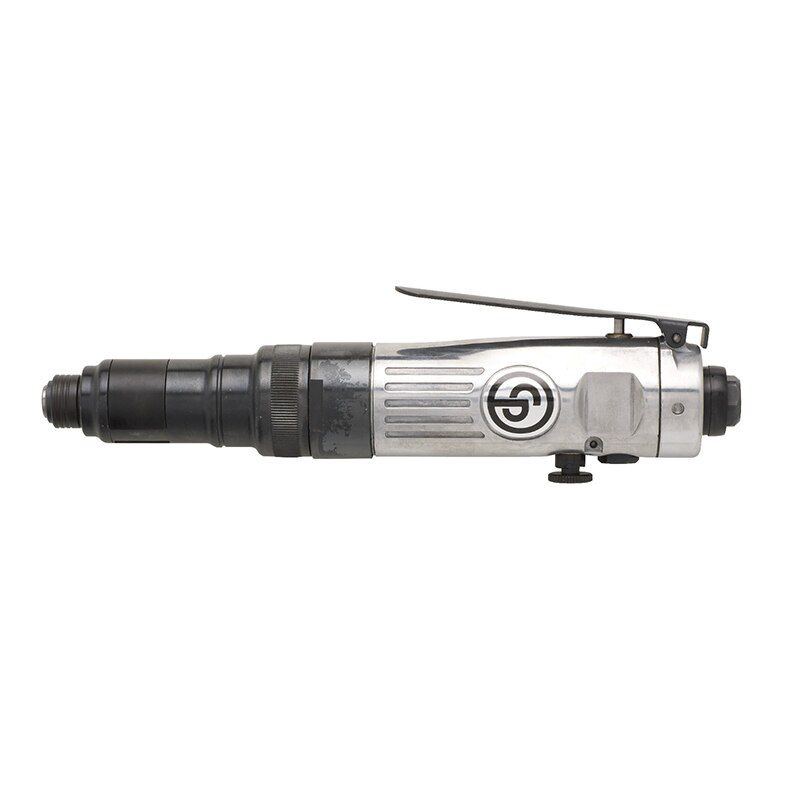

Chicago Pneumatic 1/4 in. 4.97 Nm Impact Straight Screwdriver, 1800 rpm

CP782

CP782, 1/4 in. 4.97 Nm Impact Straight Screwdriver, 1800 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Impact Screwdriver at a lower price? Call or email Customer Service and we'll match the price!

Benefits
  • Reliable cushion clutch
  • Comfortable use thanks to low weight
  • Faster cycle times with 1,800 rpm
  • Ideal tool for general assembly operations on metal, wood, PVC, or any repair applications
Features
  • Straight Cushion clutch Screwdriver
  • External clutch adjustment
  • Built-in 1/4" Female Hexagonal quick-change
  • Convenient single handed forward/reverse valve
  • High torque: 44 in.lbs (5 Nm)
  • Progressive lever start and suspension bail
Back

Features & Benefits

  • Compact for easy access
  • Low noise & vibration for operator comfort
  • Robust and durable
Back

Technical Specifications

SKU: T025097-CP
Max torque in forward
4.97 Nm
Min torque in forward
3.5 Nm
Torque Control System
Non shut-off-clutch
Adjustment
Rotative ring
Body
Aluminum
Clutch housing
Steel
Clutch Type
Cushion clutch
Handle type
Straight handle
Main Material type
Aluminium
Output drive size (in)
1/4
Output drive type
Hex
Output retainer type
Quick change
Reversible
Yes
Starting system
Lever
Free Speed
1800 rpm
Air consumption at free speed
7.6 l/s
ItemType
product
ItemCountryOfOrigin
JP
Air inlet thread size (in)
1/4
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
10 mm
Length (L)
245 mm
Weight
1.13 kg
Sound Power
104.9 dB(A)
Sound Pressure
93.9 dB(A)
Vibration (m/s²)
<2.5
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!
