6151710230 | CP4220AL | Rivet Squeezer, 6000 lb max, short alligator jaw
Overview

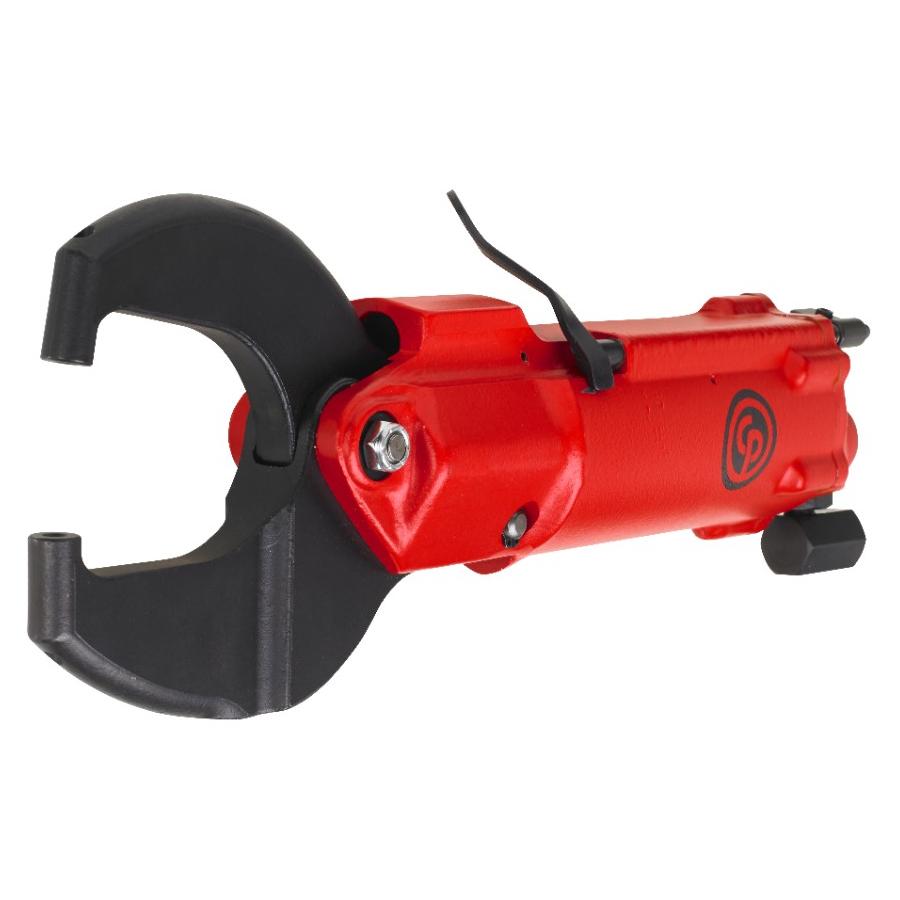

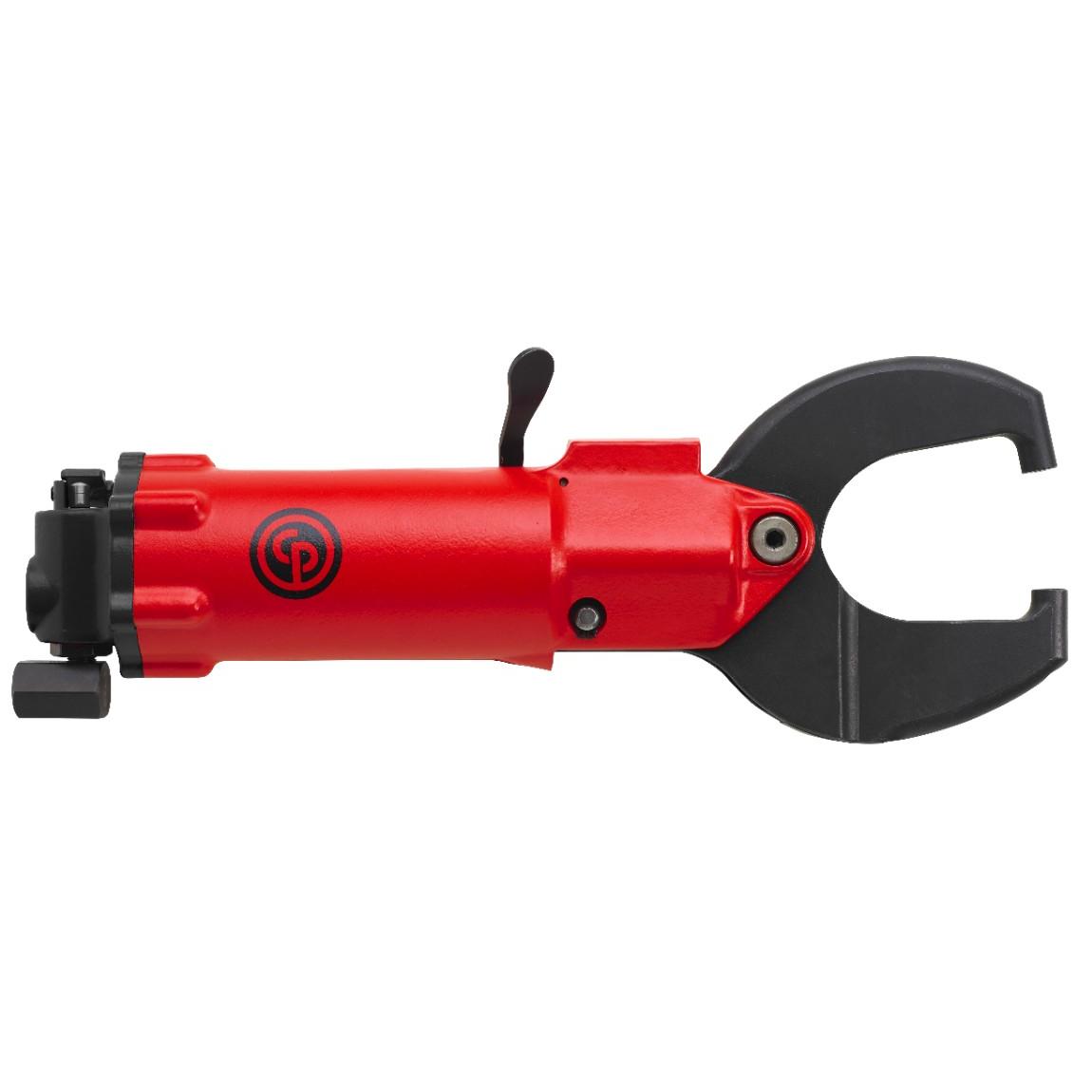

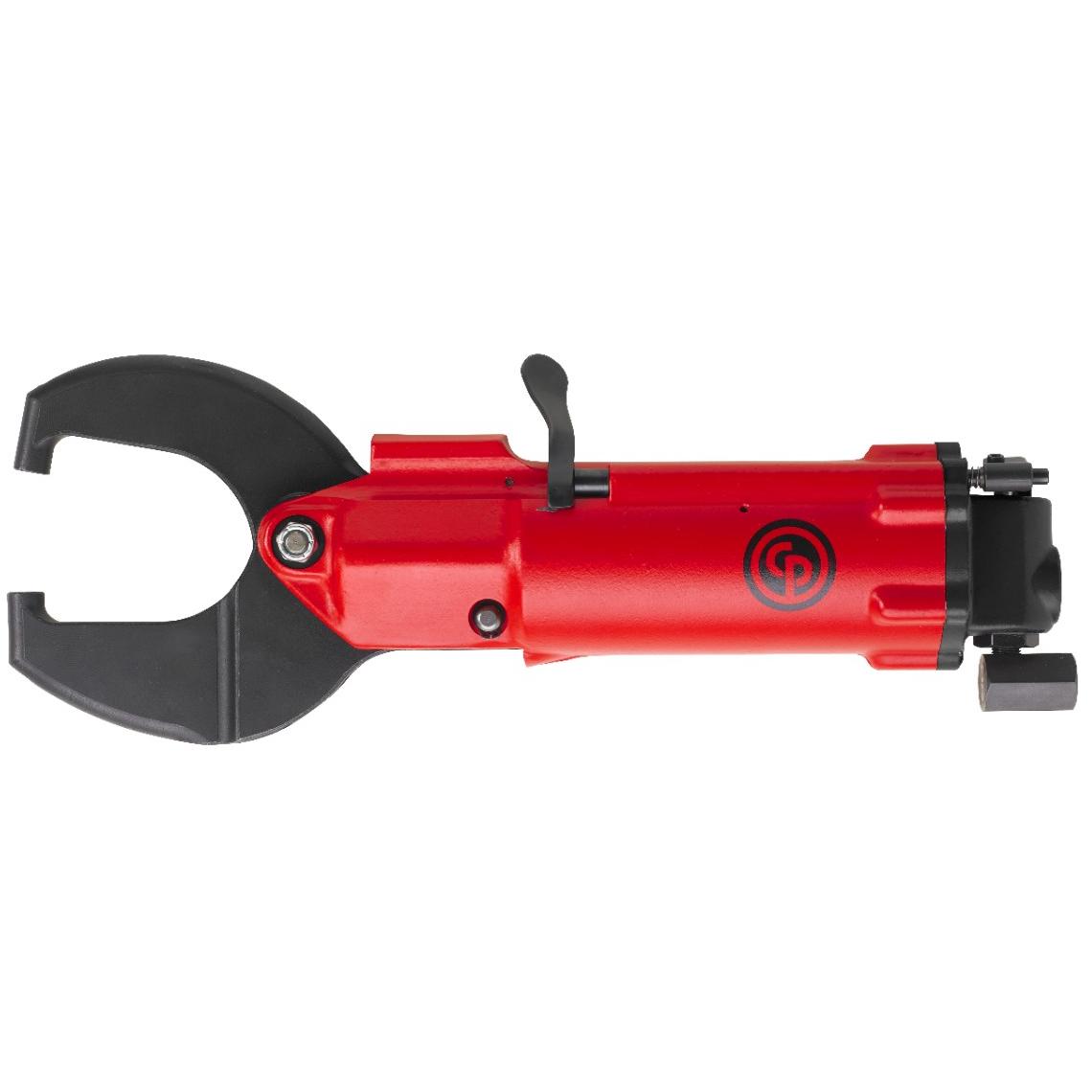

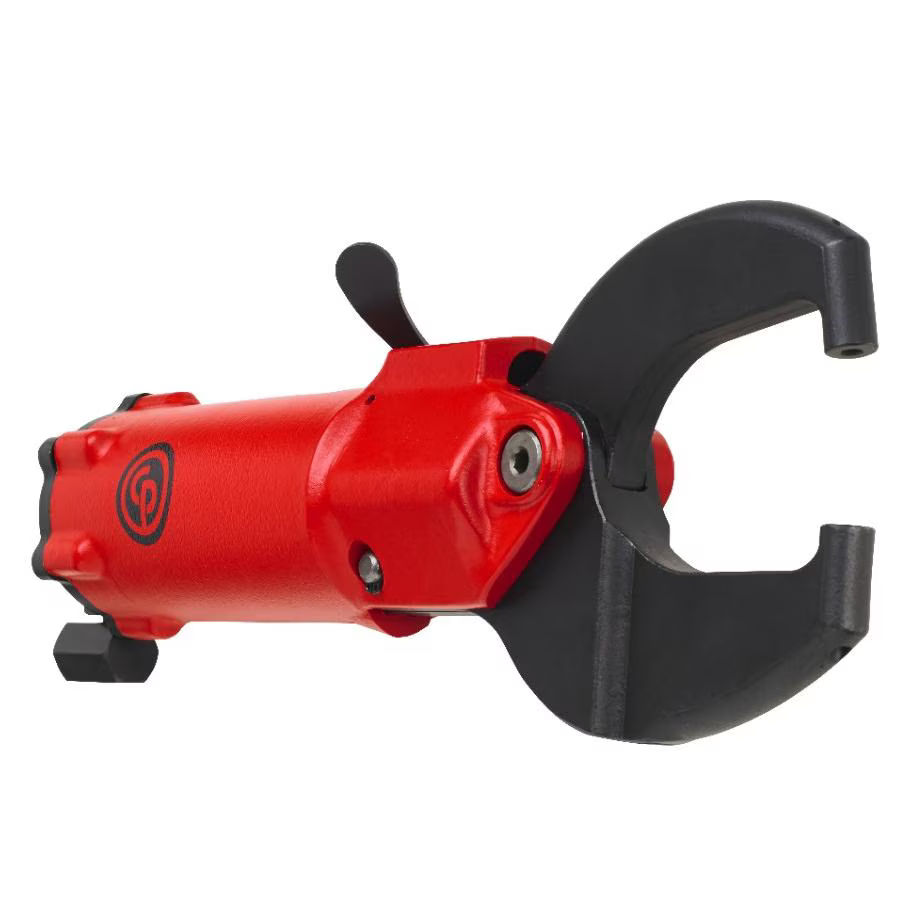

Chicago Pneumatic Rivet Squeezer, 6000 lb max, short alligator jaw
Rivet Squeezer, 6000 lb max, short alligator jaw, model# CP4220AL available to order online. Do you see this Chicago Pneumatic Rivet Squeezer available elsewhere for a lower price? Contact Customer Service to price match!
Benefits- Smooth operation and almost vibrationless
- Perfectly adapted for metal structure repair
- Powerful and robust
- Rivet squeezer with long alligator jaw
- Can do rivets up to 3 inches (75 mm) from edge
- Swivel inlet for maximum comfort and accessibility
CP4220AL by Chicago Pneumatic
The Aerospace riveting solution from Chicago Pneumatic! This Rivet Squeezer has a 3/32 and 1/8 in. rivet capacity.
Features & Benefits
- 6000 lb max
- Smooth operation and almost vibrationless
- Swivel inlet for maximum comfort and accessibility
- Adapted for metal structure repair
Technical Specifications
SKU: 6151710230-CP
Height (H)
134 mm
Length (L)
343 mm
Moving plunger max. travel
19.5 mm
Weight
2.5 kg
Jaw type
Aligator long
Main Material type
Aluminium
Max compression force (90psi/6.2bar)
18.2 kN
Max rivet size aluminium (in)
1/8
Max rivet size aluminium (mm)
3.2
Max rivet size steel (in)
3/32
Max rivet size steel (mm)
2.4
Starting system
Safety lever
Sound Power
83 dB(A)
Sound Pressure
72 dB(A)
Uncertainty vibration-K
1.6 m/s²
Vibration (m/s²)
<2.5 m/s**2
ItemType
product
ItemCountryOfOrigin
TW
Air inlet thread size (in)
1/4
Air inlet thread type
NPT
Max dynamic air working pressure
6.3 bar
Min hose diam (16 ft hose length)
0.38 in
Min hose diam (5 m hose length)
9.5 mm
