957501130 | 1015mm LED Infrared Dimension Light Grid, Voltage Analog and RS485
Overview

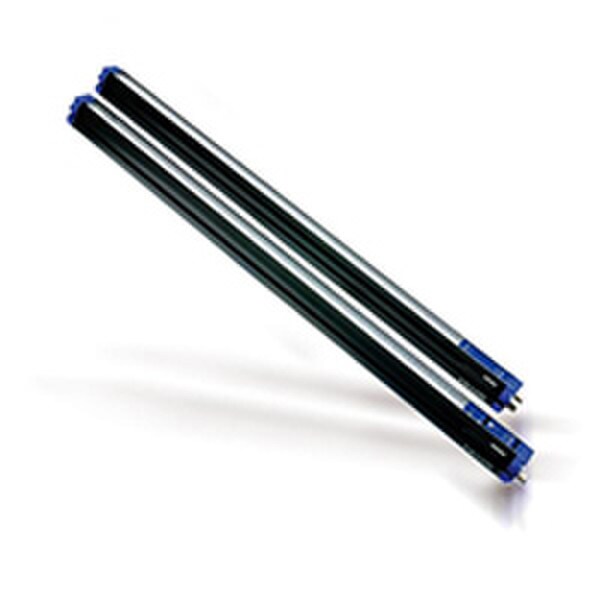

Datalogic DS2-05-25-090-JV / 957501130
Light Grids H=900Mm - Range 10M - Beam Sep. 25Mm - Rs485/Analogue /1 Pnp - M12 4P / M12 8P
The DS2 series covers controlled heights ranging from 15 to 250 cm, with 5 m operating distances for 6 mm resolution versions, or 10 m for 25 mm resolution versions. The measurement configuration can be set manually thanks to internal dip-switches, or using graphic interface from remote PC.
Both models with serial interface and ETHERNET protocol are available to transmits the measurement, the operating status control as well as the setting of the device
Applications:- Object detection and measurement on conveyor belt
- Control of the correct material positioning (opaque and transparent) during functioning (plastic, metal, paper etc)
- Loop control and positioning (also transparent material)
- Detection of objects with different shapes in the food industry
- Detection of objects in different positions (parallel beams)
- Detection of slots and holes in different positions
Technical Documents
Datalogic DS2 Series Light Arrays Manual (PDF)- Datalogic DS2 Series Light Arrays Brochure (PDF)
- Datalogic Sensors Product Guide (PDF)
- Datalogic Sensors White Paper (PDF)
DS2 Host Rel 3.0.7.0 Setup (ZIP)- DS2 Area Light Array Area Sensors DWG (ZIP)
