957600120 | Light grids H=150mm - range 1,5m - beam sep. 6mm - analogue /1 pnp - M12 4p / M12 8p
Overview

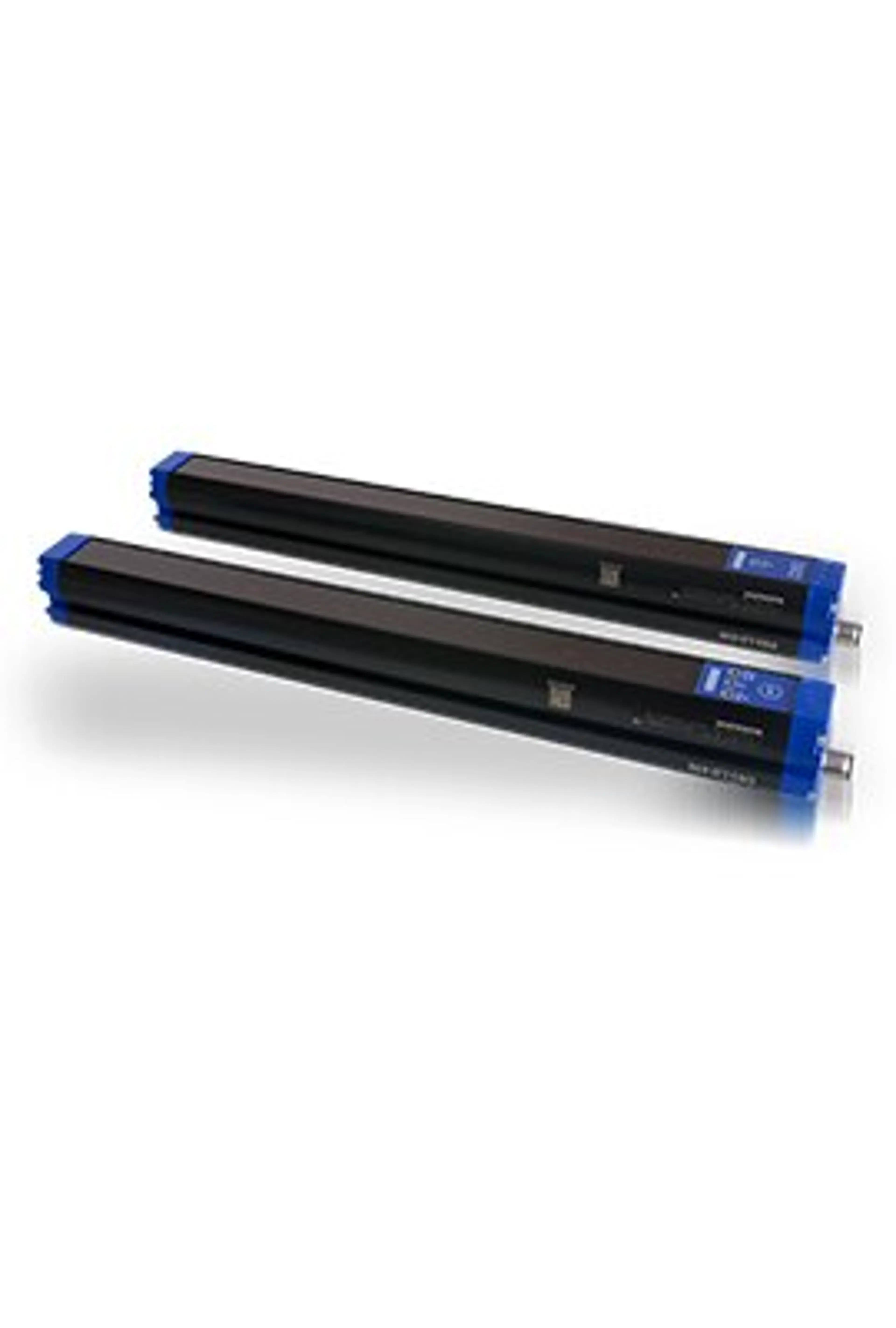

Datalogic DS3-LD-015 / 957600120
Light Grids H=150Mm - Range 1,5M - Beam Sep. 6Mm - Analogue /1 Pnp - M12 4P / M12 8P
DS3 are optoelectronic multibeam devices that can be used to detect, measure and control the position of objects, also transparent and small. Models with 150, 300, 450 or 600 mm detection field height are available, as well as presenting 0.2 - 0.6 m or 0.6 - 1.5 m operating distances.
Internal dip-switches for configuration are available on all models, together with the Teach-in setting button with Remote and self-calibration function
Applications:- Control of the correct material positioning (opaque and transparent) during functioning (plastic, metal, paper etc)
- Detection of objects with different shapes in the food industry
- Loop control and positioning (also transparent material
- Detection of objects with different shapes in the food industry
Technical Specifications
SKU: 957600120-datalogic
Model
957600120
Optic Function
Measurement light curtain
Emission
Infrared
Material
Aluminum
Type
Long Distance Light Curtain
Manufacturer
Datalogic
Power consumption (W)
0.1
SKU
957600120
Communication
M12 Connector
Power supply
24 VDC
Connection
M12 Connector
Output
Analog
Operating Distance
1500 mm
Series
DS3
Housing
Aluminum
Wavelength
880 nm
Technical Documents
Datalogic DS3 Series Light Arrays Manual (PDF)- Datalogic DS3 Series Light Arrays Brochure (PDF)
- Datalogic Sensors Product Guide (PDF)
- Datalogic Sensors White Paper (PDF)
