Datalogic 931061325 | DS4800-1105 | ADJ FOCUS, OM, SUBZERO

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Datalogic 931061325 | DS4800-1105 | ADJ FOCUS, OM, SUBZERO

Rating:
(0)No Reviews yet
$2,088.39
Datalogic

Details

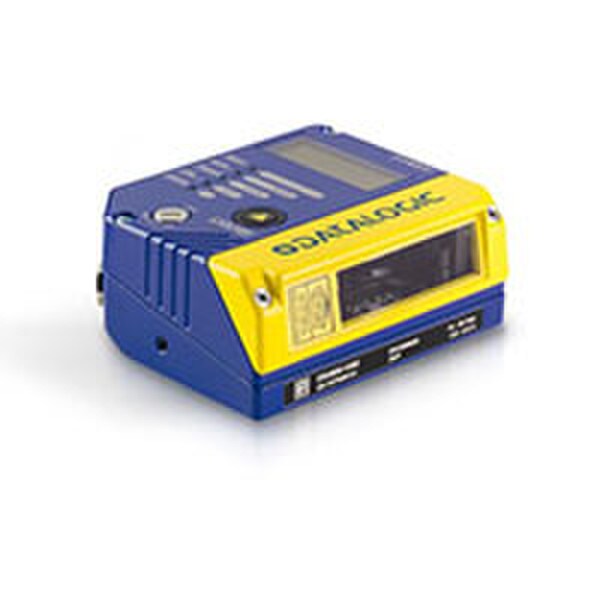

Datalogic DS4800-1105 / 931061325

ADJ FOCUS, OM, SUBZERO

DS4800 is a flexible and compact laser scanner for industrial application, satisfying all main identification needs of your manufacturing plants. DS4800 features an excellent reading performance, ease of setup thanks to X-PRESSinterface, high-speed ID-NET communication interface and total immunity against ambient light. Smart Focus Adjustment optimizes reading performances based on reading distances using a single model. DS4800 series includes Subzero models (both Linear and Oscillating Mirror), extending operating temperature to -35??C +50??C by means of the smart internal heater and de-frost window.

Features:
  • Variable focus system
  • 600-900scan /sec
  • 2 input + 2 output
  • RS232 + RS485 serial port
  • Display and multi-language messages
  • ID-NET
  • X-PRESS
  • 10-30Vdc, IP65, 0-50??C (-35??C-50??C Subzero models)
  • ACR4 decoding algorithm
  • Typical reading range: 200 - 1000mm
Applications:
  • Automated warehousing
  • Reading on pallets
  • Picking systems
  • Automated shop floor
  • Quality control and parts tracking
  • Reading on forklift trucks
  • Frozen Industry, Temperature Controlled Room applications and Outdoor Environment

DS4800 is a flexible and compact laser scanner for industrial application, satisfying all main identification needs of your manufacturing plants. DS4800 features an excellent reading performance, ease of setup thanks to X-PRESSinterface, high-speed ID-NET communication interface and total immunity against ambient light. Smart Focus Adjustment optimizes reading performances based on reading distances using a single model. DS4800 series includes Subzero models (both Linear and Oscillating Mirror), extending operating temperature to -35°C +50°C by means of the smart internal heater and de-frost window.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Variable focus system

Technical Information

Technical Specifications

Technical Specifications

SKU: 931061325-datalogic
Manufacturer Datalogic
Model DS4800-1105
Communication RS232, RS422, RS485
Dimensions 117 x 123 x 48 mm
Interface X-PRESS HMI, Programmable Push Button, LEDs
Max scans/sec 600 - 1000
Series DS4800
Type Identification - Laser Bar Code Scanner
Weight1.72 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!
