  • Datalogic SR23 Series Fork Sensors

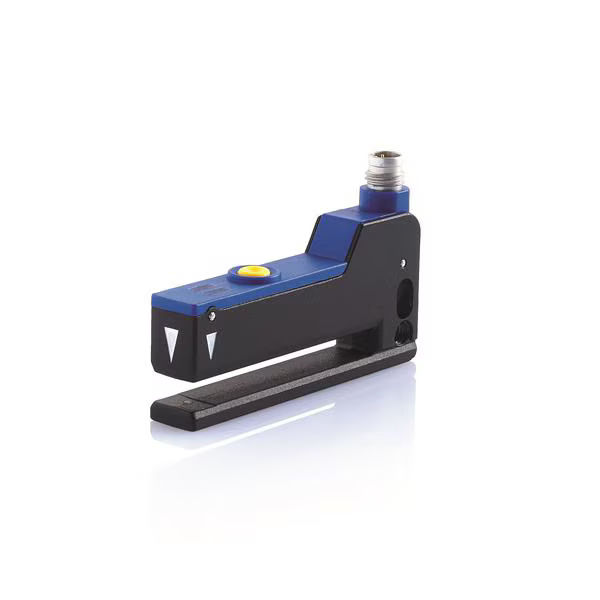

Datalogic | SR23 Series Fork Sensors

<div class='modelTitleDiv'><span class='spacerr'></span><div class='lnDv left'>Model Series</div><div class='lnDv'>Output</div><div class='lnDv'>Connection</div><div class='lnDv th'></div><div class='lnDv fr'>Optic Function</div><div class='lnDv pr'>Price</div><span class='spacerr'></span></div>
<div class='modelLineDiv' id='modelLineDiv_577783' onclick='toggleSeries(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>SR23<a href='Datalogic-SR23-Series-Fork-Sensors' class='seriesLink'>See Full Series Details</a></div><div class='lnDv'>Multiple</div><div class='lnDv'>Multiple</div><div class='lnDv th'></div><div class='lnDv fr'>Fork</div><div class='lnDv pr'>$70.68</div><span class='fa chev-right'></span></div><div class='modelMembersDiv hidee' id='modelMembersDiv_577783'><div class='membLn' id='membLn_563657' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>SR23-2-IR-PH</div><div class='lnDv'>PNP</div><div class='lnDv'>Pigtail</div><div class='lnDv th'></div><div class='lnDv fr'>Fork</div><div class='lnDv pr'>$70.68</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_563657'></div><div class='membLn' id='membLn_563658' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>SR23-5-IR-PH</div><div class='lnDv'>PNP</div><div class='lnDv'>M8 Connector</div><div class='lnDv th'></div><div class='lnDv fr'>Fork</div><div class='lnDv pr'>$70.68</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_563658'></div><div class='membLn' id='membLn_563659' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>SR23-2-IR-NH</div><div class='lnDv'>NPN</div><div class='lnDv'>Pigtail</div><div class='lnDv th'></div><div class='lnDv fr'>Fork</div><div class='lnDv pr'>$70.68</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_563659'></div><div class='membLn' id='membLn_563660' onclick='togComp(this)' onmouseover='cCov(this)' onmouseout='cCot(this)'><span class='fa chev-right lft'></span><div class='lnDv left'>SR23-5-IR-NH</div><div class='lnDv'>NPN</div><div class='lnDv'>M8 Connector</div><div class='lnDv th'></div><div class='lnDv fr'>Fork</div><div class='lnDv pr'>$70.68</div><span class='fa chev-right'></span></div><div class='membDetl' id='membDetl_563660'></div></div>
  • Compact housing: suitable for application with reduced spaces
  • 50x5 mm slot size: normal labels, booklet and multi-layer labels
  • Teach-in or dynamics setting: easy and fast procedure, possible while the labels film is moving
  • From $101
<p>The slot photoelectric sensors of the SR23 series, with 50x5 mm slot size, are designed for the detection of normal labels, as well as thick booklet and multi-layer ones, used increasingly in the food and pharmaceutical industries. The series distinguishes itself through its fast 40 µs response time and its switching frequency reaching 12kHz, and offers an easy static or dynamic procedure setting, via SET push-button or remote input. The emission is infrared LED with a narrow light beam, allowing resolutions up to 0,5 mm. All models, characterized by a compact metallic housing and by a M5 threaded hole, a Ø5x8 slotted hole, and the dovetail guide are universal mountable. 2 m cable or M8 4-pole connector versions are available, and with NPN or PNP outputs.</p><b>Features:</b> <ul> <li>50x5 mm slot size: normal labels, booklet and multi-layer labels</li> <li>Teach-in or dynamics setting: easy and fast procedure, possible while the labels film is moving</li> <li>12 kHz switching frequency: high detection repeatability</li> <li>Compact housing: suitable for application with reduced spaces</li> <li>0.5 mm minimum size label/gap: high detection reliability for a precise reading</li> </ul> <b>Applications:</b> <ul> <li>Processing and Packaging machinery</li> <li>Automatic labelers</li> <li>Print and apply systems</li> </ul>
SKU: Datalogic SR23 Series Fork Sensors
Call for Price

Technical Specifications

SKU: Datalogic SR23 Series Fork Sensors
Manufacturer Datalogic
SKUDatalogic SR23 Series Fork Sensors
SeriesSR23
