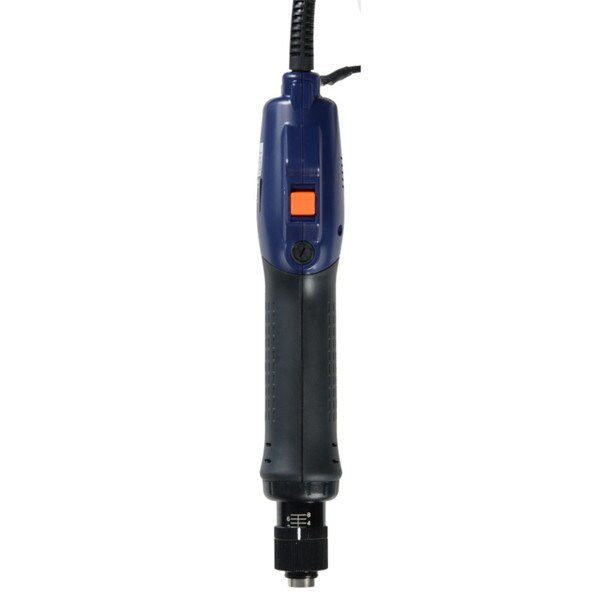

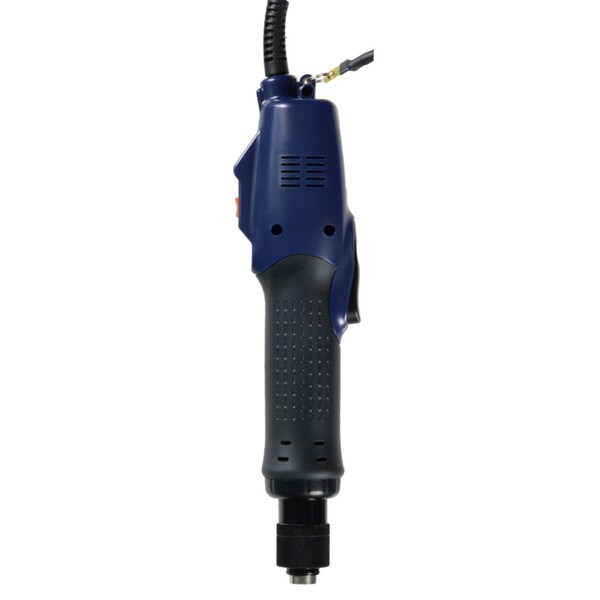

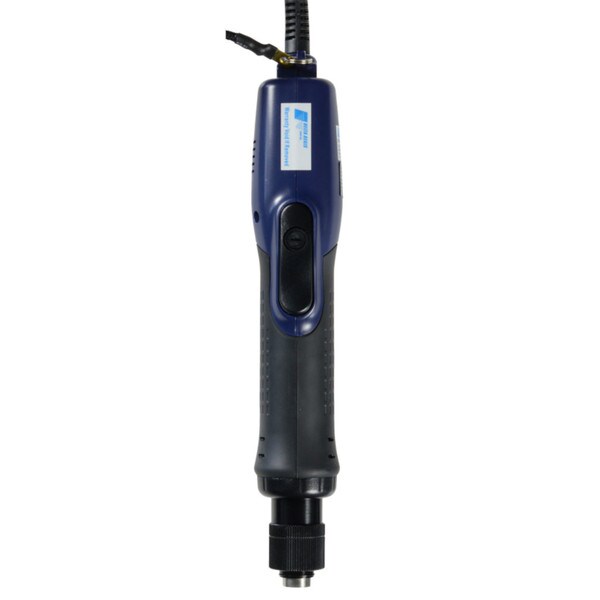

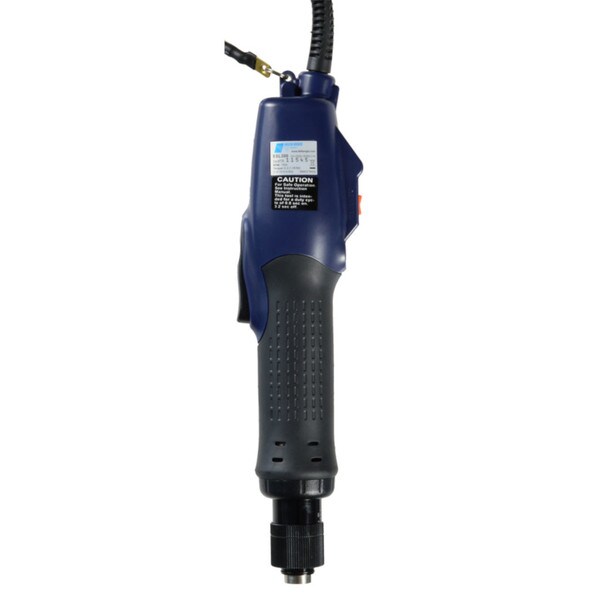

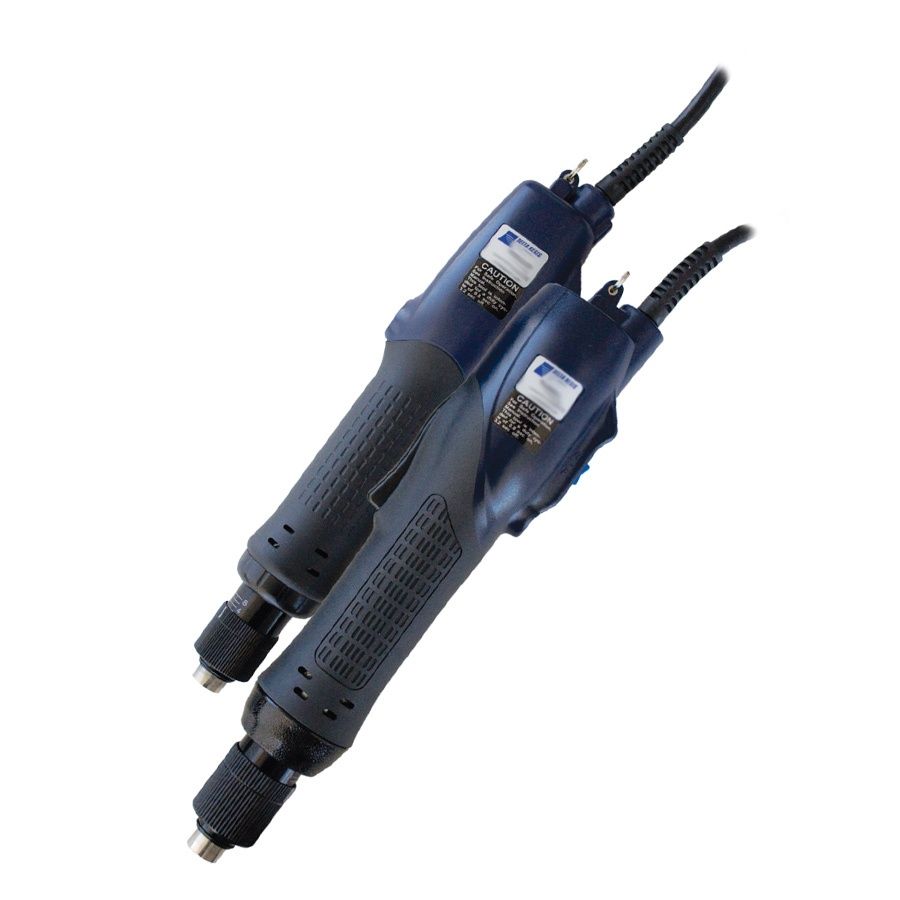

ESL300 | Inline Electric Screwdriver, 0.8 - 10.4 in lbs, 1/4'' hex, 1000 rpm, Lever
Overview
Introducing the Delta Regis Inline Electric Screwdriver, a remarkable assembly tool that combines power, precision, and efficiency. Designed and manufactured by Delta Regis, this electric screwdriver takes your fastening tasks to the next level with its impressive capabilities.
- Min Torque(In Lb: 0.8)
- Max Torque(In Lb: 10.4)
- Drive Size: 1/4'' hex
- Free Speed(RPM): 1000
- Voltage: 120V
- Start Type: Lever
Features & Benefits
- Unrivaled Torque Performance: With a maximum torque of 10.4 in lbs (1.18 Nm), the Delta Regis Inline Electric Screwdriver effortlessly handles various fastening applications, ensuring optimal tightening results.
- Versatile Speed Control: Operating at a speed of 1000 rpm, this electric screwdriver offers precise control and versatility to accommodate different assembly requirements.
- Durable Hex Drive: Equipped with a 1/4'' hex drive, the screwdriver ensures compatibility with a wide range of bits, enhancing its versatility in various applications.
- Convenient Lever Start: The lever start mechanism provides a smooth and intuitive operation, minimizing user fatigue and maximizing productivity during assembly processes.
Technical Specifications
SKU: ESL300
SKU
ESL300
Manufacturer
Delta Regis
Model
ESL300
MPN
ESL300
Stock Code
Drive size
1/4'' hex
Drive Type
1/4'' hex
Free Speed (RPM)
1000
Max Free Speed (rpm)
1000
Power Source
120VAC
Series
ESL3
Torque Range (In Lbs)
1.8 - 10.4
Torque Range (Nm)
0.2 - 1.18
Weight
1.2 lbs
Technical Documents
Delta Regis Direct Plugin Shut Off Clutch Electric Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the ESL300?
What type of application is the ESL300 best suited for?
Electric Torque Screwdrivers like the ESL300, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ESL300 is an Inline model with a Auto Shut Off clutch.
How do I set the torque on the ESL300?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the ESL300 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
