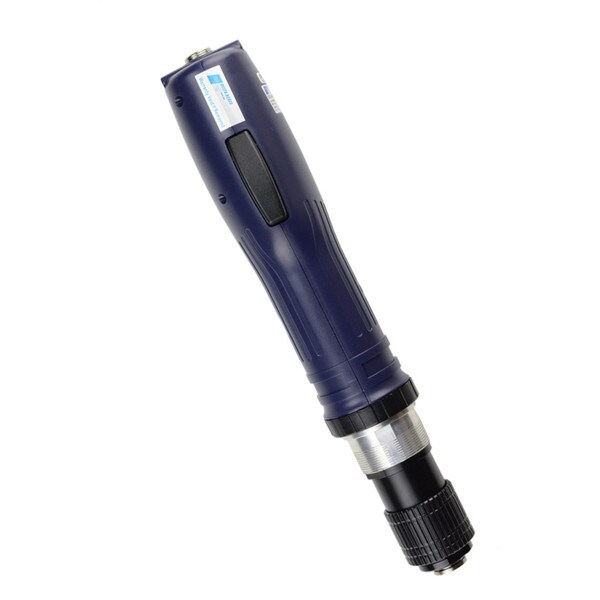

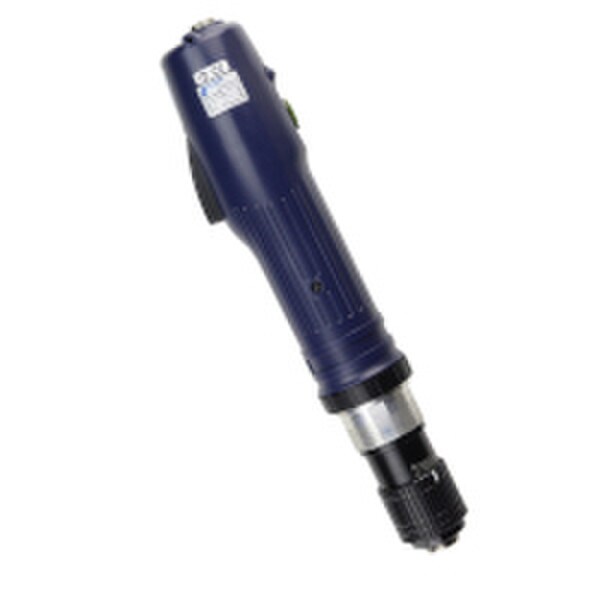

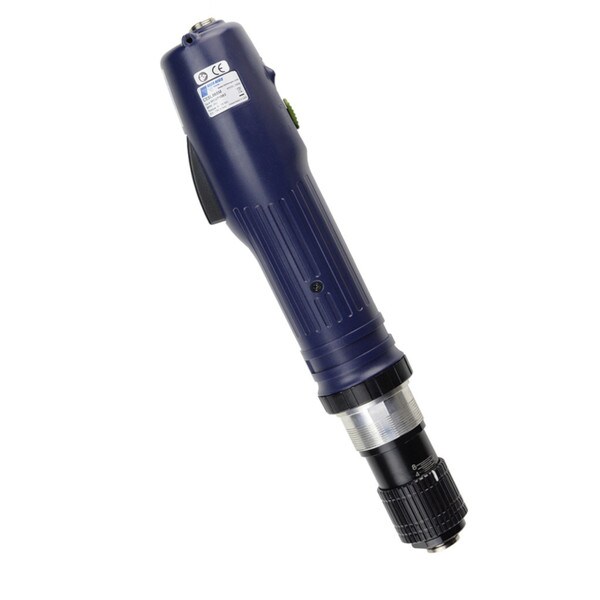

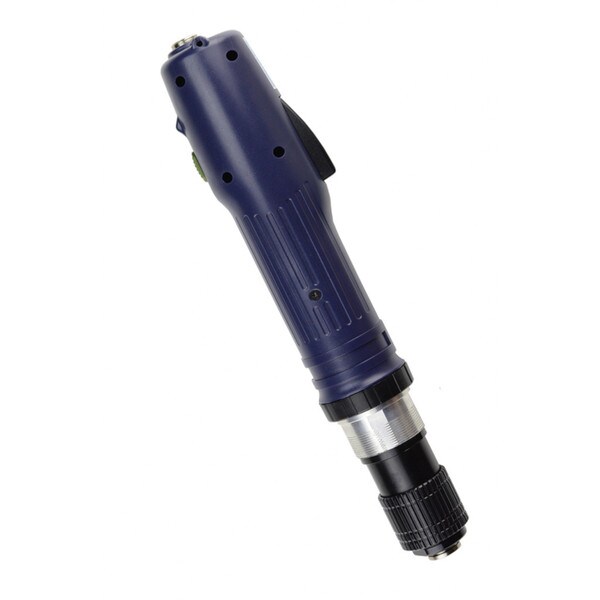

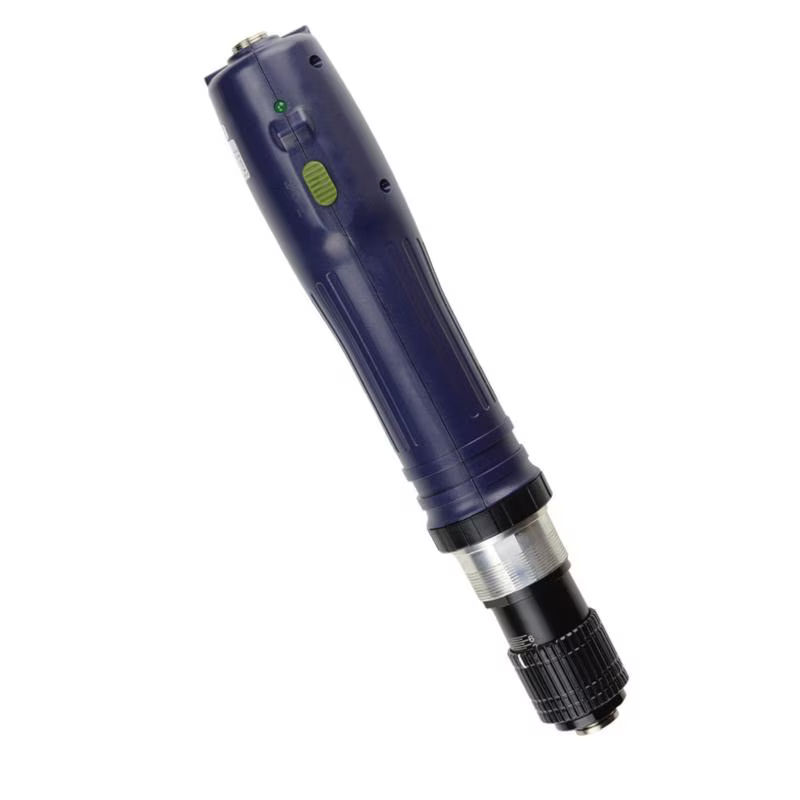

CESL865M | Inline Electric Screwdriver, 40V, 6 - 18 Nm, 350 / 260 rpm, Lever Start
Overview
Introducing the Delta Regis Inline Electric Screwdriver, a powerful and versatile tool designed to streamline your assembly processes. This 40V electric screwdriver combines precision, performance, and durability to meet the demands of various applications.
- Chuck Size: 1/4'' hex
- Speed: 350 / 260 rpm
- Body Style: Inline
- Voltage: 40V
- Model Number: CESL865M
- Manufacturer: Delta Regis
Features & Benefits
- Impressive Torque Range: With a torque range of 6 - 18 Nm, this electric screwdriver delivers the necessary power to handle a wide range of fastening tasks with ease.
- Variable Speed Control: The screwdriver offers two speed settings - 350 rpm and 260 rpm - allowing you to adjust the speed according to the specific requirements of your project.
- Inline Design: The inline configuration of this screwdriver provides improved access in confined spaces, making it ideal for intricate assembly tasks.
- Lever Start Mechanism: The convenient lever start mechanism ensures effortless operation, minimizing user fatigue during prolonged use.
Technical Specifications
Model
CESL865M
Drive size
1/4'' hex
Manufacturer
Delta Regis
Free Speed (RPM)
350 / 260
SKU
CESL865M
Style
Inline
Min Torque (In Lb)
53
Max Torque (In Lb)
159
Min Torque (Nm)
6
Max Torque (Nm)
18
Max Free Speed (rpm)
350
Weight (lbs)
3.2
Series
CESL8
Voltage
40V
Technical Documents
Delta Regis CESL 40V Brushless Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the CESL865M?
What type of application is the CESL865M best suited for?
Electric Torque Screwdrivers like the CESL865M, are most commonly used for medium to heavy assembly applications where precise torque control is required. The CESL865M is an Inline model.
How do I set the torque on the CESL865M?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the CESL865M have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
