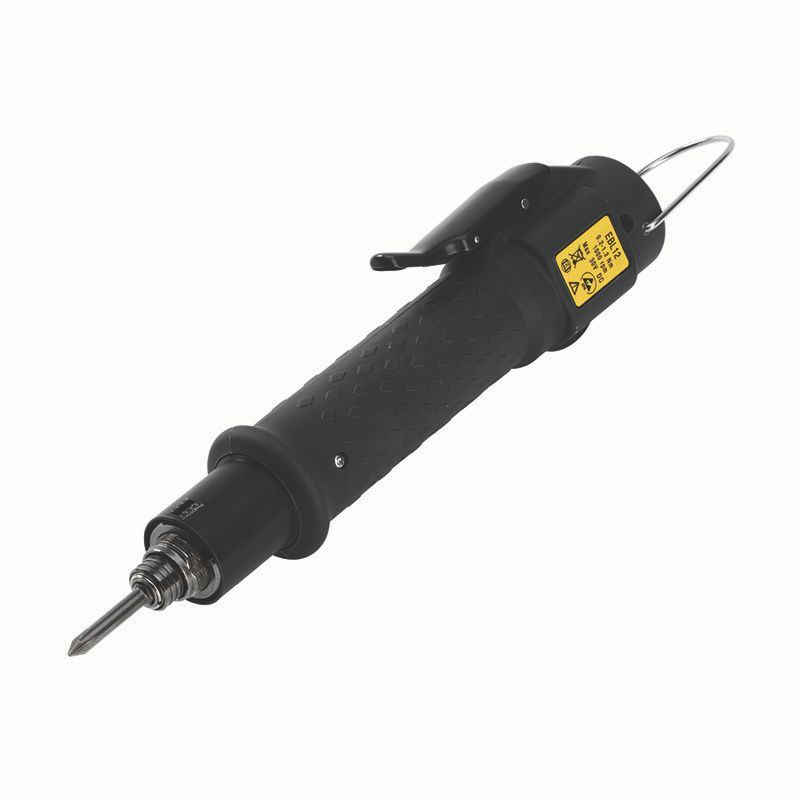

Atlas Copco 8431 0170 11 | EBL12 | Inline Brushless Electric Screwdriver, 0.2 - 1.2 Nm, 910 rpm, 1/4'' hex

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Atlas Copco 8431 0170 11 | EBL12 | Inline Brushless Electric Screwdriver, 0.2 - 1.2 Nm, 910 rpm, 1/4'' hex

Call for Price
Atlas Copco

Details

Introducing the EBL12 Inline Brushless Electric Screwdriver - a revolutionary assembly tool that combines cutting-edge technology with superior ergonomics. Engineered by Atlas Copco, this electric screwdriver sets new standards for low torque screwdrivers in the industry.

  • Min Torque(In Lb): 1.8
  • Max Torque(In Lb): 10.6
  • Speed(RPM): 910
  • Drive Size: 1/4'' hex
  • Inline
  • Auto Shut Off

Elevate your low torque assembly operations with the Atlas Copco EBL12 Inline Brushless Electric Screwdriver. Its combination of advanced technology and superior ergonomics guarantees increased productivity, making it the smart choice for demanding low torque applications. Invest in the EBL12 and experience the future of electric screwdrivers today.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Unrivaled Durability: Equipped with a state-of-the-art brushless motor, the EBL12 delivers exceptional power and efficiency. Its long-lasting performance outshines traditionally powered competitors, ensuring consistent and reliable operation.
  • Unmatched Comfort: The EBL12 boasts a unique patented ergonomic design that provides unparalleled operator comfort. Its well-thought-out shape and grip minimize fatigue, allowing for extended use without strain.
  • Reporting and Batch Count Capability: The EBL12 comes with advanced reporting and batch count capabilities. This feature enables users to monitor and track assembly data, enhancing productivity and quality control.
  • Configurable Start Options: The EBL12 offers the flexibility of choosing between a push or lever start mechanism. This customization empowers users to select the most comfortable and efficient starting method based on their preferences and task requirements.

Technical Information

Technical Specifications

Technical Specifications

SKU: 8431 0170 11
Manufacturer Atlas Copco
Model EBL12
Stock CodeC
Bit Size 1/4" Hex
Drive size 1/4'' hex
Drive Type 1/4'' hex
Free Speed (RPM) 910
Length (mm) 215
Max Free Speed (rpm) 910
Screw Size M2-3
Torque Range (In Lbs) 1.8 - 10.6
Torque Range (Nm) 0.2 - 1.2
Weight1.1 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Videos & Media

Frequently Asked Questions

Learn more about our products

01What is the torque range of the EBL12?

The EBL12 has a torque range from 1.8 to 10.6 in lbs (0.2 - 1.2 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

02What type of application is the EBL12 best suited for?

03How do I set the torque on the EBL12?

04Does the EBL12 have a warranty?
