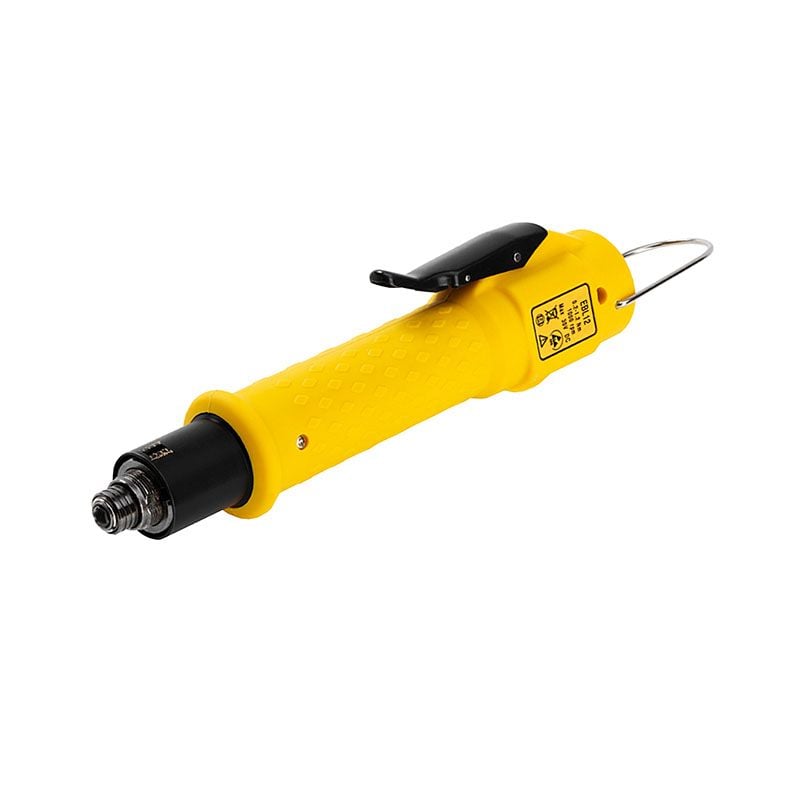

8431 0170 19 | EBL20-RE | Inline Brushless Electric Screwdriver, reporting, 0.5 - 2 Nm, 750 rpm, 1/4'' hex

(0)No Reviews yet

Elevate your low torque assembly operations with the EBL20-RE Brushless Electric Screwdriver. Experience unrivaled accuracy, superior ergonomics, configurable start options, reporting capabilities, and a unique non-tamper torque setting. Trust in the durability and reliability of Atlas Copco's innovative technology to boost productivity and efficiency in your assembly line.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Introducing the EBL20-RE Brushless Electric Screwdriver, a revolutionary assembly tool that combines cutting-edge technology with superior ergonomics. Engineered by Atlas Copco, this electric screwdriver sets new standards for low torque screwdrivers in the industry.

  • Min Torque(In Lb): 4.5
  • Max Torque(In Lb): 18
  • Speed(RPM): 750
  • Drive Size: 1/4'' hex
  • Inline
  • Auto Shut Off
Back

Features & Benefits

  • Unrivaled Accuracy: Equipped with an advanced brushless motor, the EBL20-RE delivers precise torque control, guaranteeing consistent and accurate fastening results with every use.
  • Superior Ergonomics: The EBL20-RE boasts a unique patented ergonomic design that provides unmatched operator comfort. Its well-balanced and lightweight construction minimizes fatigue, allowing for extended use without strain.
  • Reporting and Batch Count Capability: The EBL20-RE features reporting and batch count capabilities, enabling users to monitor and track fastening data, optimize processes, and enhance productivity.
  • Configurable Start Options: The screwdriver offers the flexibility of choosing between a push-to-start or lever start mechanism, accommodating different user preferences and assembly requirements.
Back

Technical Specifications

SKU: 8431 0170 19
length
215 mm
weight
1.1 lb
bitdrive
1/4' Hex
modeltype
Straight
screwcapacity
M2-3
shutoffsystem
Clutch
torquerangemax
2 Nm
torquerangemin
0.5 Nm
torquerangesoftjointmax
2 Nm
torquerangesoftjointmin
0.5 Nm
torquescatter3s
≤ 15 %
freespeed
750 r/min
speedrangemax
750 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s�
eaccertified
Yes
eulegislation
(EU) 2023/1230 (MR)
eustandard
EN 61000-3-3:2013+A1:2019+A2:2021​
kccertified
Yes
kcid
MSIP-REI-50A-EBL
ukregulations
S.I. 2008/1597
ukstandard
BS EN 61000-3-3:2013+A1:2019+A2:2021​
weee
5 - Small equipment <50cm
motorpower
15 W
motorvoltagesecond
20 V
motorvoltagetype
d.c.
motorvoltage
30 V
ingressprotectionrating
IP20
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the EBL20-RE?

The EBL20-RE has a torque range from 4.5 to 18 in lbs (0.5 - 2.0 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the EBL20-RE, are most commonly used for medium to heavy assembly applications where precise torque control is required. The EBL20-RE is an Inline model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
