Features & Benefits

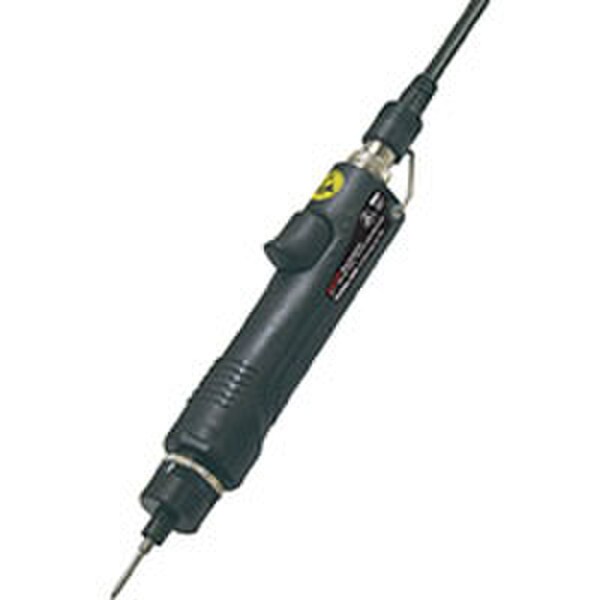

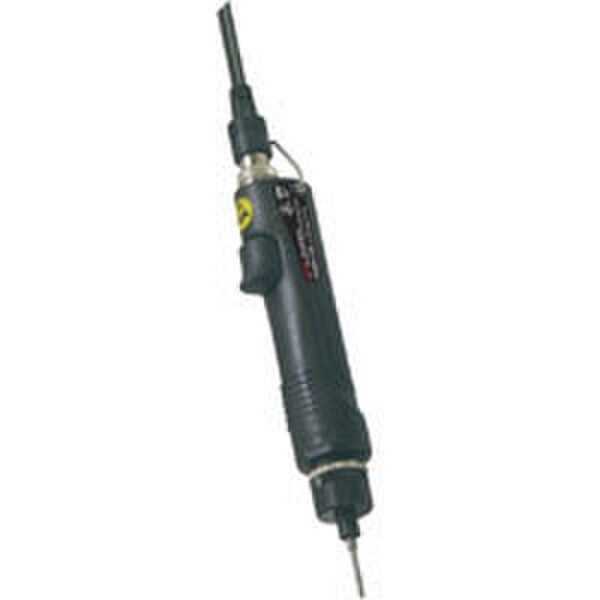

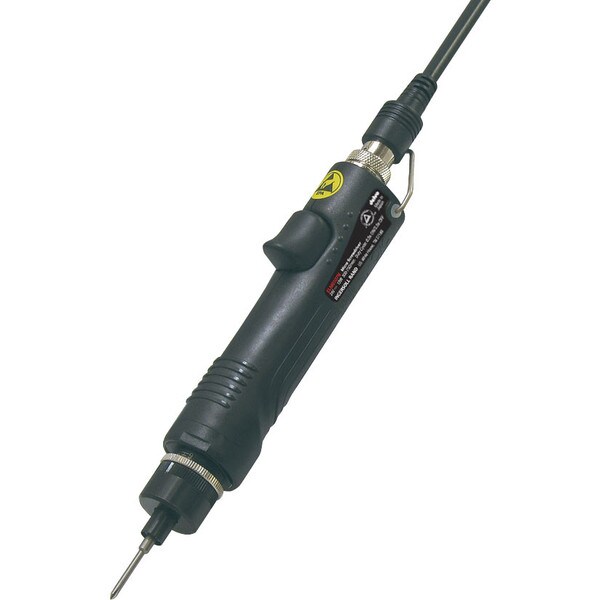

- Egg-Shaped Housing Design: The ELM0306N-IR features a unique egg-shaped housing that provides enhanced ergonomic comfort, reducing fatigue during prolonged use.
- Compact and Lightweight: Its compact and lightweight design allows for easy maneuverability and access to tight spaces, making it ideal for intricate assembly tasks.
- Easy to Use: With its simple and intuitive design, this micro electric screwdriver is easy to operate, even for inexperienced users.
- Electrostatic Discharge (ESD) Safe: The ELM0306N-IR is ESD safe, ensuring the protection of sensitive electronic components during assembly.
Technical Information
Technical Specifications
Technical Specifications
SKU: ELM0306N-IR
Manufacturer Ingersoll Rand
Model ELM0306N
Stock CodeC
Drive size 0.16 in
Drive Type 0.16 in
Free Speed (RPM) 600
Max Free Speed (rpm) 650
Torque Range (In Lbs) 1.33 - 3.54
Torque Range (Nm) 0.15 - 0.4
Voltage24 VDC
Weight0.51 lbs
We strive to provide as much technical information as possible. If you need more tech data, let us know!
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Videos & Media
Frequently Asked Questions
Learn more about our products
01What is the torque range of the ELM0306N?
The ELM0306N has a torque range from 1.33 to 3.54 in lbs (0.15 - 0.4 Nm).
Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?
