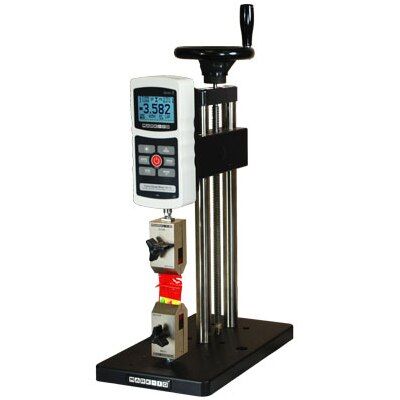

ES20 | Test stand, hand wheel-operated, 100 lbF / 500 N
Overview
Mark-10 ES20
Test Stand, Hand Wheel Operated, 100 Lb

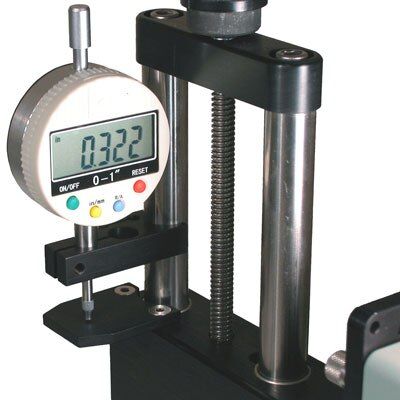

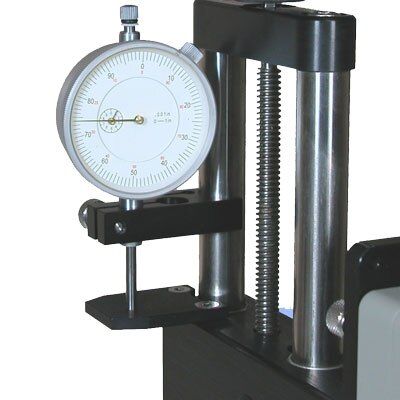

The ES10 and ES20 manual test stands are compact and economical solutions for compression and tensile testing of small samples. Choose between a lever (ES10) for quick-action testing or a hand wheel (ES20) for more precise testing with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use these stands with force gauges and grips to create complete and economical testing systems.
FEATURES
- Small size
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting

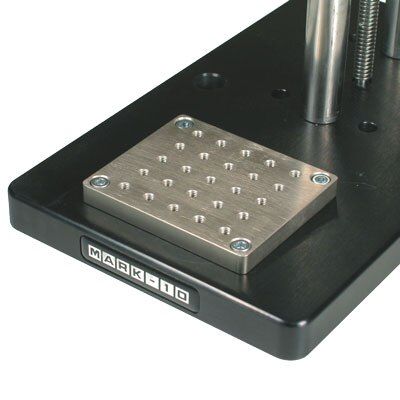

- Large base plate with 5 #10-32 UNF holes for fixture mounting
- Competitor force gauge mounting kits available
The ES20 test stands include the following accessories:
(1) Allen wrench set
(1) Hand wheel
(4) Thumb screw for force gauge
(1) Resource CD
Features & Benefits
- hand wheel operated
- Compatible with all Mark-10 force gauges, accessories and grips
- Compact size
- Mounting holes for bench mounting
Technical Specifications
SKU: ES20
Model
ES20
Type
Manual Test Stand
Manufacturer
Mark-10
Capacity
100 lbF / 500 N
Load Capacity
100 lbF / 500 N
SKU
ES20
Weight Capacity (Lb)
100

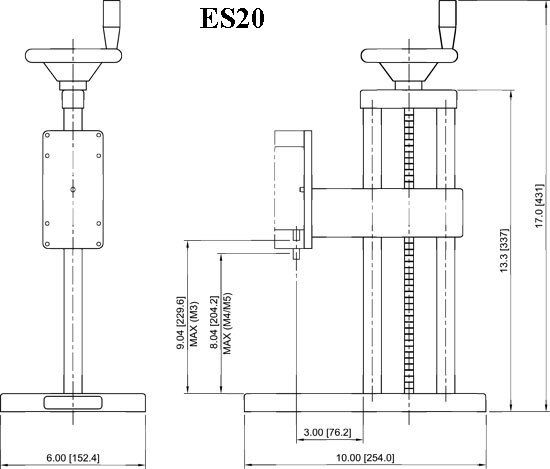

Dimensions
10 x 17 in
Travel (mm)
229
Weight (lbs)
28
Series
ES20
Travel (in)
9
Capacity (lbs)
100
Technical Documents
Data Sheet (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
