Overview

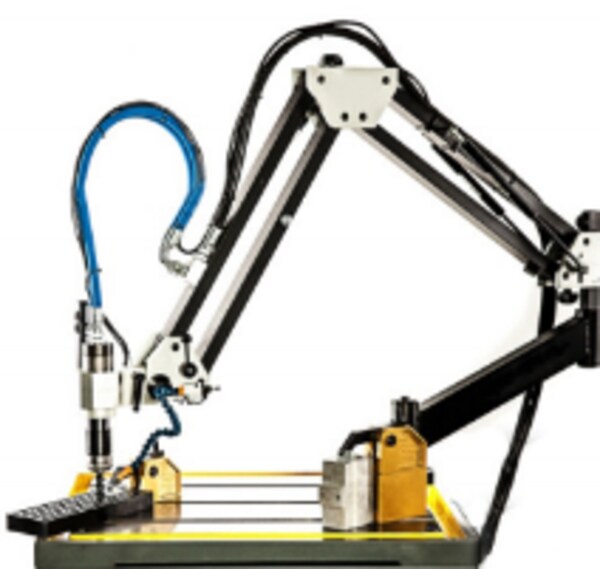

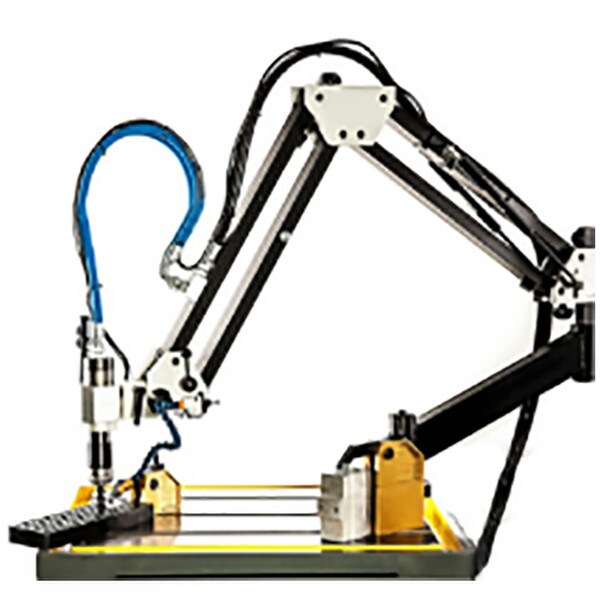

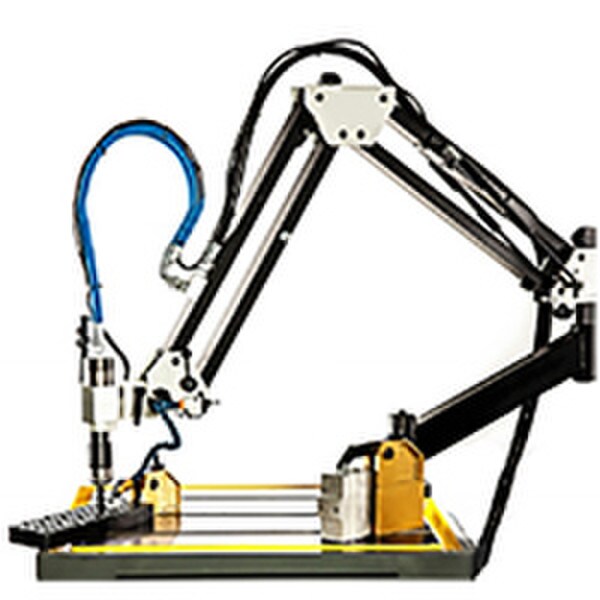

FLEXARM Hydraulic Tapping Arm with multi-position head, 5/8" capacity, Size 2 Quick change chuck

The GHM-18-I Hydraulic Tapping Arm operates on 110 Volts, providing a reliable power source for consistent performance. Its independent speed control allows you to adjust the tapping speed according to the specific requirements of your project. This flexibility ensures optimal results and enhanced productivity.

The GHM-18-I Hydraulic Tapping Arm offers a generous tap capacity ranging from #6 up to 5/8", accommodating a wide range of tapping needs. With a working range of 14" to 72" in, this tapping arm provides ample reach.

Equipped with a variable speed 100-420 RPM motor, the GHM-18-I Hydraulic Tapping Arm offers precise control over the tapping process. The adjustable speed settings allow you to match the tapping speed to the material being worked on, reducing the risk of damage or breakage.

GHM-18-I

The GHM-18-I Hydraulic Tapping Arm is designed with a Size 2 Quick Change Chuck, providing convenient tool changes. This feature allows for quick and easy swapping of taps, reducing downtime and enhancing productivity during tapping operations.

With optional step-less quick clamps, positioning your workpiece and securing it in place becomes effortless. These clamps provide a reliable hold, allowing for accurate tapping operations.

The FlexArm Automatic Depth Stop is an optional accessory that enables precise depth control during tapping. It allows operators to set and maintain consistent tapping depths, ensuring uniform results across multiple workpieces. The option for digital depth control further enhances repeatability.

The GHM-18-I Hydraulic Tapping Arm features a multi-position head with a 360-degree tapping adapter. This innovative design allows for quick changes between vertical and horizontal tapping orientations, providing flexibility and adaptability to suit various workpiece configurations.

Read More
Back

Features & Benefits

  • Operates on 110 Volts for reliable power source
  • Independent speed control for adjustable tapping speed
  • Working range of 14" to 72" in for ample reach
  • Tap capacity: #6 up to 5/8" for versatility
  • Automatic Depth Stop for precise depth control (optional)
  • Optional step-less quick clamps for secure workpiece positioning
  • Precise control over tapping speed for optimal results
  • Efficient and convenient tapping operations
  • Multi-Position Head with 360-degree tapping adapter for flexible tapping orientations
  • Variable speed 100-420 RPM motor for precise control
  • Size 2 Quick Change Chuck for quick and easy tool changes
  • Flexibility to adapt to different tapping orientations
  • Precise depth control for consistent tapping depths (with optional Automatic Depth Stop)
  • Secure workpiece positioning for stable and accurate tapping
  • Quick and easy tool changes for reduced downtime
  • Adjustable speed settings for matching tapping speed to materials
Back

Technical Specifications

Type
Hydraulic Tapping Arm
Manufacturer
Flexarm
Free Speed (RPM)
Variable Speed 100-420
SKU
GHM-18-I
Reach
14 - 72 in
Max Torque (Ft Lb)
59
Tapping Capacity
5/8
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

How does the independent speed control feature benefit my tapping operations?

The independent speed control feature of the GHM-18-I Hydraulic Tapping Arm allows you to adjust the tapping speed according to the specific requirements of your project. This flexibility ensures optimal results by matching the tapping speed to the material being worked on. It allows for precise control, reduces the risk of damage or breakage, and enhances productivity during tapping operations.
Absolutely! The GHM-18-I Hydraulic Tapping Arm offers a wide tap capacity ranging from #6 up to 5/8" and a working range of 14" to 72" in. This versatility allows you to handle various workpiece sizes and configurations.
The optional Automatic Depth Stop for the GHM-18-I Hydraulic Tapping Arm allows you to control the depth of each tap and maintain consistency across multiple workpieces. By setting the desired tapping depth, you can ensure uniform results and save time by eliminating the need for manual depth adjustments. The option for digital depth control further enhances accuracy, making it an invaluable tool for achieving precise tapping depths.
