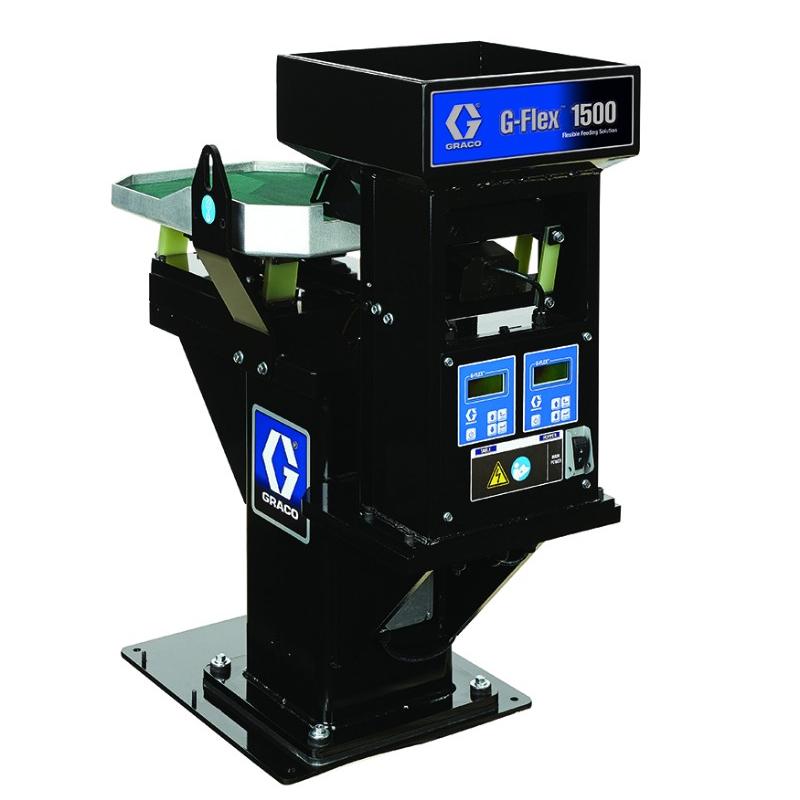

Graco Graco G-Flex 1500 Parts Feeder

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Graco Graco G-Flex 1500 Parts Feeder

Rating:
(0)No Reviews yet
Call for Price
Graco

Details

Born out of necessity. Designed from experience.

Founded in 1926, Graco is a leading global manufacturer and marketer of fluid handling systems and components. The company’s success has been built on its unwavering commitment to technical excellence and world-class manufacturing.

Several years ago Graco was involved in a manufacturing automation project and struggled to find suitable commercially available parts feeding solutions to work with vision guided robots. Bowl feeders lacked the desired flexibility and we knew from experience that they can be a source of ongoing maintenance, cost, and headaches.

As a result, Graco engineers developed the G-Flex Flexible Parts Feeding Solution and placed several into operation within our own factory. Since that time, multiple G-Flex Solutions have been put into action in more Graco factories, and the results have been simply outstanding!

Features:
  • Delivers Flexible Feeding Benefits
    • Seamless part change-over without time consuming and costly set-up
    • High tolerance for process contamination (oily parts, chips, etc. are no problem)
    • Easily accommodates a wide range of part sizes and shapes
  • Stand-Alone, Easy-to-Integrate Package
    • One size fits most applications
    • Minimal interface is required – simply connect power and one PLC input
  • Great Value
    • Attractively priced as compared to complicated bowl feeders
    • Pre-configured to meet most applications - significantly shorter delivery lead times compared to unique and highly customized bowl feeders
  • Handles a Wide Range of Part Sizes and Geometries - Proven to work with a wide range of part sizes and shapes
  • Integrated Controls
    • Fully adjustable vibration magnitude, giving you control of part movement and speed
    • Active feedback from table to controller automatically adjusts vibration frequency as more or less weight is added to the recirculating table
    • Pin out / password protected access
  • Easy to Place in Service - Only 2 points of connection required. Connect power to junction box and Connect PLC input via M12 connection
  • Large Capacity Hopper
    • Dispenses parts on-demand from hopper to table
    • Fill your hopper while your line is running – no more production interruptions
  • Uniquely Designed Feeder Table
    • Recirculates parts that are not locatable, bringing them back to robot’s field of view
    • Specifically selected carpet geometries keep the widest range of parts in circulation
    • Chamfered corners help prevent part accumulation
  • Heavy-Duty Base
    • Durable 1/2 inch plate steel stand
    • Solid 1 inch steel hopper platform and 1-1/2 inch steel table platform provides extra rigidity and support

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Large Hopper with a 0.9 ft3 Capacity
  • Easy to Integrate
  • Easy to Place

Technical Information
