Datalogic IEP58-S06-PROG-M12 / 95B081840

Incremental 58mm - shaft 6mm -16384PPr Prog - M12

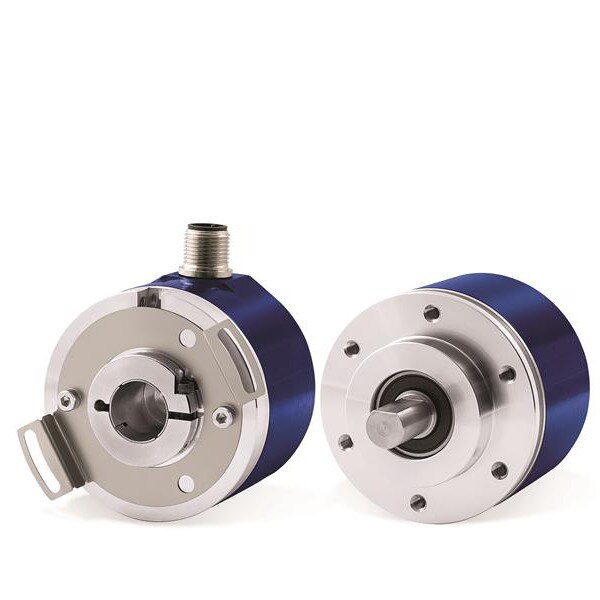

IEP58 programmable encoder line includes all mechanical coupling versions with ?ÿ6, 8 or 10 mm solid shaft and ?ÿ14 or 15 mm hollow shaft; whereas the electrical connection can be chosen amongst 1.5 m cable, M12 or M23 connector version.

The encoder programmability is feasible via PC?Æs USB port, using a dedicated sw on-line and programming tool available as accessory, allowing to set the resolution from 1 to 16384 pulse per revolution, the zero index length at 90?? or 180??, and the counting direction CW or CCW.

The reduction of part numbers provided by the programmability, along with very affordable prices, make the IEP58 the ideal encoder line to stock for distributors, system integrators and machinery manufacturers.

Features:
  • Standard dimension Ø58mm
  • Hollow or solid shaft
  • High resolution up to 16384 PPR
  • Programmable via USB cable
Applications:
  • Motion control
  • Automated machinery
  • Conveyor lines

IEP58 programmable encoder line includes all mechanical coupling versions with Ø6, 8 or 10 mm solid shaft and Ø14 or 15 mm hollow shaft; whereas the electrical connection can be chosen amongst 1.5 m cable, M12 or M23 connector version.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Technical Information

Technical Specifications

Technical Specifications

SKU: 95B081840-datalogic
Manufacturer Datalogic
Model 95B081840
Communication M12 Connector
Connection M12 Connector
Diameter - mm 58
Series AMT / AST / ENC
Type Incremental Solid Shaft Encoder
