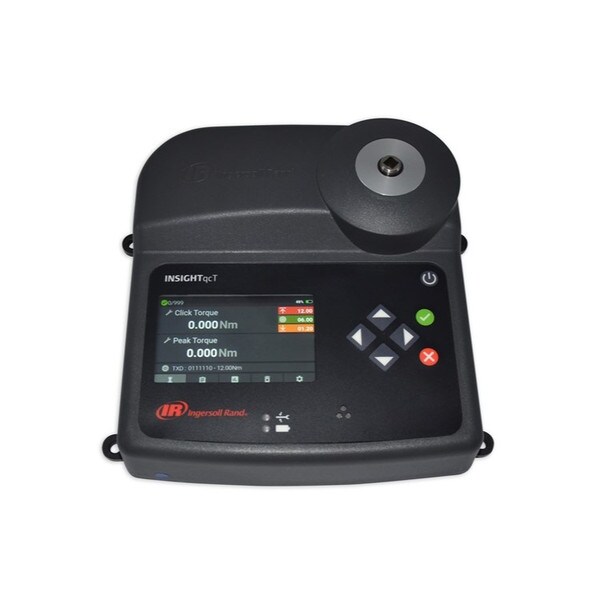

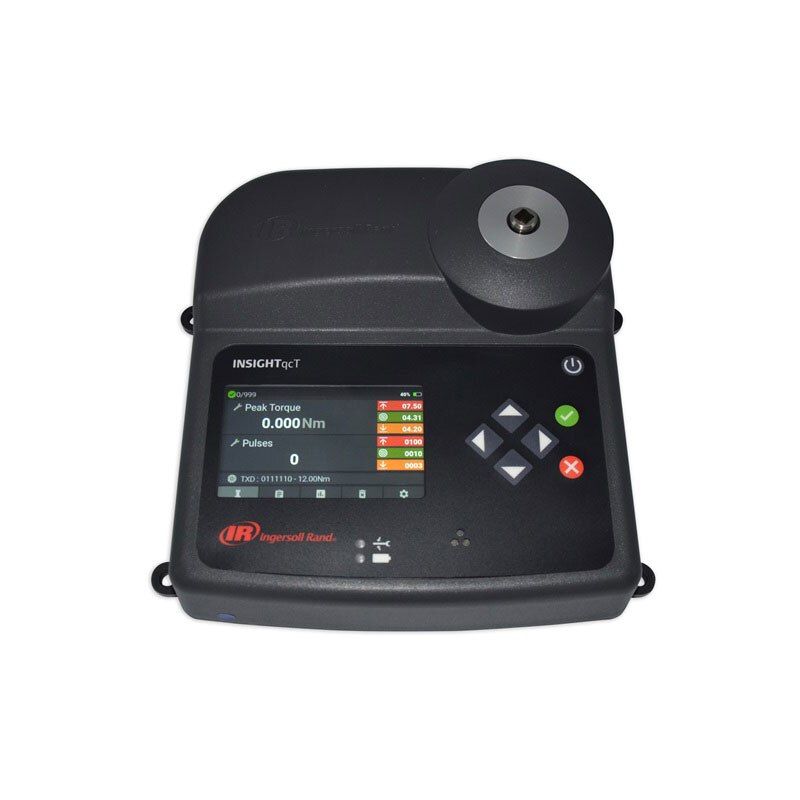

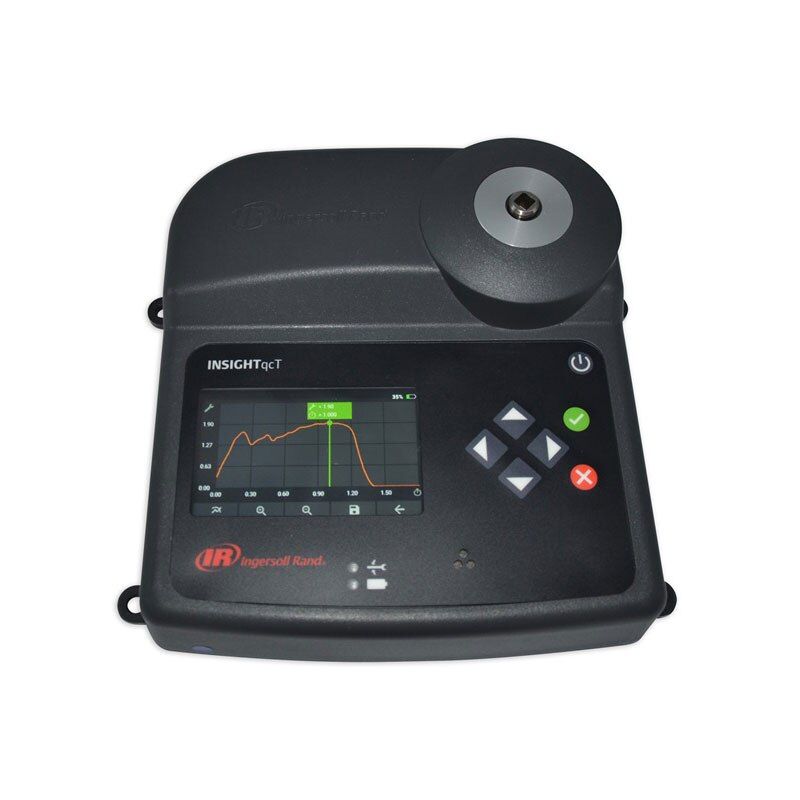

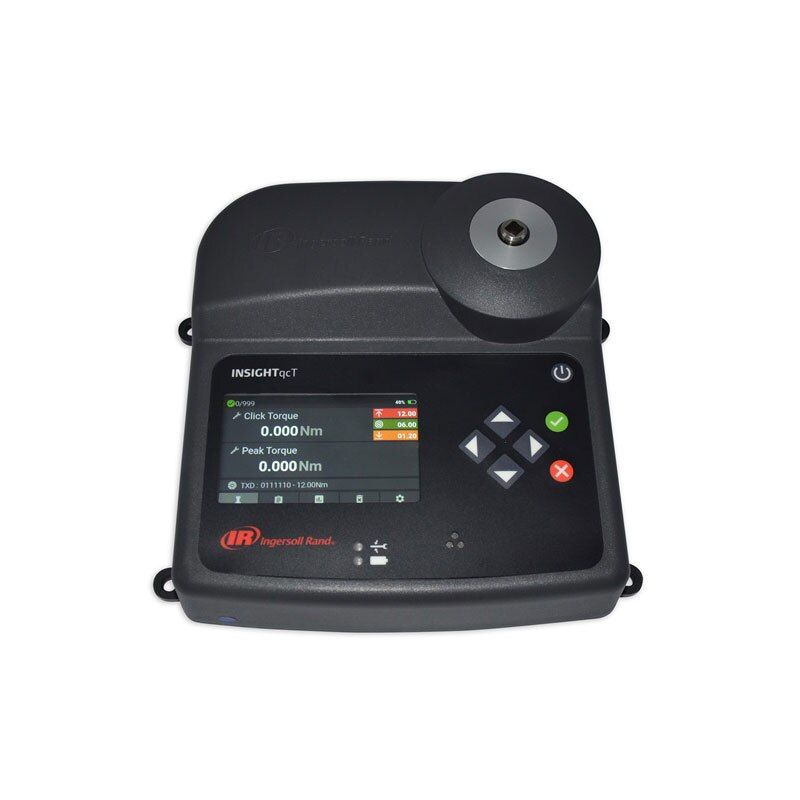

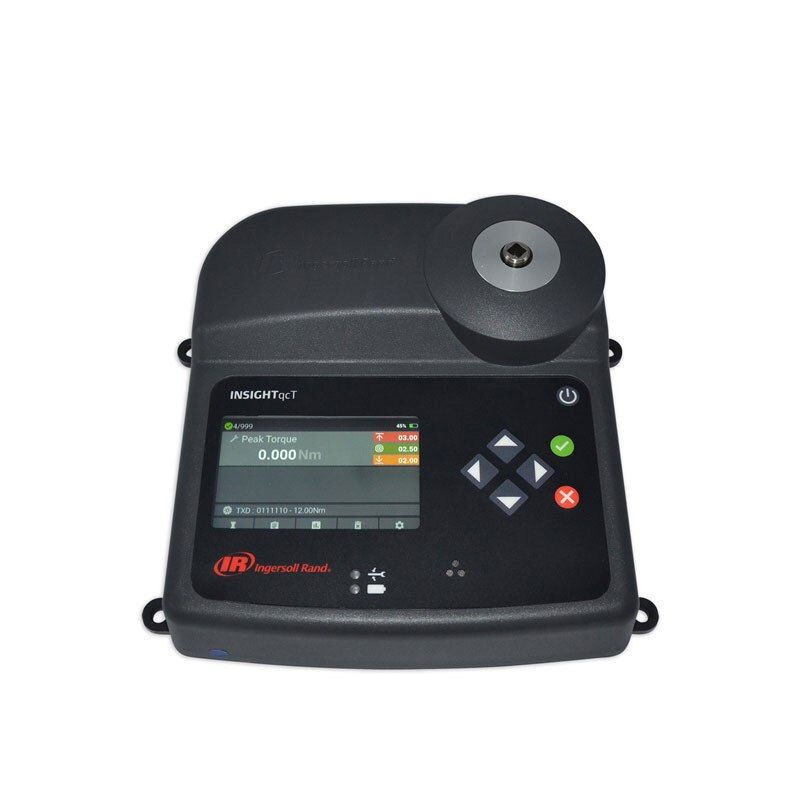

IQCTA | INSIGHTqcTTM TORQUE ANALYZER

(0)No Reviews yet

Portable, high-precision torque analyzer with Smart and Industry Standard transducer compatibility. Emulates joint conditions and provides repeatable, traceable torque data for assembly quality control.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

High-Precision Torque Measurement Anywhere

The Ingersoll Rand IQCTA | INSIGHTqcT Torque Analyzer offers portable, high-accuracy torque testing for industrial and assembly applications. Its compact design enables dynamic measurement directly on the workbench or in-field, ensuring reliable results wherever you need them.

Smart & Industry Standard Transducer Compatibility

Pair the IQCTA Analyzer with automatically recognized Smart or Industry Standard transducers to measure torque output in both directions. This flexibility ensures compatibility with a wide range of precision fastening tools and applications.

Advanced Joint Simulation

Joint simulators emulate different joint rates, from hard to soft, supporting both stationary and rotary transducers. This allows accurate testing away from the application while replicating real-world fastening conditions.

Data-Driven Quality Control

Designed for automotive, aerospace, electronics, and general manufacturing, the IQCTA Analyzer delivers repeatable, traceable torque data. Its precise measurements support quality assurance, process optimization, and data-driven decision-making for high-volume assembly operations.

Back

Features & Benefits

  • Portable Design – Take precise torque measurements anywhere, on the bench or in-field.
  • Dual-Direction Measurement – Measures torque output both clockwise and counterclockwise.
  • Joint Simulation – Emulates hard and soft joint conditions for realistic testing.
  • Smart & Industry Standard Transducer Compatibility – Works seamlessly with a wide range of tools.
  • Traceable & Repeatable Data – Ensures consistent results and quality control.
  • Versatile Application – Ideal for automotive, aerospace, electronics, and industrial assembly.
Back

Technical Specifications

SKU: IQCTA-IR
Model
IQCTA
Type
Torque Analyzer
Manufacturer
Ingersoll Rand
SKU
IQCTA
Stock Code
3
Torque Range
0.1 to 30 Nm / 1 to 265 in-lb / Depends on connected transducer
Compatible Transducer
TRD
Data Transfer
TR
Auto Recognition
TRDA
User Interface
Soft-touch keypad with icon-based navigation
Data Storage Capacity
Up to 999 time-stamped readings
Statistical Analysis
Count, Range, Mean, MIN, MAX, Standard Deviation, Cm, Cmk, Cp, Cpk
Battery Type
Rechargeable Li-Ion with auto-shutdown
Data Export
USB port for CSV format
Joint Simulation
hard and soft
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What are the full capabilities of the IQCTA Torque Analyzer?

Full Statistical data includes Count, Range, Mean, MIN, MAX, Standard Deviation, Cm, Cmk, Cp, Cpk
The IQCTA Torque Analyzer is ideal for use with a broad range of external transducers to test output of tools for torque verification.
Carrying case, power supply, neck strap and manuals

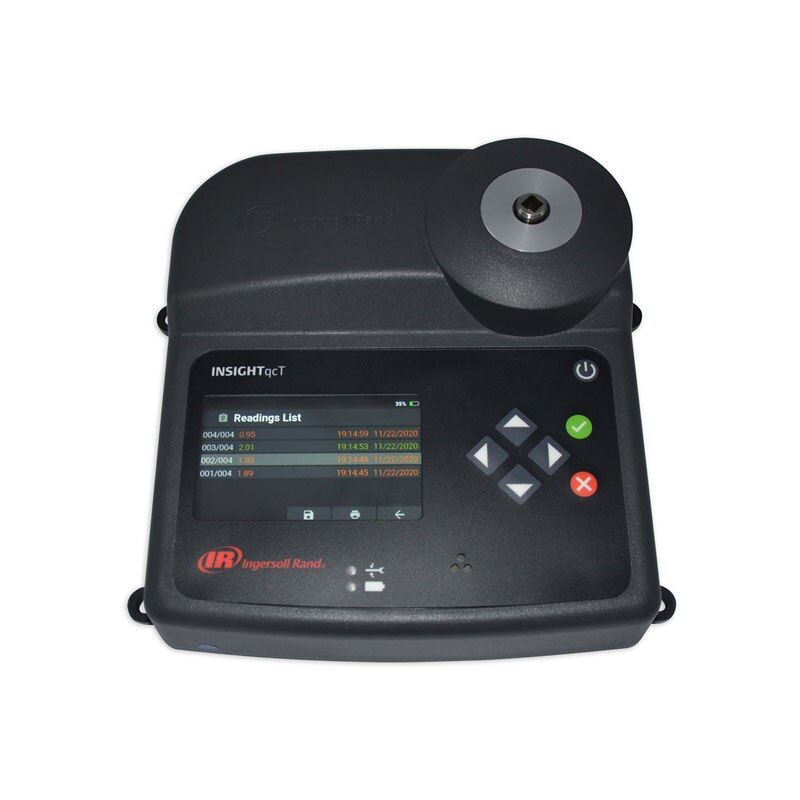

The IQCTA Torque Analyzer can store 999 time-stamped readings
You can export data from the IQCTA via USB. Data exported will be in a CSV stylesheet.
