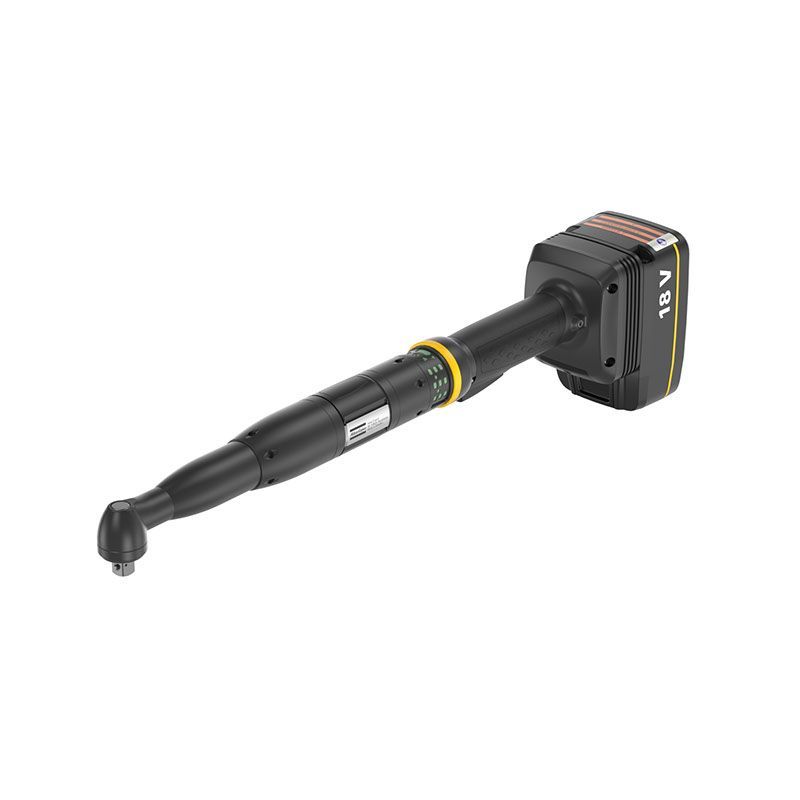

ITB-A31-20-10 | Cordless Torque Nutrunner, 5 - 22 Nm, 681 rpm
Features & Benefits
- 360° rotatable angle head and trigger
- 30% lighter and 30% shorter than the previous generation of battery tools
- Built-in gyroscope to reduce operator influence
Technical Specifications
SKU: 8436 0030 20
csdistance
14 mm
height
88.5 mm
length
453.5 mm
outputsize
3/8'
weight
3.7 lb
width
74.5 mm
modeltype
Angle
outputtype
Square, Male
shutoffsystem
Transducer
toolfamily
ITB
torquerangemax
22 Nm
torquerangemin
5 Nm
torquescatter3s
≤ 5 %
speedrangemax
681 r/min
soundpressure
< 70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
< 2.5 m/s²
capabilityclass
FK-MFU25
cmiitid
2020AJ15158
eaccertified
Yes
eulegislation
(EU) 2022/30
eustandard
EN 18031-1:2024
etlcontrolnumber
3008099
etllisted
Yes
etltext
6 - 62841-2-2
eusarvalue
0.55 W/kg
fccid
XF6-M7DB7
icid
8407A-M7DB7
kccertified
Yes
kcid
R-R-50A-IXB Series
toleranceclass
TK15
ukregulations
S.I. 2008/1597
ukstandard
EN 300 328 V2.2.2
weee
5 - Small equipment <50cm
battery
Li-Io 14/18/36 V
typeofbattery
1 Li-ion
weightinclbattery
4.9 lb
motorpower
1080 W
motorvoltagetype
d.c.
motorvoltage
35 V
