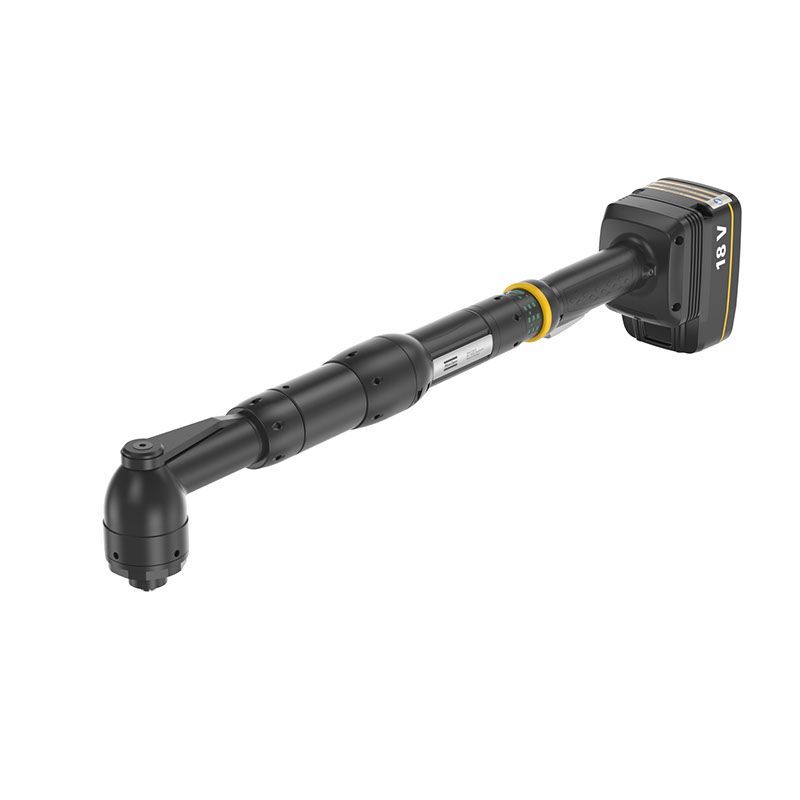

ITB-A61-200-20 | Cordless Torque Nutrunner, 40 - 200 Nm, 171 rpm
Features & Benefits
- 360° rotatable angle head and trigger
- 30% lighter and 30% shorter than the previous generation of battery tools
- Built-in gyroscope to reduce operator influence
Technical Specifications
SKU: 8436 0060 20
csdistance
27 mm
height
94 mm
length
578 mm
outputsize
3/4'
weight
7.7 lb
width
74.5 mm
modeltype
Angle
outputtype
Square, Male
shutoffsystem
Transducer
toolfamily
ITB
torquerangemax
200 Nm
torquerangemin
40 Nm
torquescatter3s
≤ 5 %
speedrangemax
171 r/min
soundpressure
< 70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
< 2.5 m/s²
capabilityclass
FK-MFU25
cmiitid
2020AJ15158
eaccertified
Yes
eulegislation
(EU) 2022/30
eustandard
EN 18031-1:2024
etlcontrolnumber
3008099
etllisted
Yes
etltext
6 - 62841-2-2
eusarvalue
0.55 W/kg
fccid
XF6-M7DB7
icid
8407A-M7DB7
kccertified
Yes
kcid
R-R-50A-IXB Series
toleranceclass
TK15
ukregulations
S.I. 2008/1597
ukstandard
EN 300 328 V2.2.2
weee
4 - Large equipment >50cm
battery
Li-Io 18/36 V
typeofbattery
1 Li-ion
weightinclbattery
8.8 lb
motorpower
1500 W
motorvoltagetype
d.c.
motorvoltage
35 V
Technical Documents
Atlas Copco Tensor IxB Cordless Tools Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
