ES60P | 115V Inline Electric Screwdriver, Push to Start, 4.4 - 17 in lbs
- 360°
- Overview
- Features & Benefits
- Technical Specifications
- Technical Documents
- Frequently Asked Questions
Overview

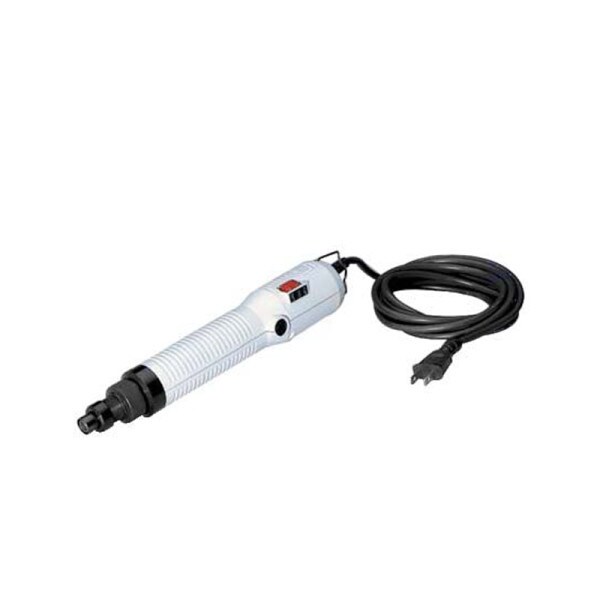

Introducing the Ingersoll Rand ES60P-IR 115V Inline Electric Screwdriver, a powerful and versatile assembly tool designed to enhance your productivity and efficiency. With its impressive speed and performance, this screwdriver is perfect for all-day tasks, increasing your productivity and efficiency.
- Min Torque(In Lb): 4.4
- Max Torque(In Lb): 17
- Drive Size: 1/4'' hex
- Free Speed(RPM): 1000
- Voltage: 115V
- Start Type: Push to Start
Features & Benefits
- Variable Soft-Start Adjustment: The ES60P-IR features a variable soft-start adjustment, allowing you to control the speed and torque output with precision, ensuring optimal performance for delicate tasks.
- RoHS Compliant: This electric screwdriver is RoHS compliant, ensuring it meets strict environmental standards and regulations.
- 1/4'' Hex Drive: The 1/4'' hex drive size provides versatility and compatibility with a wide range of screwdriver bits.
- Ergonomic Design: Designed with comfort in mind, the ES60P-IR features an ergonomic handle that reduces fatigue and discomfort during prolonged use.
Technical Specifications
SKU: ES60P-IR
SKU
ES60P
Manufacturer
Ingersoll Rand
Model
ES60P
MPN
ES60P
Stock Code
Drive size
1/4'' hex
Drive Type
1/4'' hex
Free Speed (RPM)
1000
Max Free Speed (rpm)
1000
Power Source
115VAC
Series
ES
Torque Range (In Lbs)
4.4 - 17
Torque Range (Nm)
0.5 - 1.9
Weight
1.5 lbs
UPC
00663023007625
Technical Documents
- Ingersoll Rand ES Electric Screwdrivers Catalog (PDF)
- Ingersoll Rand ES and AC Series Electric Screwdriver Product Information (PDF)
- Ingersoll Rand ES and AC Series Electric Screwdriver Parts Breakdown (PDF)
- Ingersoll Rand Electric Tools with Controller Safety Information (PDF)
- Ingersoll Rand ES and AC Series Electric Screwdriver Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the ES60P?
What type of application is the ES60P best suited for?
Electric Torque Screwdrivers like the ES60P, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ES60P is an Inline model with a Auto Shut Off clutch.
What is the accuracy or repeatability of the ES60P?
Most clutch controlled assembly tools have an accuracy / repeatability of +/- 10% however this is most commonly determined by the type of joint. A soft joint is going to be very forgiving while the tool can react adversely to a hard joint.
How do I set the torque on the ES60P?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the ES60P have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
