Features & Benefits

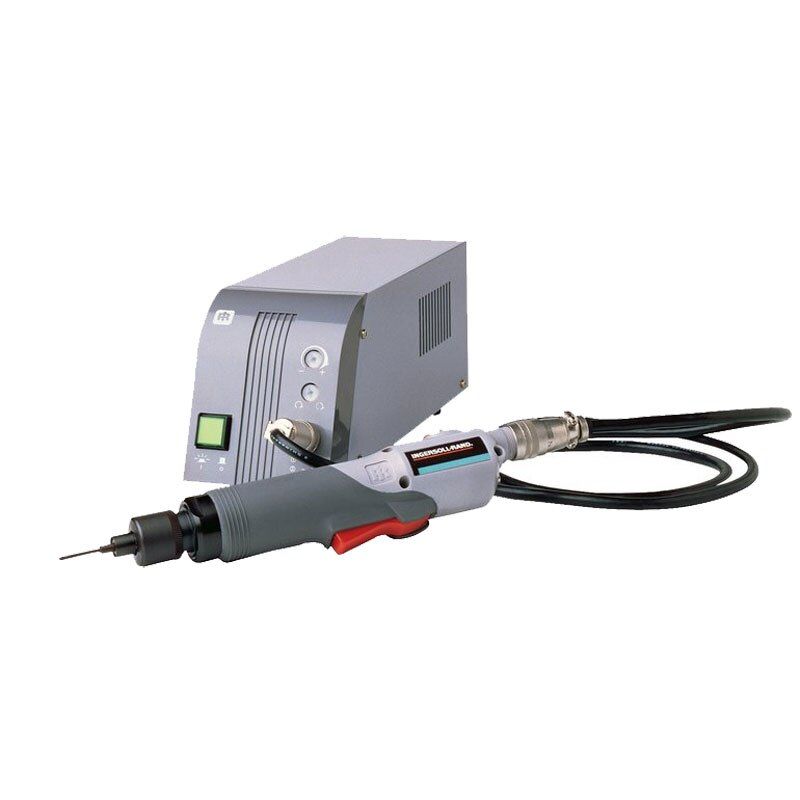

- Low Torque Range: The EL0109B-IR offers a torque range of 0.26 to 1.3 in lbs (0.03 to 0.15 Nm), making it ideal for delicate fastening tasks that require utmost precision.
- Lever Start Mechanism: Equipped with a lever start, this electric screwdriver provides precise control and ease of use. Simply apply gentle pressure on the lever to initiate fastening, ensuring consistent and accurate results.
- Electrostatic Discharge (ESD) Safe and RoHS Compliant: This electric screwdriver is ESD safe and RoHS compliant, making it suitable for use in sensitive electronic assembly environments. It minimizes the risk of electrostatic discharge, protecting delicate components from damage.
- Ergonomic Design: The EL0109B-IR boasts a well-balanced, compact, and lightweight design, ensuring user comfort during prolonged use. Its ergonomic grip minimizes fatigue and allows for effortless handling.
Technical Information
Technical Specifications
Technical Specifications
SKU: EL0109B-IR
Manufacturer Ingersoll Rand
Model EL0109B
Stock CodeC
Drive size 4 mm
Drive Type 4 mm
Free Speed (RPM) 950
Length (In) 9.25
Max Free Speed (rpm) 950
Power Source EC24N
Series VersaTec
Spindle4mm QC
Torque Range (In Lbs) 0.26 - 1.3
Torque Range (Nm) 0.03 - 0.15
Voltage24V
Weight0.7 lbs
We strive to provide as much technical information as possible. If you need more tech data, let us know!
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Videos & Media
Frequently Asked Questions
Learn more about our products
01What is the torque range of the EL0109B?
The EL0109B has a torque range from 0.26 to 1.3 in lbs (0.03 - 0.15 Nm).
Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?
