ES50T | 24V Inline Electric Screwdriver, Lever Start, 0.4 - 9 in lbs
- 360°
- Overview
- Features & Benefits
- Technical Specifications
- Technical Documents
- Videos & Media
- Frequently Asked Questions
Overview

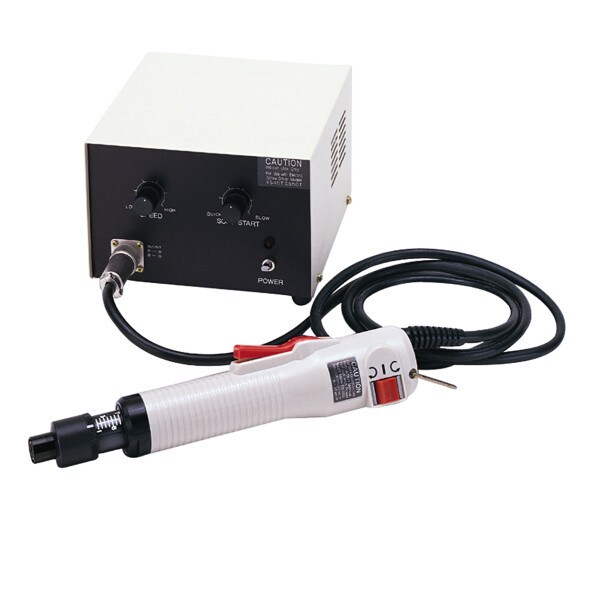

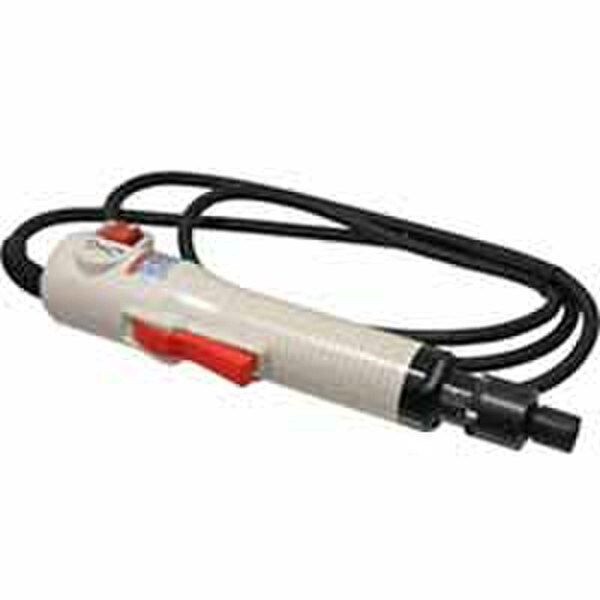

Introducing the Ingersoll Rand ES50T 24V Inline Electric Screwdriver, a powerful and versatile assembly tool designed to streamline your fastening processes. Engineered by Ingersoll Rand, this electric screwdriver combines speed, performance, and ergonomic design to deliver exceptional results.
- Min Torque(In Lb): 0.4
- Max Torque(In Lb): 9
- Weight(Lbs): 0.05
- Length(In): 1.02
- Drive Size: 1/4'' hex
- Free Speed(RPM): 650
Features & Benefits
- Variable Soft-Start Adjustment: The ES50T features a variable soft-start adjustment, allowing you to control the speed and torque output with precision, ensuring optimal performance for different fastening tasks.
- RoHS Compliant: This electric screwdriver meets RoHS standards, ensuring minimal environmental impact and compliance with global regulations.
- 1/4'' Hex Drive: The 1/4'' hex drive size offers versatility and compatibility with a wide range of fastening applications.
- Ergonomic Design: Designed with comfort in mind, the ES50T's ergonomic handle reduces fatigue and enhances user comfort during prolonged use.
Technical Specifications
SKU: ES50T-IR
SKU
ES50T
Manufacturer
Ingersoll Rand
Model
ES50T
MPN
ES50T
Stock Code
Drive size
1/4'' hex
Drive Type
1/4'' hex
Free Speed (RPM)
650
Max Free Speed (rpm)
650
Power Source
ESCB50
Series
ES
Torque Range (In Lbs)
0.4 - 9
Torque Range (Nm)
0.05 - 1.02
Weight
0.75 lbs
UPC
00663023007601
Technical Documents
- Ingersoll Rand ES Electric Screwdrivers Catalog (PDF)
- Ingersoll Rand ES45T ES50T ES50TC Electric Screwdriver Product Information (PDF)
- Ingersoll Rand ES45T ES50T ES50TC Electric Screwdriver Parts Breakdown (PDF)
- Ingersoll Rand Electric Tools with Controller Safety Information (PDF)
- Ingersoll Rand ES45T ES50T ES50TC Electric Screwdriver Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the ES50T?
What type of application is the ES50T best suited for?
Electric Torque Screwdrivers like the ES50T, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ES50T is an Inline model with a Auto Shut Off clutch.
How do I set the torque on the ES50T?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the ES50T have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
