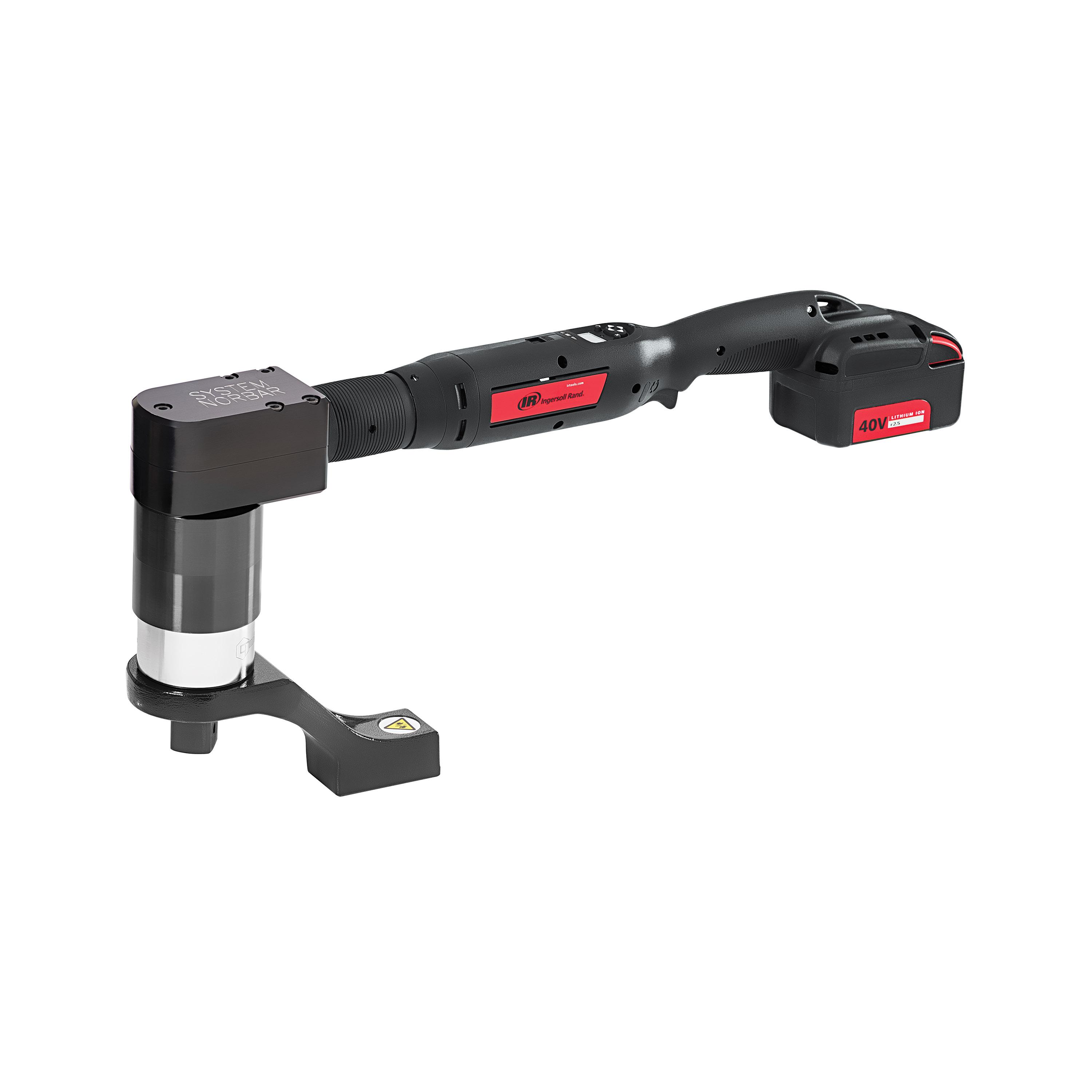

Ingersoll Rand QXX5A72T1080PS16 | 40V Cordless Torque Multiplier, 160 - 797 ft lbs, 1'', 802.15.4 and Bluetooth

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Ingersoll Rand QXX5A72T1080PS16 | 40V Cordless Torque Multiplier, 160 - 797 ft lbs, 1'', 802.15.4 and Bluetooth

Rating:
(0)No Reviews yet
Call for Price
Ingersoll Rand

Details

Ingersoll Rand 40V Cordless Angle Torque Multiplier, 160 - 797 ft lbs, 1 in. square drive

40V Cordless Angle Torque Multiplier, 160 - 797 ft lbs, 1 in. square drive, model QXX5A72T1080PS16 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Cordless Angle Torque Multiplier available elsewhere for a lower price? Contact Customer Service about price matching!

QXX5A72T1080PS16 by Ingersoll Rand

The QXX5A72T1080PS16 Cordless Angle Torque Multiplier runs on a 40V Lithium-Ion Battery. This Ingersoll Rand Angle Head Cordless Angle Torque Multiplier also runs on a 1 in. square drive.

With a free speed of 19 rpm, the QXX5A72T1080PS16 Cordless Angle Torque Multiplier has a torque range of 160 - 797 ft lbs. The QXX5A72T1080PS16 commiciates via Wireless connection.

The QXX5A72T1080PS16 Cordless Angle Torque Multiplier communicates via Wireless

Note: BL4011 battery required to use the QXX5A72T1080PS16

Meet the tool that’s taking torque to the next level - Ingersoll Rand's new QX Series 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Integrates with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller
  • Share tightening data via email for post processing verification through the free INSIGHT Connect app
  • Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app
  • Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
  • Longevity in harsh applications with steel reinforced motor housing
  • Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating
  • Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery

Technical Information

Technical Specifications

Technical Specifications

SKU: QXX5A72T1080PS16-IR
Manufacturer Ingersoll Rand
Model QXX5A72T1080PS16
Stock CodeC
Communication 802.15.4 and Bluetooth
Drive size 1'' square
Drive Type Square
Free Speed (RPM) 19
Length (In) 10.4
Length (mm) 264
Series QXM
Torque Range (Ft Lbs) 160 - 797
Torque Range (Nm) 216 - 1080
Type Cordless Torque Multiplier
Voltage40V
Weight16 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!
