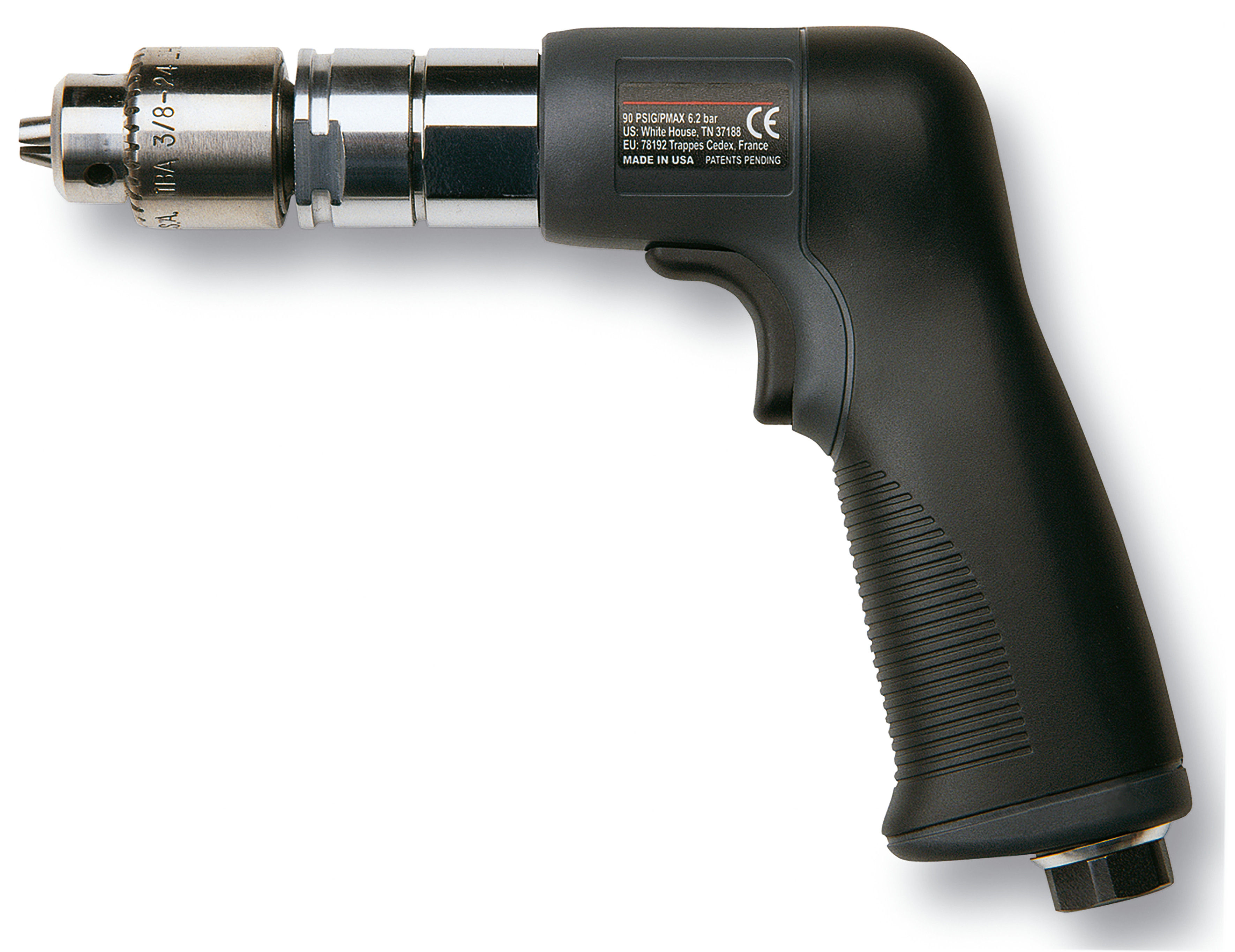

QP381D | Air Drill, Pistol Grip, 1/4 in. chuck, 3800 rpm
Overview
Ingersoll Rand Air Drill, Pistol Grip, 1/4 in. chuck, 3800 rpm
Air Drill, Pistol Grip, 1/4 in. chuck, 3800 rpm, model QP381D by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Drill available elsewhere for a lower price? Contact Customer Service about price matching!
QP381D by Ingersoll Rand
The QP381D Air Drill has a 1/4 in. chuck and can run up to 3800 rpm
Features & Benefits
- Variable speed control allows slow starting and high speed for fast drilling
- Excellent power-to-weight ratio gets the job done with less fatigue
- Maximum TIR of .005' ensures precision holes for critical applications
Technical Specifications
SKU: QP381D-IR
Power Source
Air Powered
Sound Pressure
77.6 / 88.6
Vibration Level
3.3
Air Inlet Size
1/4" NPT
Min Hose Size
1/4
Air Pressure (PSI)
90
Max Torque (ft-lb)
1.1
Max Torque (in-lb)
13
Max Torque (Nm)
1.5
Free Speed (RPM)
3800
Vibration Uncertainty
0.8
Power (HP)
0.25
Chuck Type
Keyed Chuck
Technical Documents
- Ingersoll Rand QP Series Air Drill Product Information (PDF)
- Ingersoll Rand QP Series Air Drill Parts Breakdown (PDF)
- Ingersoll Rand Air Drill Safety Information (PDF)
- Ingersoll Rand QP Series Air Drill Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
