7802AKC | Air Drill, Pistol Grip, keyless, 3/8 in. chuck, 2000 rpm
Overview

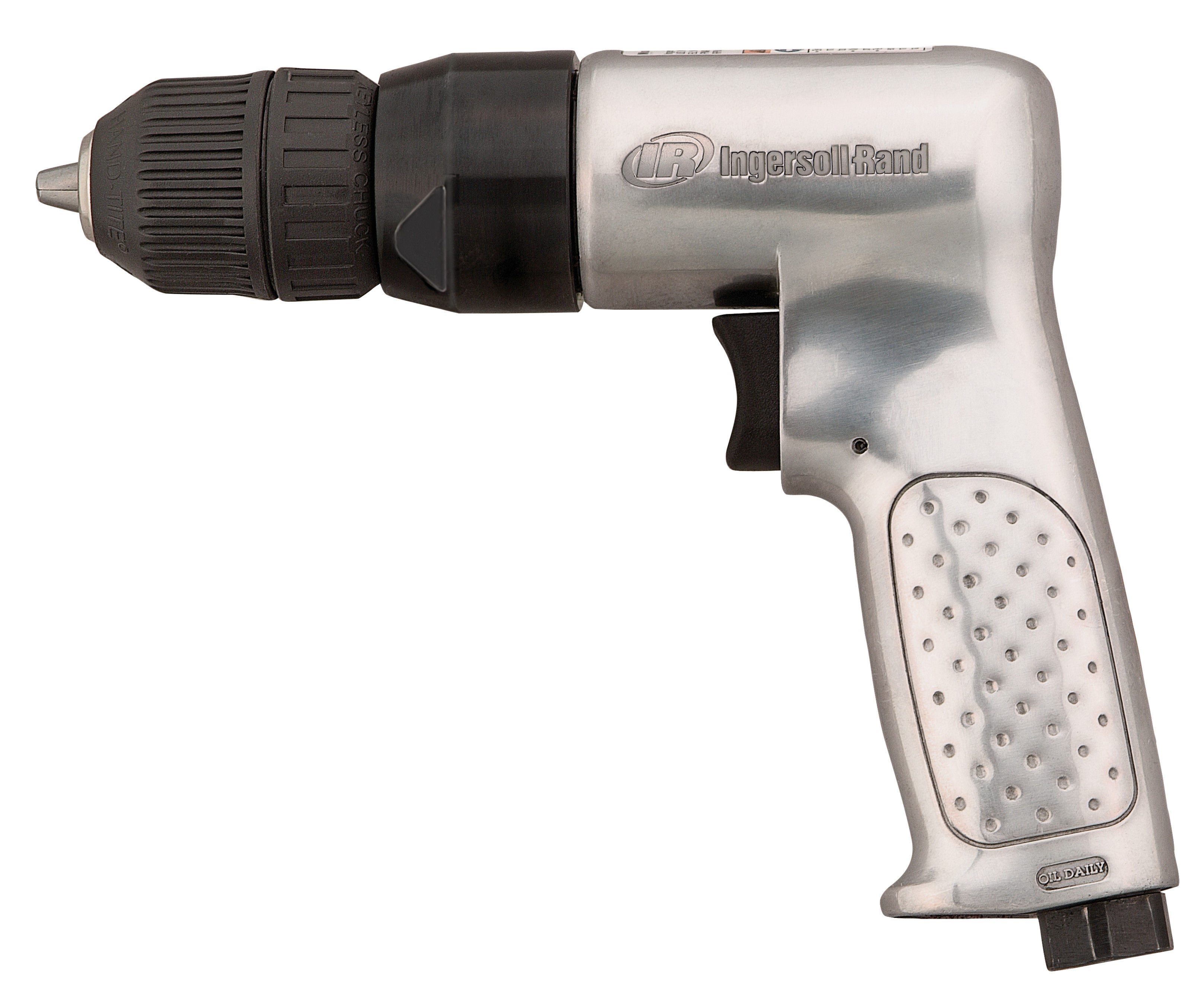

Ingersoll Rand Air Drill, Pistol Grip, keyless, 3/8 in. chuck, 2000 rpm
Air Drill, Pistol Grip, keyless, 3/8 in. chuck, 2000 rpm, model 7802AKC by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Drill available elsewhere for a lower price? Contact Customer Service about price matching!
7802AKC by Ingersoll Rand
The 7802AKC Air Drill has a 3/8 in. chuck and can run up to 2000 rpm
Technical Specifications
SKU: 7802AKC-IR
Power Source
Air Powered
Sound Pressure
83
Vibration Level
2.8
Duty Rating
Industrial Duty
Air Inlet Size
1/4" NPT
Min Hose Size
3/8
Air Pressure (PSI)
90
Air Consumption @ Load
26
Avg Air Consumption
4
Max Torque (ft-lb)
0.2
Max Torque (in-lb)
2.7
Max Torque (Nm)
0.3
Free Speed (RPM)
2000
Exhaust Direction
Handle
Power (HP)
0.5
Collet Size
3/8"-24 Thread
Chuck Type
Keyless Chuck
Technical Documents
- Ingersoll Rand 7803 7802 Air Drill Product Information (PDF)
- Ingersoll Rand 7803A 7802A Air Drill Parts Breakdown (PDF)
- Ingersoll Rand Air Drill Safety Information (PDF)
