Q120P4 | Air Pulse Tool, Non Shut Off, 1/2 in. square drive, 70 - 95 ft lbs
Overview
Ingersoll Rand Air Pulse Tool, Non Shut Off, 1/2 in. square drive, 70 - 95 ft lbs
Air Pulse Tool, Non Shut Off, 1/2 in. square drive, 70 - 95 ft lbs, model Q120P4 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Pulse Tool available elsewhere for a lower price? Contact Customer Service about price matching!
Q120P4 by Ingersoll Rand

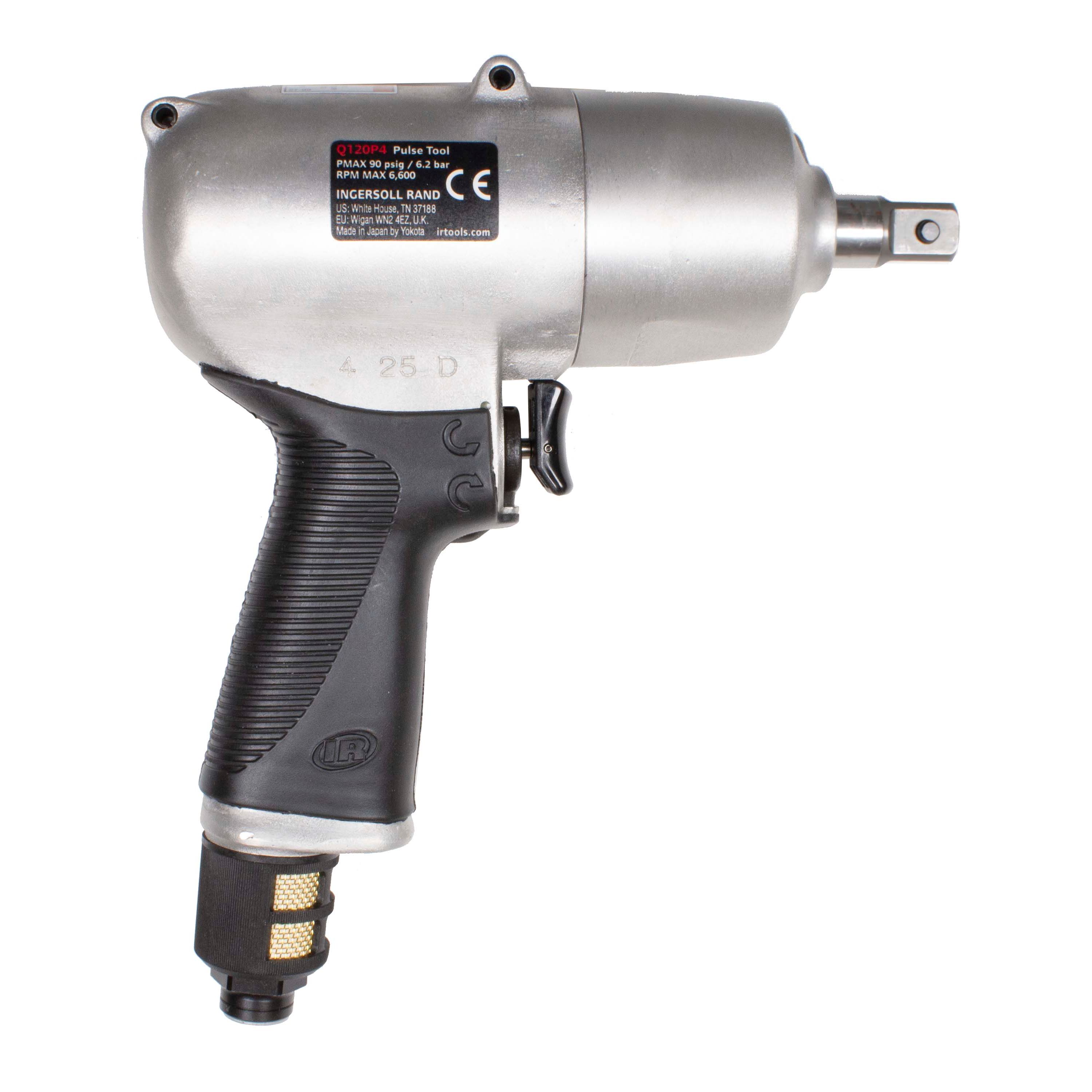

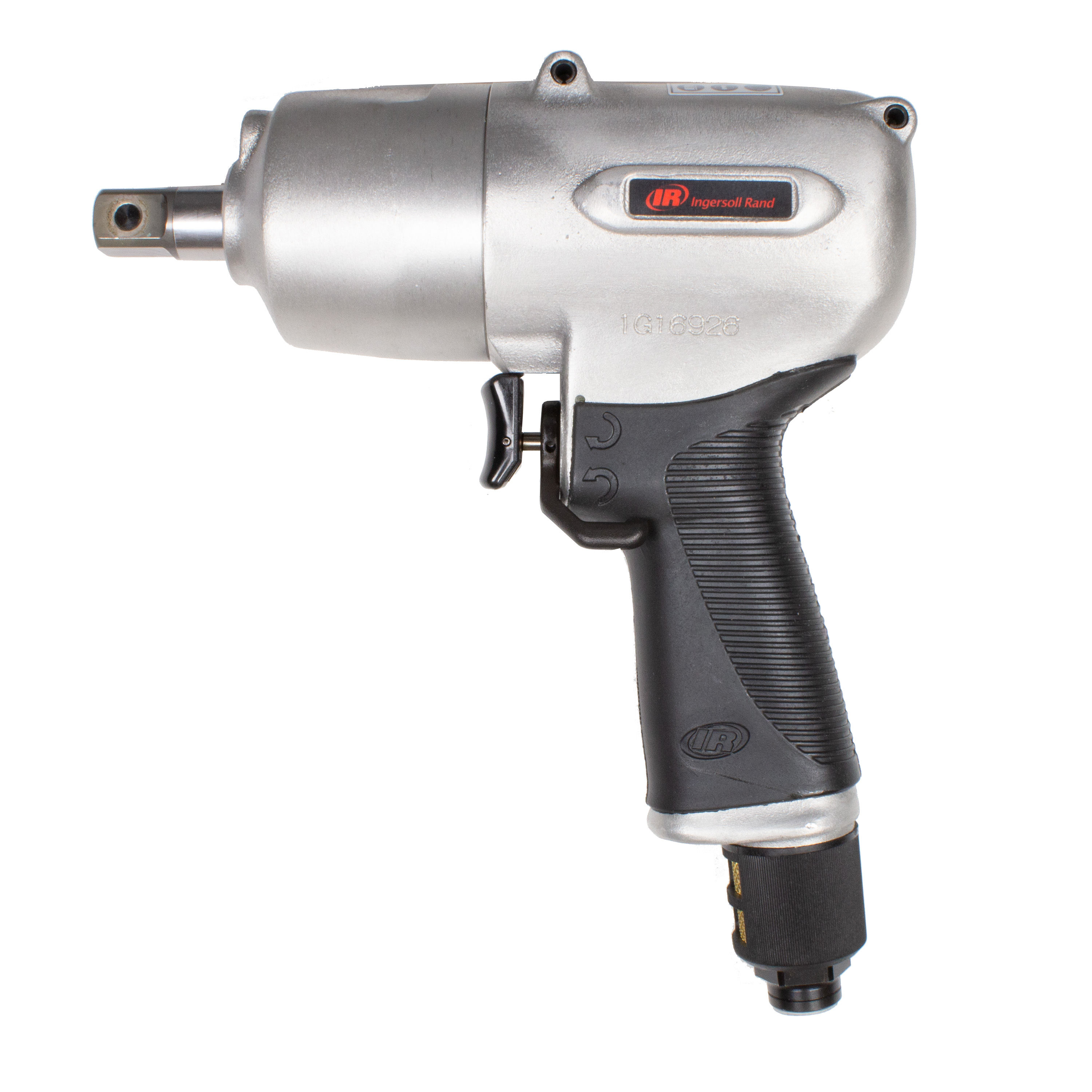

The Ingersoll Rand Q120P4 is a Pistol Grip, Non Shut Off Air Pulse Tool. This Air Pulse Tool has a 1/2 in. square drive and can get up to 6600 rpm.
The Ingersoll Rand Q120P4 Air Pulse Tool can wield M12 size fasteners. With a torque range of 70 - 95 ft lbs, along with a potential max speed of up to 6600 rpm, the Q120P4 is a formidable Air Pulse Tool
Features & Benefits
- High-Speed, reactionless fastening
- Consistent torque with fully customizeable operator feedback
- Low vibration and noise and reactionless one handed operation
Technical Specifications
SKU: Q120P4-IR
Power Source
Air Powered
Sound Pressure
81 / 92
Vibration Level
4.6
Air Inlet Size
1/4" NPT
Min Hose Size
3/8
Air Pressure (PSI)
90
Retainer
Pin Detent
Drive Size
1/2
Max Torque (ft-lb)
96
Max Torque (in-lb)
1151
Max Torque (Nm)
130
Free Speed (RPM)
6600
Tracking
No Wireless Functionality
Drive Type
Square
Vibration Uncertainty
0.9
Technical Documents
Ingersoll Rand Pulse Tool Systems Brochure (PDF)- Ingersoll Rand Air Pulse Tool Safety Information (PDF)
- Ingersoll Rand Pulse Tool Systems Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
