500A | Air Pulse Tool, Non Shut Off, 3/8 in. square drive, 21 - 29 ft lbs
Overview
Ingersoll Rand Air Pulse Tool, Non Shut Off, 3/8 in. square drive, 21 - 29 ft lbs
Air Pulse Tool, Non Shut Off, 3/8 in. square drive, 21 - 29 ft lbs, model 500A by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Pulse Tool available elsewhere for a lower price? Contact Customer Service about price matching!
500A by Ingersoll Rand

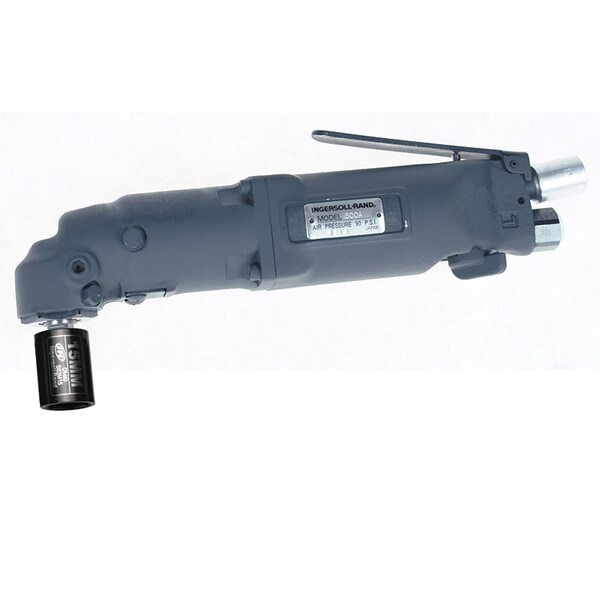

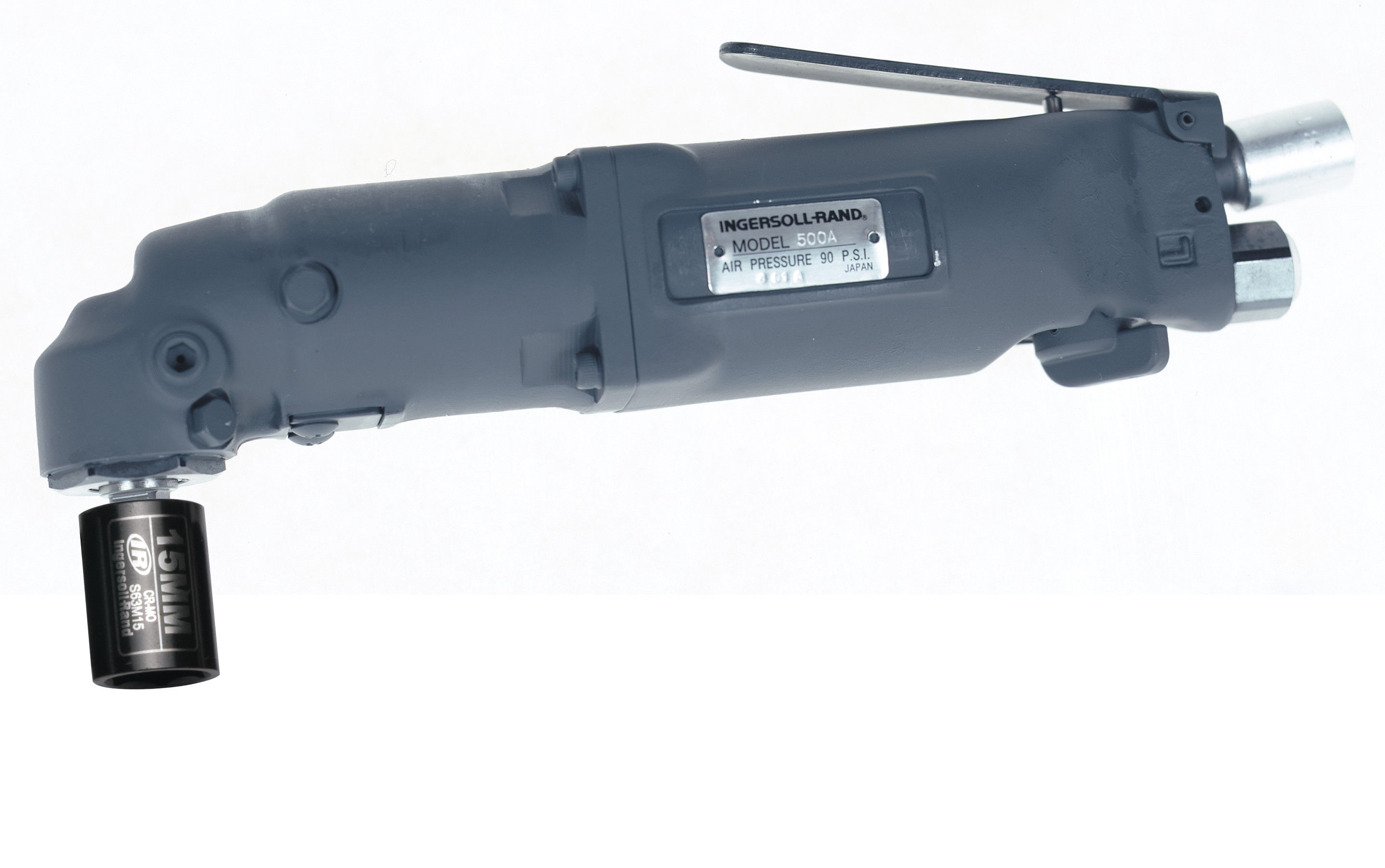

The Ingersoll Rand 500A is a Angle Head, Non Shut Off Air Pulse Tool. This Air Pulse Tool has a 3/8 in. square drive and can get up to 7000 rpm.
The Ingersoll Rand 500A Air Pulse Tool can wield M6 - M8 size fasteners. With a torque range of 21 - 29 ft lbs, along with a potential max speed of up to 7000 rpm, the 500A is a formidable Air Pulse Tool
Features & Benefits
- High-Speed, reactionless fastening
- Consistent torque with fully customizeable operator feedback
- Low vibration and noise and reactionless one handed operation
Technical Specifications
Model
500A
Stat 1
7,000 rpm
Stat 2
12.0 - 30.0 Ft Lb
Drive size
3/8" square
Manufacturer
Ingersoll Rand
Length (mm)
267
Length (In)
10.5
Min Torque (Ft Lb)
21
Max Air Consumption (cfm)
11
Free Speed (RPM)
7000
SKU
500A
Stock Code
3
Air Inlet
1/4 in.
Fastener Size
M6 - M8
Style
Angle Head
Clutch Type
Non Shut Off
Sound Level (dBA)
76 - 83
Max Torque (In Lb)
362.9
Max Torque (Ft Lb)
29
Min Torque (Nm)
29
Max Torque (Nm)
39
UPC
00663023006468
Max Free Speed (rpm)
7000
Weight (lbs)
3.3
Drive Type
3/8 in. square
Weight (kg)
1
Technical Documents
Ingersoll Rand Air Impulse Wrenches Product Information (PDF)- Ingersoll Rand Air Pulse Tool Safety Information (PDF)
- Ingersoll Rand Pulse Tool Systems Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
