2A2SA | Chipping Hammer, 2300 bpm, 0.68 Round shank, 2 in. stroke
Overview

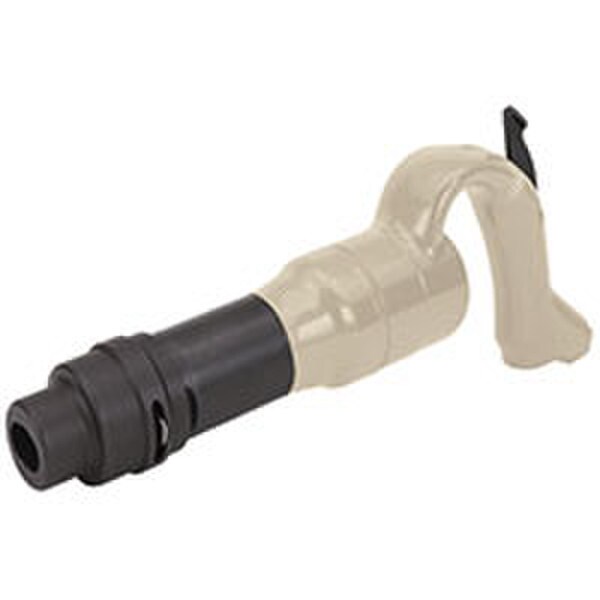

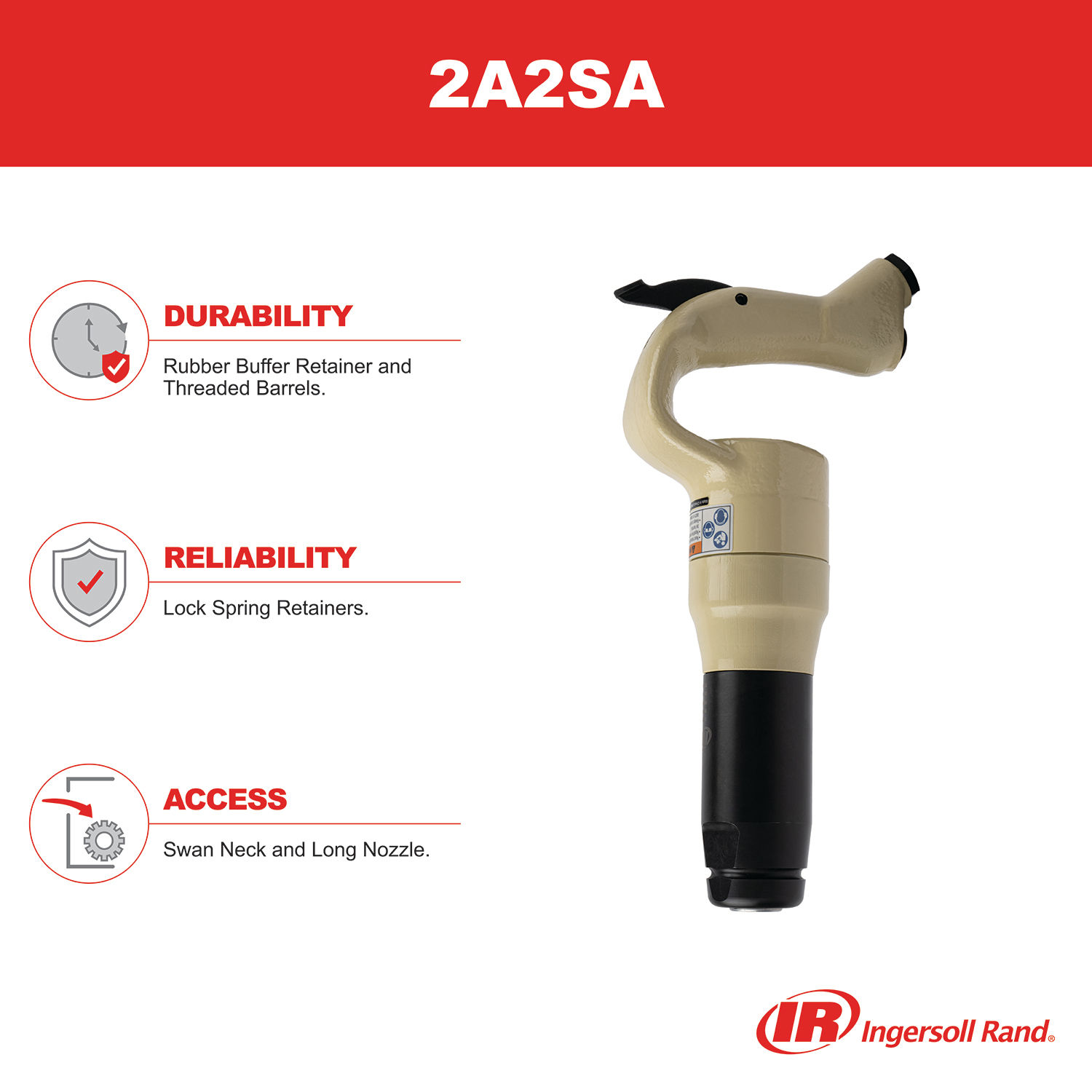

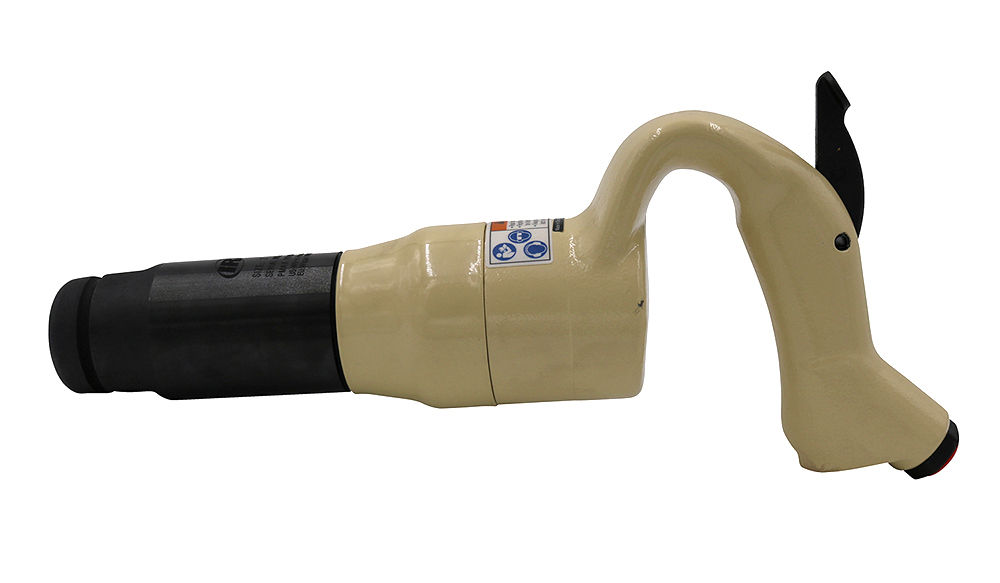

Ingersoll Rand Chipping Hammer, 2300 bpm, 0.68 Round shank, 2 in. stroke
Chipping Hammer, 2300 bpm, 0.68 Round shank, 2 in. stroke, model 2A2SA by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Chipping Hammer available elsewhere for a lower price? Contact Customer Service about price matching!
2A2SA by Ingersoll Rand
At 2300 blows per minute, the G1621 Chipping Hammer has a 1-1/8 in. Bore and 2 in. stroke.
Technical Specifications
SKU: 2A2SA-IR
Power Source
Air Powered
Sound Pressure
109.8 / 120.8
Vibration Level
18
Duty Rating
Industrial Duty
Air Inlet Size
3/8" NPT
Min Hose Size
1/2
Air Pressure (PSI)
90
Air Consumption @ Load
28
Retainer
Lock-spring (Plain Arrow)
Vibration Uncertainty
5.4
Technical Documents
- Ingersoll Rand Series A and W Air Hammer Product Information (PDF)
- Ingersoll Rand Series A and W Air Hammer Parts Breakdown (PDF)
- Ingersoll Rand Air Percussive Tool Safety Information (PDF)
- Ingersoll Rand Series A and W Air Hammer Maintenance Information (PDF)
- Ingersoll Rand A and W Series Chipping Hammers Parts Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
