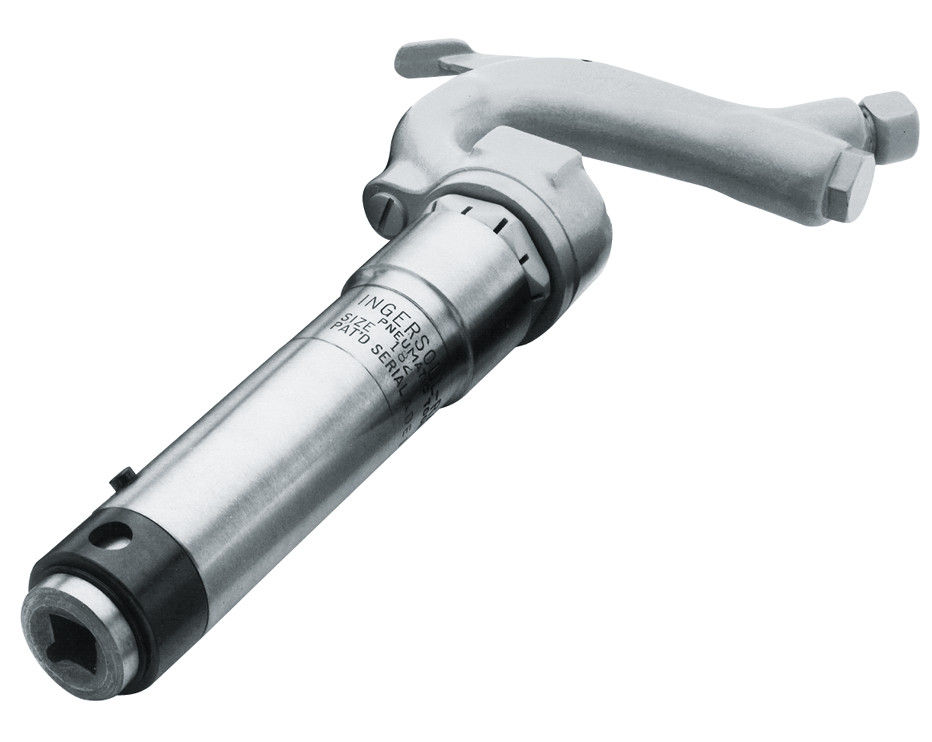

182G | Chisel Scaler, Inline, 1-1/16 in. stroke, 4000 bpm
Overview
Ingersoll Rand Chisel Scaler, Inline, 1-1/16 in. stroke, 4000 bpm
Chisel Scaler, Inline, 1-1/16 in. stroke, 4000 bpm, model 182G by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Chisel Scaler available elsewhere for a lower price? Contact Customer Service about price matching!
182G by Ingersoll Rand
The 182G Chisel Scaler, has an Inline design. With a 1-1/16 stroke, this Ingersoll Rand Chisel Scaler can go up to a speed of 4000 rpm
Features & Benefits
- Adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
- Rubber faced throttle valve to ensure positive sealing of internal components
- Compact, well balanced and low vibration maximize operators comfort
Technical Specifications
SKU: 182G-IR
Model
182G
Type
Chisel Scaler
Manufacturer
Ingersoll Rand
Length (In)
12.81
SKU
182G
Stock Code
3
Style
Inline
UPC
00663024006245
Weight (lbs)
5.31
Handle Type
Grip
Bore Diameter (in)
0.94
Blows Per Minute (bpm)
4000
Series
182
Length (in)
12.81
Piston Stroke (in)
1.06
Bore (in)
0.94
Vibration (m/s2)
8.5
Air Inlet NPT (in)
1/4
Min Hose Size (mm)
8
Air Cons. @ Load (L/min)
13
Technical Documents
Ingersoll Rand 172 182 Series Scaler Product Information (PDF)- Ingersoll Rand 172 182 Series Scaler Parts Breakdown (PDF)
- Ingersoll Rand Air Percussive Tool Safety Information (PDF)
- Ingersoll Rand 172 182 Series Scaler Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
